EXPERTFOLD 50 | 80 | 110 - Folder-gluer

Specifications

Processed materials (1)
Carton board max 800 g/m2 .049 in
Corrugated flute type N, F, E
Capability
Speed 20 to 450 m/min 66 to 1476 ft/min
Inching speed 20 m/min 66 ft/min
Thickness of folded box max 12 mm 0.47 in

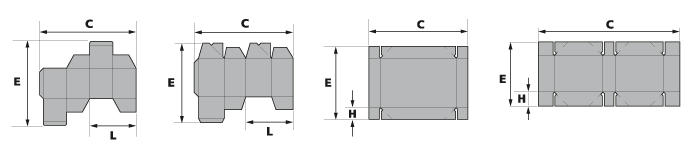

Box sizes
Straight line "C" 126 to 500 | 800 | 1100 mm 4.96 to 19.69 | 31.50 | 43.31 in
Straight line "E" 60 to 800 | 800 | 800 mm 2.36 to 31.50 | 31.50 | 31.50 in
Straight line "L" 60 to 235 | 385 | 535 mm 2.36 to 9.25 | 15.16 | 21.06 in
Crash-lock bottom "C" 146 to 500 | 800 | 1100 mm 5.75 to 19.69 | 31.50 | 43.31 in
Crash-lock bottom "F" 60 to 800 | 800 | 800 mm 2.36 to 31.50 | 31.50 | 31.50 in
Crash-lock bottom "L" (2) 70 to 235 | 385 | 535 mm 2.76 to 9.25 | 15.16 | 21.06 in
4-corner "C" (2) 120 to 800 | 1100 mm 4.72 to 31.50 | 43.31 in
4-corner "E" (2) 130 to 800 | 800 mm 5.12 to 31.50 | 31.50 in
4-corner "H" (2) 20 to 150 | 150 mm 0.79 to 5.91 | 5.91 in
6-corner "C" (2) 250 to 800 | 1100 mm 9.84 to 31.50 | 43.31 in
6-corner "E" (2) 130 to 800 | 800 mm 5.12 to 31.50 | 31.50 in
6-corner "H" (2) 30 to 114 | 150 mm 1.18 to 4.49 | 5.91 in
Dimensions & weight
Length 12.30 l 13.80 l 15.35 m 40.35 l 45.28 l 50.36 ft
Width 1.60 l 1.90 l 2.20 m 5.25 l 6.23 l 7.22 ft
Height 1.90 m 6.23 ft
Net weight 6 t 6.6 US ton

(1) Depending on material properties

(2) EXPERTFOLD 80 | 110
