MASTERFOLD 75 | 110 - Folder-gluer

Specifications

Processed materials (1)
Paper max 800 g/m2 .049 in
Corrugated flute type N, F, E
Capability
Speed 20 to 700 m/min 66 to 2297 ft/min
Inching speed 15 m/min 49 ft/min
Thickness of folded box max 15 mm 0.59 in

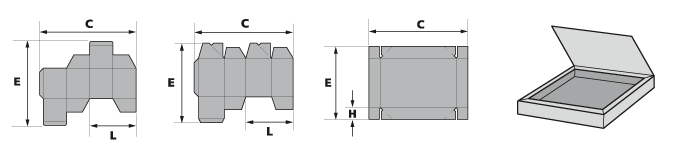

Box sizes
Straight line "C" 76 to 750 | 1100 mm 2.99 to 29.53 | 43.31 in
Straight line "E" 60 to 800 | 800 mm 2.36 to 31.50 | 31.50 in
Straight line "L" 35 to 360 | 535 mm 2.36 to 14.17 | 21.06 in
Crash-lock bottom "C" 146 to 750 | 1100 mm 5.75 to 29.53 | 43.31 in
Crash-lock bottom "F" 60 to 800 | 800 mm 2.36 to 31.50 | 31.50 in
Crash-lock bottom "L" 70 to 360 | 535 mm 2.76 to 14.17 | 21.06 in
4-corner "C" 130 to 1100 mm 5.12 to 43.31 in
4-corner "E" 110 to 900 mm 4.33 to 35.43 in
4-corner "H" 20 to 200 mm 0.79 to 7.87 in
6-corner "C" 250 to 1100 mm 9.84 to 43.31 in
6-corner "E" 130 to 900 mm 5.12 to 35.43 in
6-corner "H" 30 to 155 mm 1.18 to 6.10 in
Dimensions & weight
Length 14.77 l 16.76 l 18.84 m 48.46 l 54.99 l 61.81 ft
Width 2.06 l 2.40 l 2.70 m 6.76 l 7.87 l 8.86 ft
Height 2.30 m 7.22 ft
Net weight 10.4 l 14.7 t 11.5 l 16.2 US ton

(1) Depending on material properties
