DIGITAL MASTER 340 - Modular label press

100% modularity and upgradability. ​The perfect fit for your production floor and future-proof to protect your investment​

From a digital-only press to an All-in-line label production, the modular architecture of the DIGITAL MASTER series enables you to design your own configuration for your specific production requirements. ​Combine digital and analogue modules in infinite configurations: ​

  • Digital printing module. 4 or 6 colors, with or without digital white​w
  • Priming flexo module. For handling the most demanding substrates​
  • UV flexo modules. Full integration between UV flexo and digital printing, providing effortless switch from short to long runs with minimum ink and material waste​
  • Embellishment module. Varnishing, tactile effects, holographic effects, cold foil glue applied, UV lamination, security printing, and more​
  • Die-cutting module. Fully automated, high speed semi-rotary die-cutting with a repeat range up to 17"; rotary die-cutting for full converting options such as embossing and sheeting​
  • Modules for special applications. For multi-layer labels, back-side printing, coupon and others​.

Any module can be added over time and on-site, providing the opportunity to upgrade on-site at a later stage according to the evolution of your requirements.

1. Pure Digital configuration. High quality digital label production​

Unwinder - Digital Printing Unit - Quality control system - Rewinder​

  • Offline finishing ​
  • Industrial, automotive, food (indirect) & beverage, personal care, chemicals, household, para-pharma.



2. Enhanced Digital configuration. High application and substrate versatility

Unwinder - Flexo module - Digital Printing Unit - Flexo module - Quality control system - Rewinder - Combo laminator & col dfoil

  • Offline finishing
  • Increased substrate range / look and feel, general labelling, food (indirect), household & industrial, monolayer (e.g. wrap around), inline priming, varnish (spot, flood), variable data, spot colors, flexo white, cold foil.



3. All-in-One, All-in-line configuration. End-to-end label production

Unwinder - Flexo module - Digital Printing Unit - Flexo module - Quality control system - Semi-rotary die-cutting - Rewinder - Combo laminator & cold foil

  • Inline finishing
  • Enhanced digital for finished labels
  • Fast turn-around-time, fewer production steps, less headcounts.

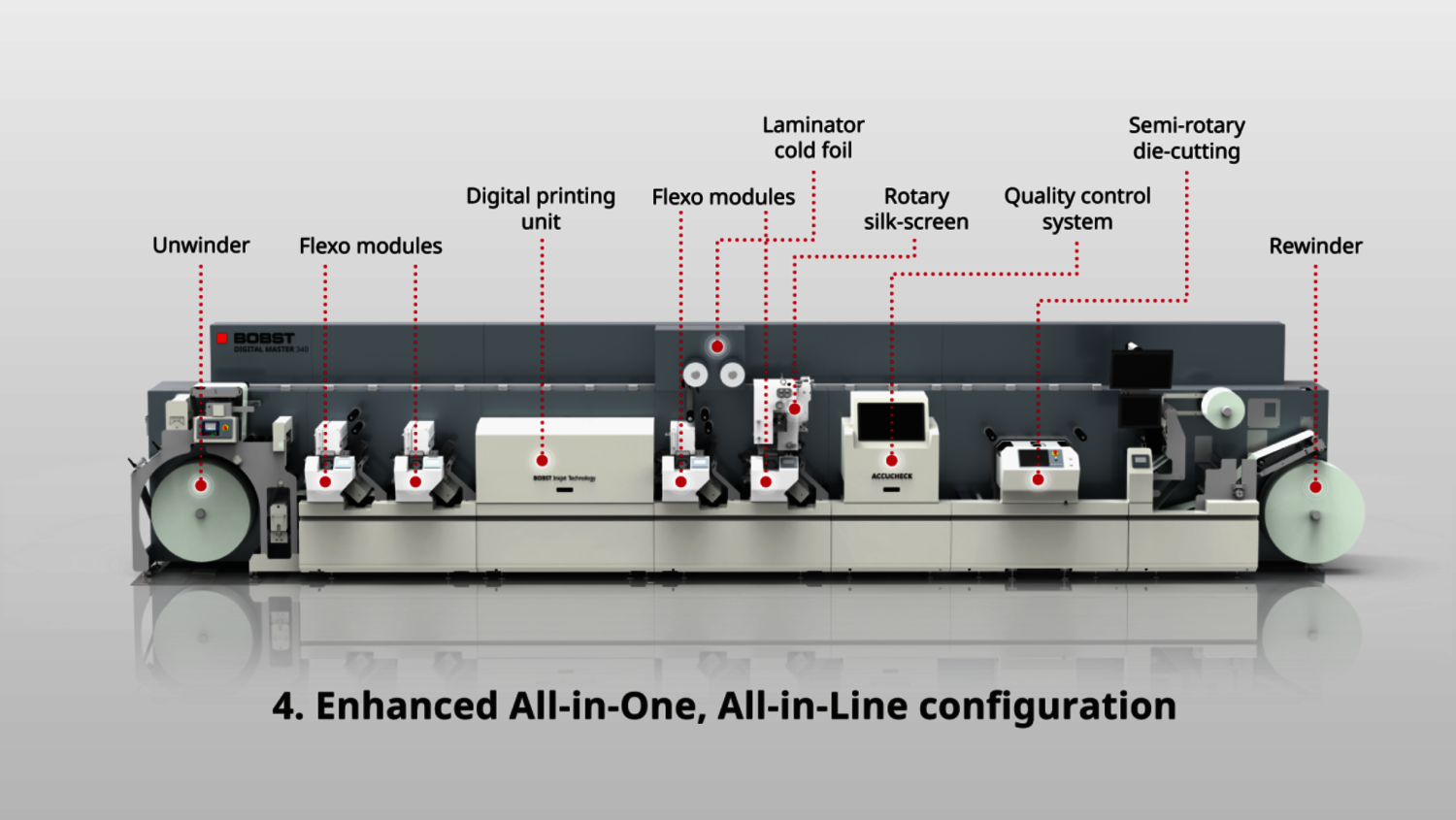

4. Enhanced All-in-One, All-in-line configuration. Ultimate flexibility and versatility in end-to-end label production

Unwinder - 2 Flexo modules - Digital Printing Unit - 2 Flexo modules - Quality control system - Semi-rotary die-cutting - Rewinder - Combo laminator & cold foil - Rotary silk-screen

  • Inline finishing
  • Healthcare and cosmetics, premium food & beverage (incl. Wine), automotive, household, industrial, etc.

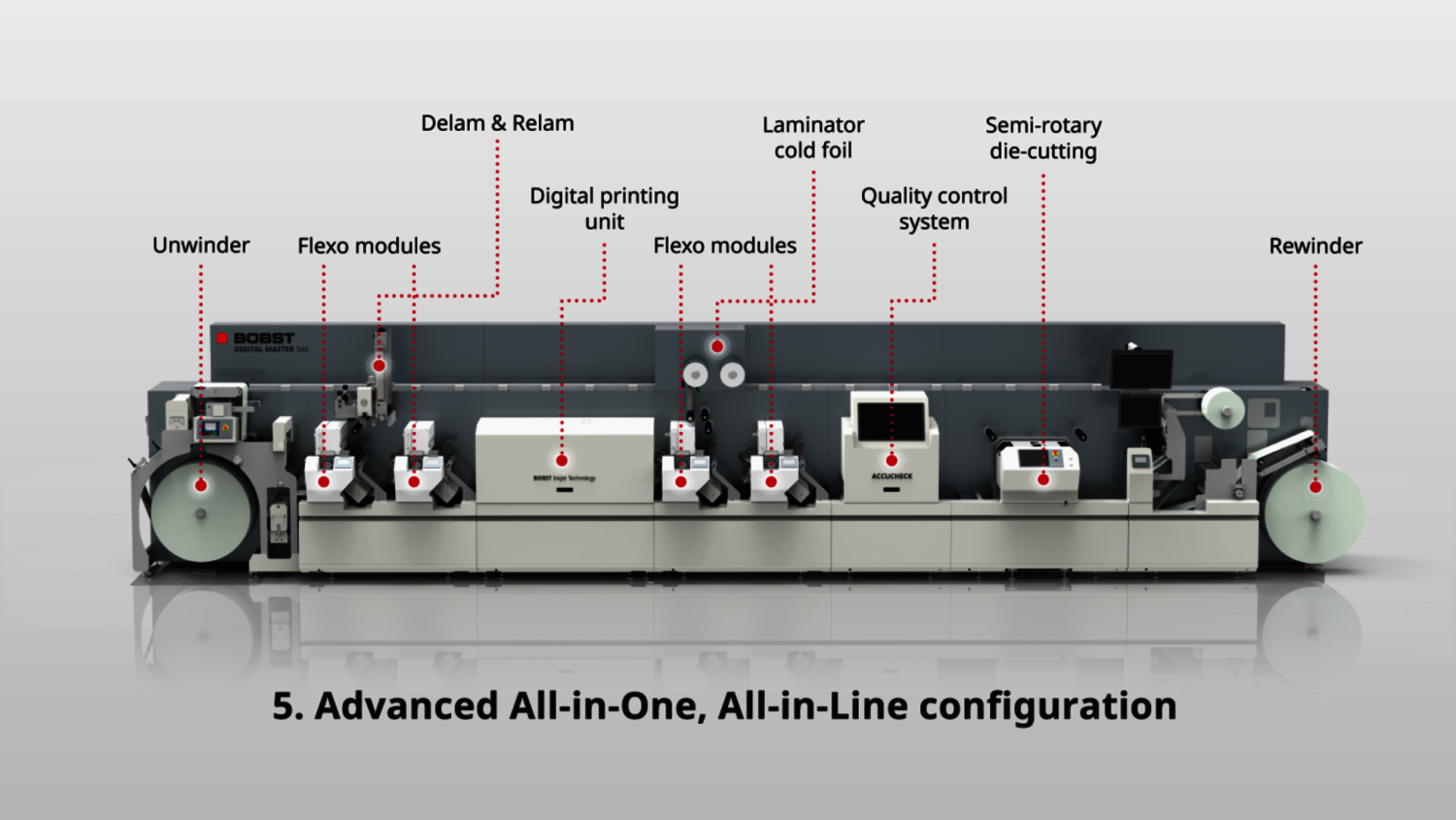

5. Advanced All-in-One, All-in-line configuration. High versatility including special applications

Unwinder - 2 Flexo modules - Digital Printing Unit - 2 Flexo modules - Quality control system - Semi-rotary die-cutting - Rewinder - Combo laminator & coldfoil - Rotary silk-screen

  • Inline finishing
  • One-pass booklet labels, multilayer, special applications, multi-part tracking
  • Fast changeovers.
