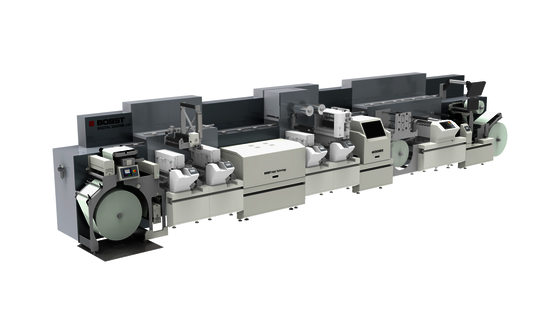

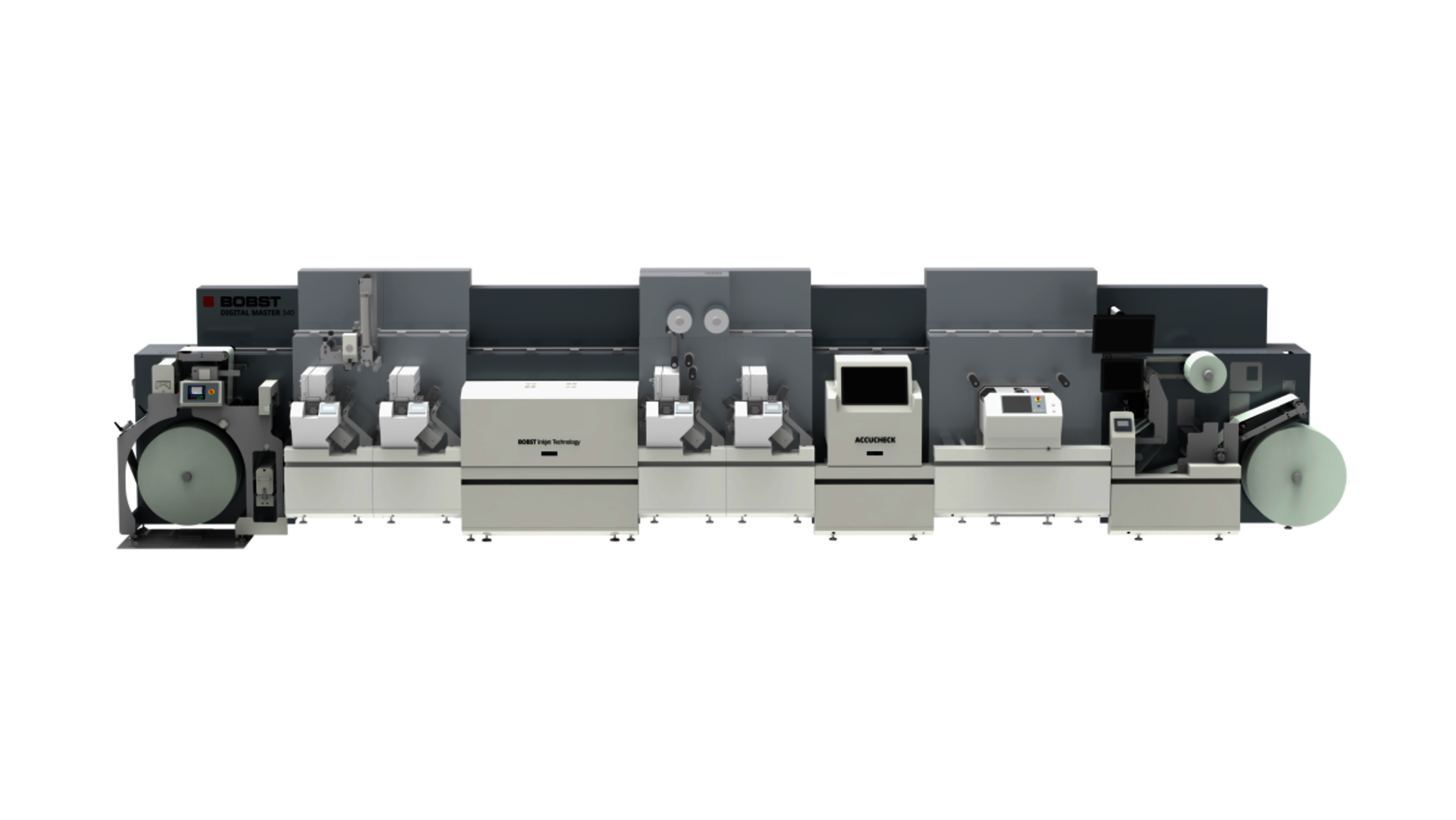

DIGITAL MASTER 510 - Modular label press

100% modularity and upgradability

• Infinite configurations: from digital-only printing to an All-in-line label production​
• Design your own solution choosing from all features available on in-line flexo machine and access 100% on-site upgradability to make your initial choice future-proof​
• Application and substrate versatility.

Exceptional productivity and quality

Maximize output and minimize turnaround times and waste​

• Highest inkjet print quality (1200 x 1200 dpi) and color consistency at the highest speeds (100 m/min) job after job​
• Integrated maintenance automation features ​
• Fully automated flexo modules​
• Embellishment and converting solutions​
• Available also in 510 mm web width for additional productivity​.

Inline inspection and calibration with BOBST ACCUCHECK

BOBST ACCUCHECK system is fully integrated in the DIGITAL MASTER series to deliver​ automatic calibration and inspection.

Calibration:

• Automatic head stitching
• Automatic color to color calibration
• Fast and automatic densities uniformization
• Automatic detection and compensation of any bad nozzle

Inspection:

• 100% quality inspection at full speed
• Full integration in the press workflow
• Zero setup time
• Job queue synchronization with the digital printing unit

Perfect integration. ONE press, ONE workflow, ONE operator, ONE supplier, ONE service

• Ease of operation. A press designed for one single operator​
• Easy maintenance and serviceability​
• Cloud connectivity and integration of standard protocols with MIS systems.

Complete default configuration on every press for high productivity and consistent quality ​

• Jumbo roll rewinder & unwinder​
• Web cleaner​
• Corona Unit​
• Web-guide​
• Simplex mark reader for second pass printing​
• Splice detector​
• Chilled roller
• Maintenance Automation Device​
• BOBST ACCUCHECK
• BOBST Digital Front End server for fast data processing​.
