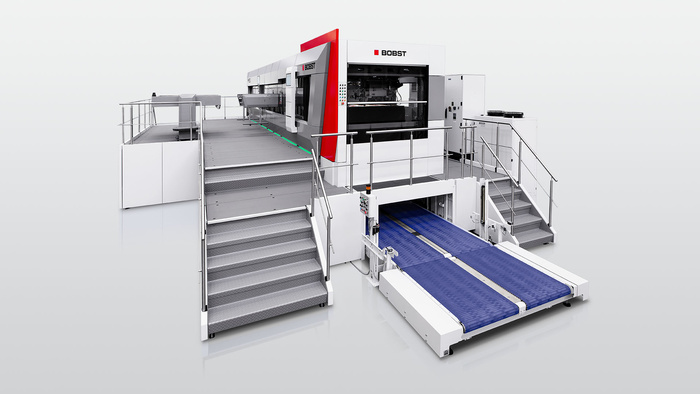

MASTERCUT 165 PER

Specifications

Processed materials (1)
Carton board 300 to 2000 g/m2 .02 to .28 in
Corrugated board 0.5 to 7 mm .017 to .60 in
Capability
Sheet size max min 1650 x 1300 mm
600 x 520 mm x in
x in
Speed (2) 7500 s/h
Cutting force (2) 5.5 MN 618 US ton
Converting
Height of cutting rules 23.8 mm 0.937 in
Pile height
Feeder (3) max 2000 mm 78.75 in
Feeder, with Non-Stop max 1200 mm 47.24 in
Delivery (3) max 2000 mm 78.75 in
Dimensions & weight
Length 17.70 m 58.10 ft
Width 9.75 m 32 ft
Height 3.10 m 10.20 ft

(1) Depending on material properties

(2) Optional

(3) (...) Heights with maximum machine elevation
