NOVAFOLD 106 | 145 | 170 - Folder-gluer

ACCUFEED

– Integrated BOBST blank aligner, ensuring perfect folding quality
– Alignment left or right
– Feeds all types of material
– Sets in 25% of the time of other comparable feeders on the market, considerably shortening makeready times

Prebreaker

– High speed, variable angle prebreaking with extra-long module
– Ensures reliable and precise opening of the finished product
– Lifting device allowing quick and easy set-up
– Extra wide lower belts and driven upper belts for regular blank transport, even for heavy materials

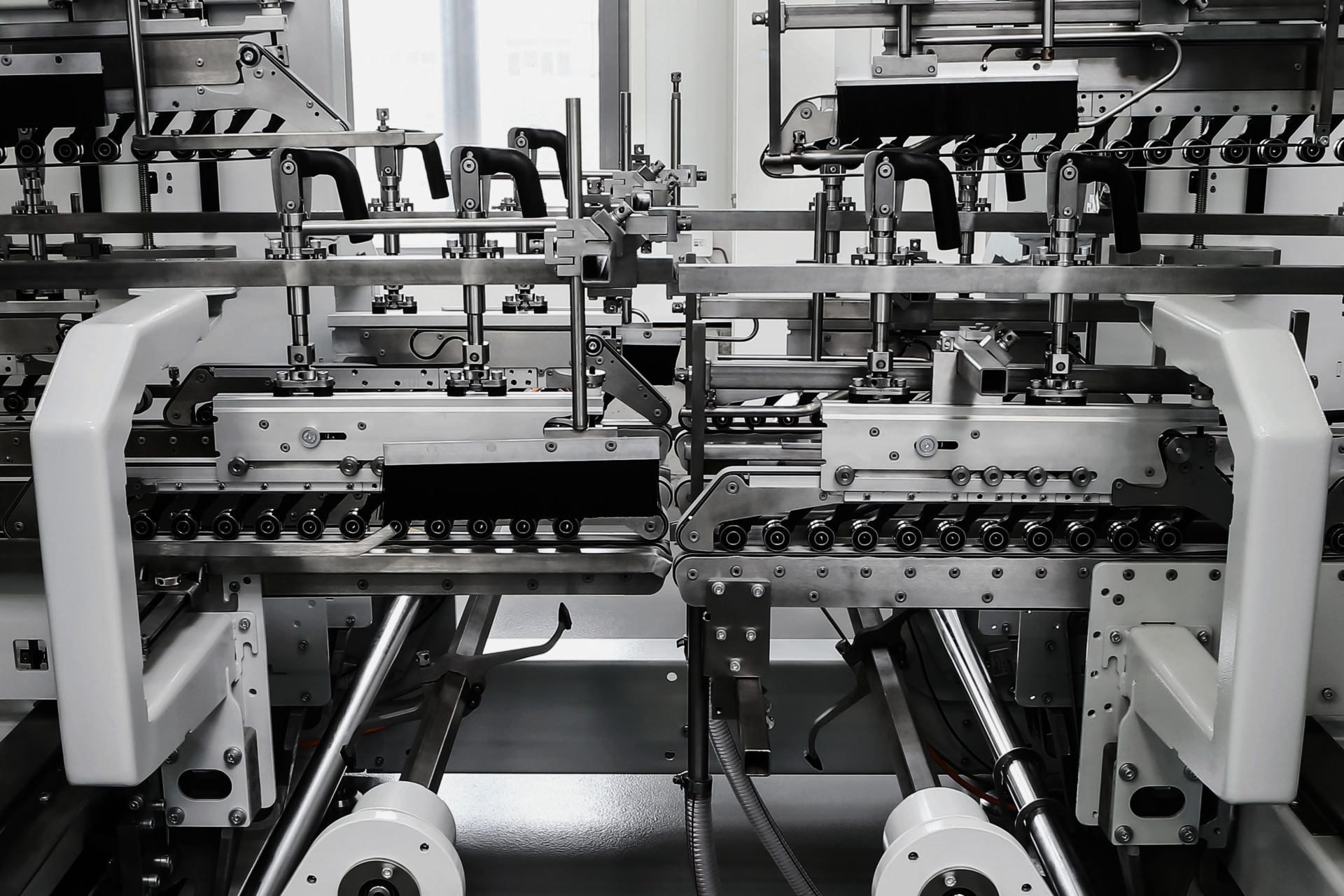

Crash-lock module

– Motorized lifting frames for fast and easy set-ups
– Quick setting, for short makeready and changeover
– Allows a huge range of box variants to be run
– Prebreaks large boxes and provides a location for additional devices

4 & 6-corner devices

– Runs a large range of box types
– High speed and high quality folding with modulated hook trajectory
– Easy setting with electronically controlled rotary hooks
– Tilting frame adjusts to flap size
– CUBE³ controlled, allowing saving and retrieval of settings

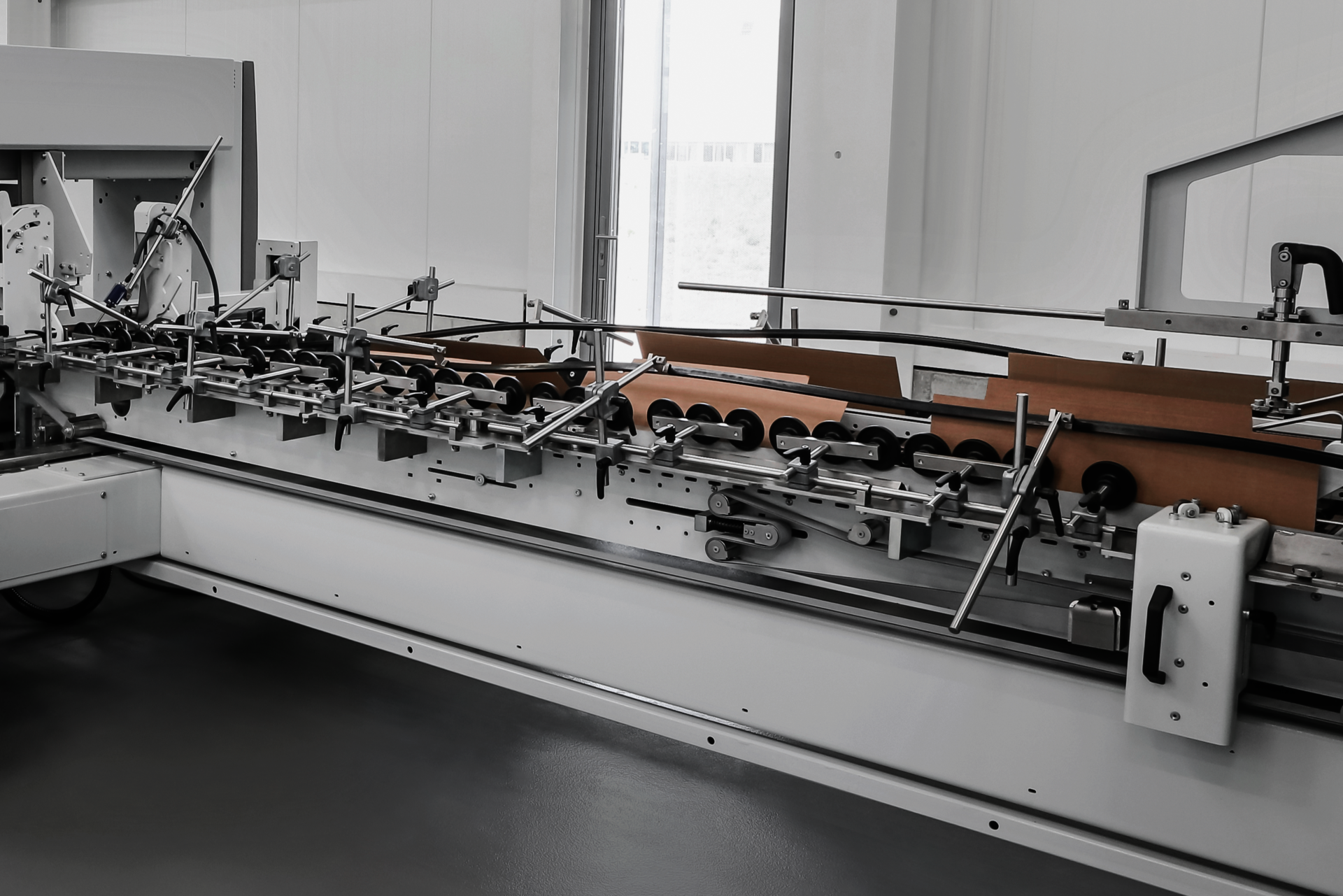

Folding

– Crease relief device for more natural, smooth and precise folding
– Crease control device ensuring a perfect fold
– 5-meter long folding section for perfect gap and reduced fishtailing
– Driven upper belts ensure more consistent transport, especially for heavy blanks

ACCUEJECT XL

– Easily set quality control device, able to eject a single faulty box
– Automatically ejects non- standard boxes up to 35 mm thickness at full running speed
– Ensures high quality production while simultaneously reducing waste and costs

Transfer

– Independent drive for total control of the box stream
– ACCUSQUARE XL for perfect alignment of every box, guaranteeing high standard quality
– Belt tensioning and adjustable height ensure a prefect box stream
– Adjustable transfer conveyors for quicker set-up

Delivery

– Independent drive for faster changeover
– Box-stream regulator for precise intervals, higher quality and faster running
– Improved glued box quality with automatic apron centering

Ergonomics

– Maximum accessibility for fast set-ups and direct process control
– Easy handling and quick makeready with MATIC setting and remote control
– Complete production overview with LED machine status indication and video monitoring
– Security light barriers for maximum safety
