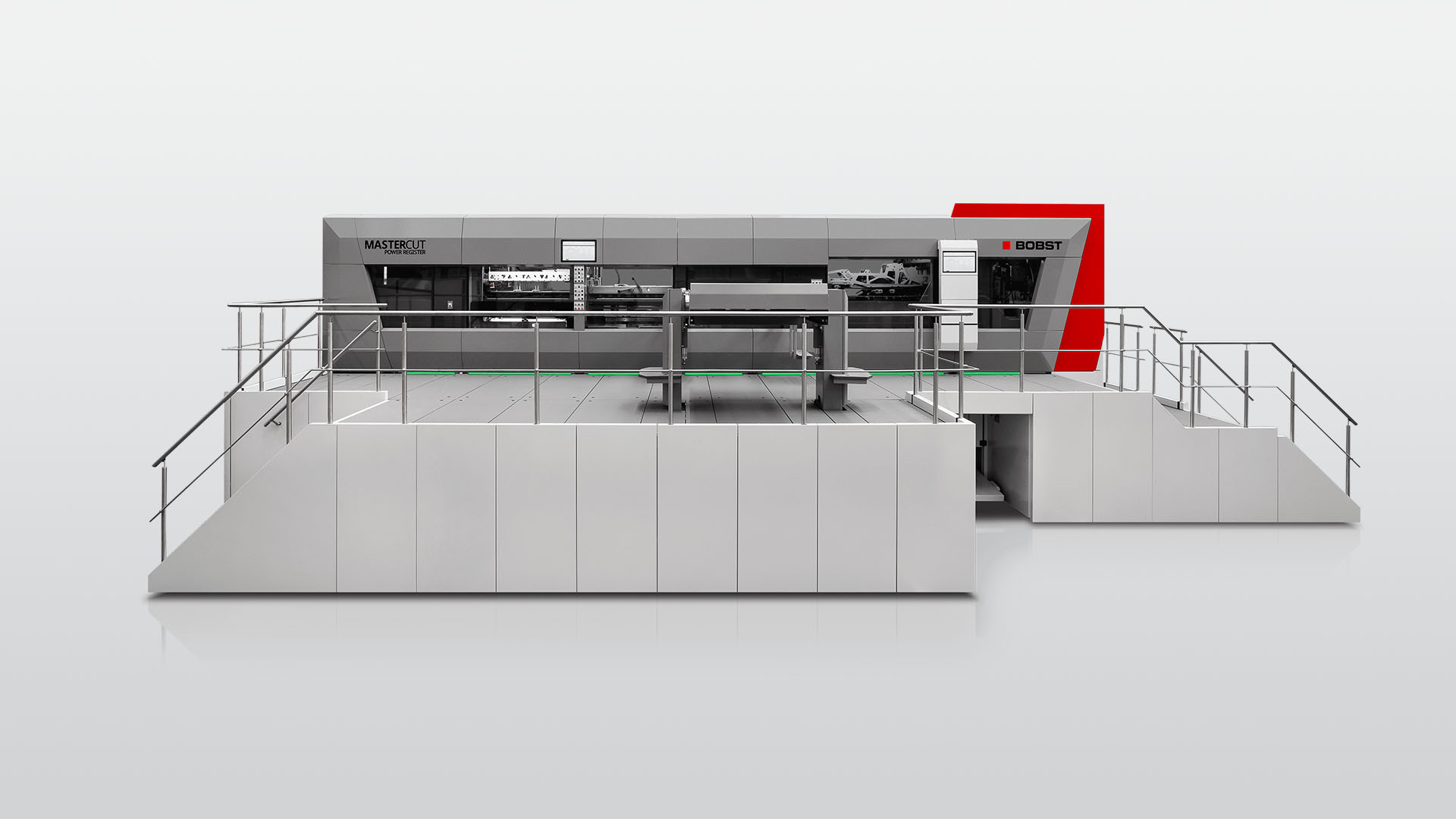

MASTERCUT 165 PER

•
•
•
•

MASTERCUT 165 PER has been created to allow large-size folding carton die-cutting, for maximum production and cost efficiency. Also capable of running corrugated board sheets, the MASTERCUT 165 PER is equipped with a standard pallet delivery and offers the possibility to switch between the side delivery and a traditional corrugated board batch delivery at the back of the machine. Combined with a highly automated setup, full connectivity and BOBST high-precision technology, this die-cutter is part of a new generation of versatile machines which represent the future of converting.

Maximum flexibility

• Capable of running folding carton and corrugated board sheets with full tool compatibility
• Choice between pallet delivery on the side or batch delivery at the back of the machine
• Optional increase of production speed (up to 7,500 s/h) and platen pressure (upt to 5.5 MN)

Optimal blank delivery

• Unique Dual Stream system allows to switch between side and back delivery according to production needs
• High-pile delivery with lateral conveyor
• Perfect stripping and blanking, even for corrugated board
• Machine can be equipped with peripherals at the back of the machine to consitute a full production line, from pallet to pallet

Efficient large-size converting

• Large-size die-cutting for sheets of up to 1,650 x 1,300 mm
• Highly automated setup from feeder to delivery
• Equipped for TooLink and BOBST Connect functions, speeding up setups and ready for fully digitalized and connected converting
• Pack Energy Efficiency allows up to 20% energy savings
