Highest definition graphics

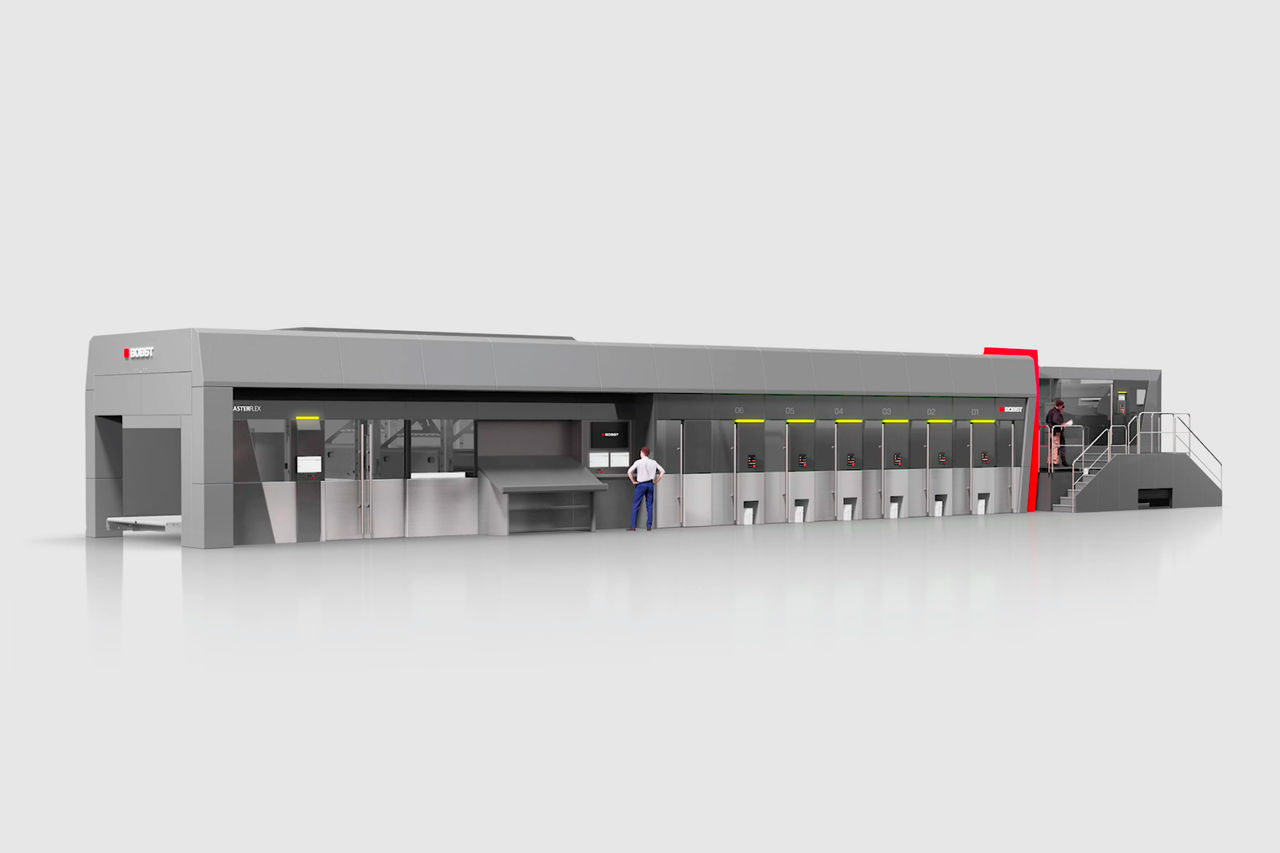

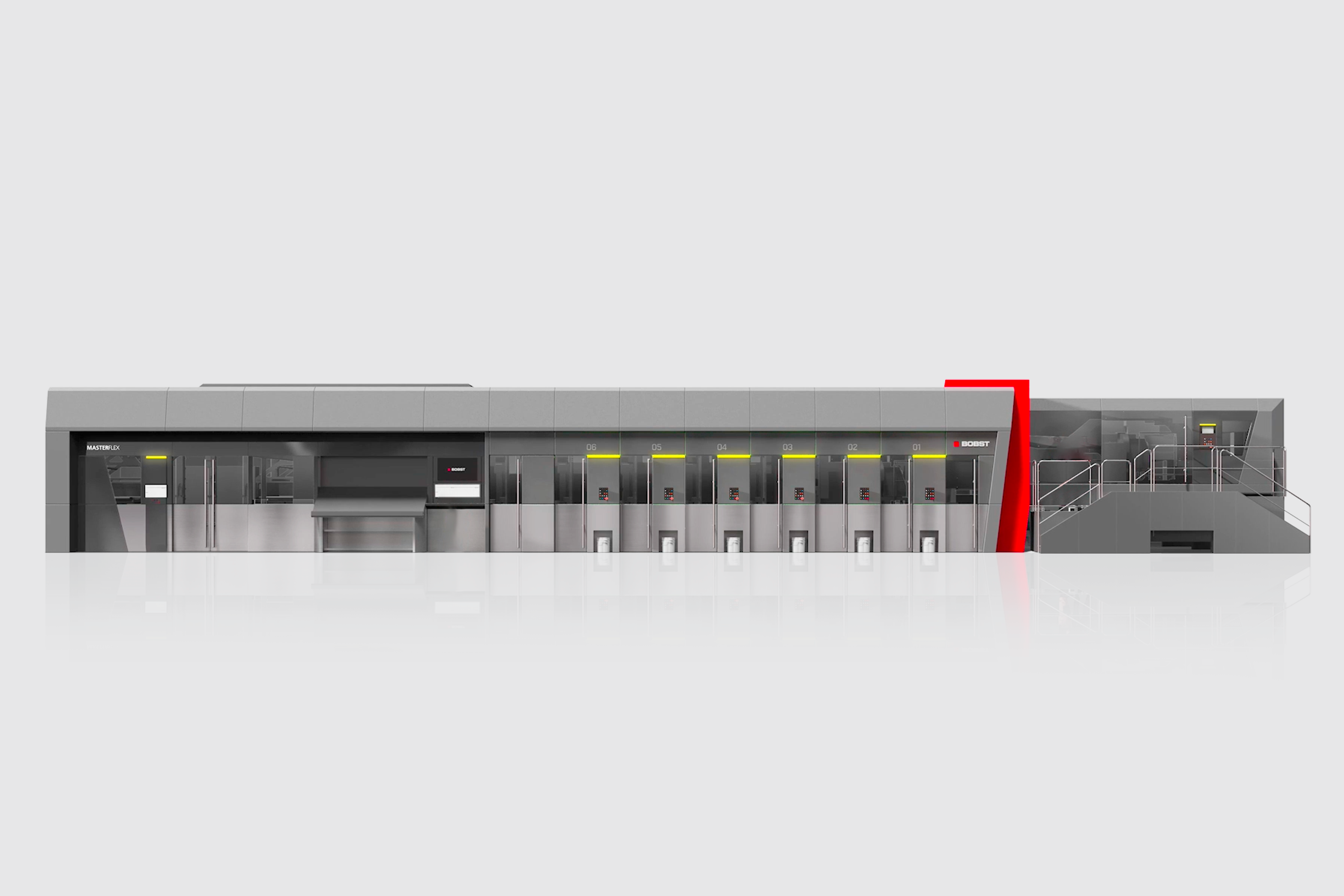

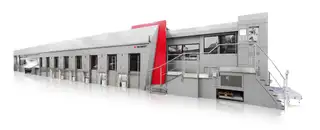

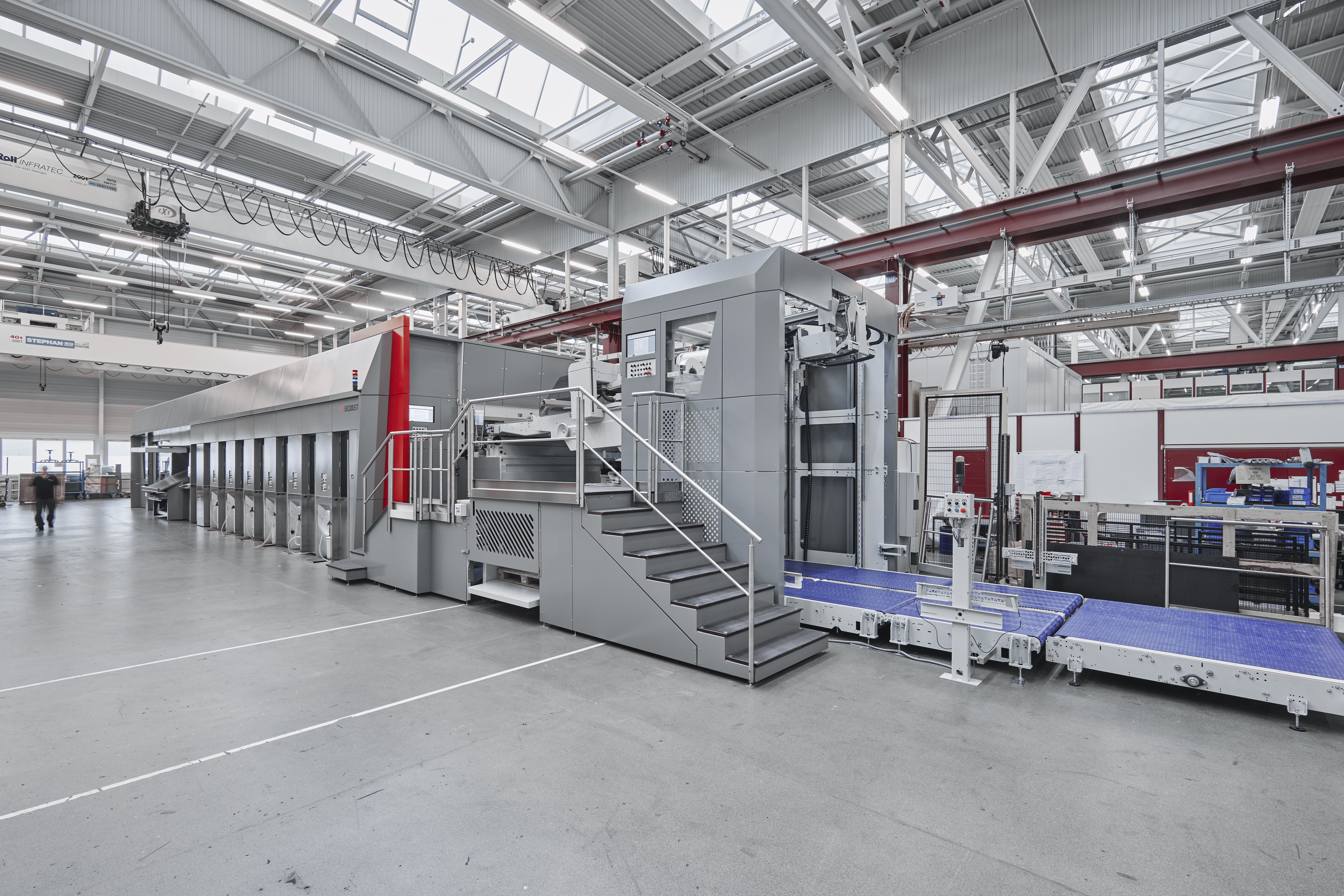

The new MASTERFLEX HD+ offers an impressive output of 15,000 sheets per hour, delivering high precision and top-quality printing for all flute sizes, from micro flute to double wall, and up to eight colors. Engineered for robustness and reliability, it features exceptional sheet transport and inking control, making it the leading flexo printing press in its class.

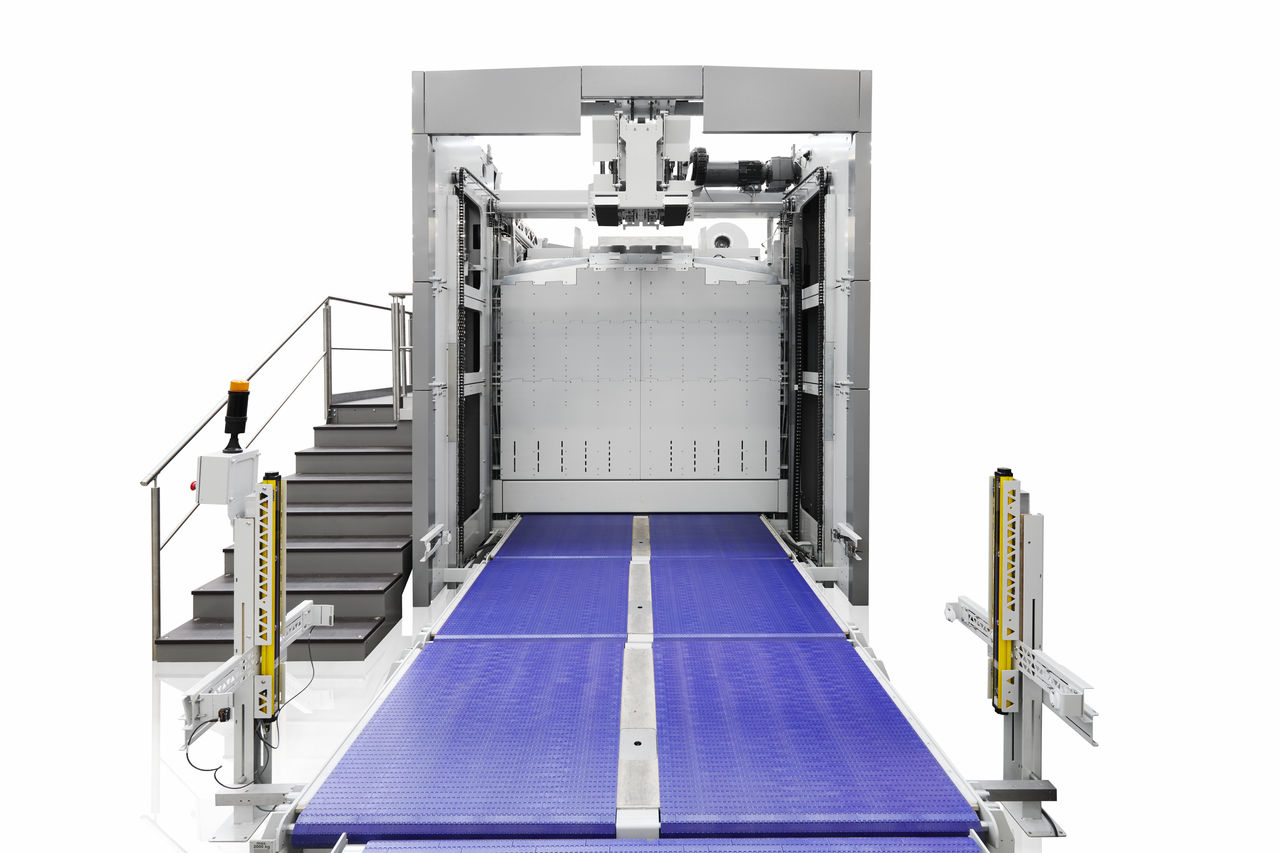

The innovative Start & Go System provides ultra-high precision register setting and quality control, requiring only a few sheets to set up a new job. The ACCUCHECK quality control system inspects every sheet, ensuring 100% quality output. The new stacker technology handles sheets individually to avoid scratches and can stack up to two meters high.
Product specifications
| Processed materials | |
|---|---|
| Corrugated board | 0.6 - 9 mm (1) .024 - .35 in (1) |
| Heavy solid board | 0.75 mm (1) .03 in (1) |
| Capability | |
| Sheet size minimum | 600 x 620 mm 23.62 x 24.41 in |
| Sheet size maximum | 2100 x 1300 mm 82.67 x 51.18 in |
| Speed (s/h) | 15000 s/h 15000 s/h |
| Printing | |
| Printing size | max 2100 x 1285 mm max 82.67 x 50.59 in |
| Dimensions | |
| Length | 29.74 m 97.57 ft |
| Width | 7.55 m 24.77 ft |
| Height | 4.76 m 15.62 ft |
Features
Sheet edge register
- A photocell at the in-feed detects the exact position of the sheet’s front edge and guarantees that the press prints the first color in exactly the right spot.
Ergonomics
- Motorized lifting and locking system helps to cut down manual operator intervention
- Device handles up to three rolls per print unit
- Anilox roll changes in 3 min
- Automatic inking and doctor blade wash-up system reduces ink and water consumption and cuts changeover times
- Carbon chambered doctor blades

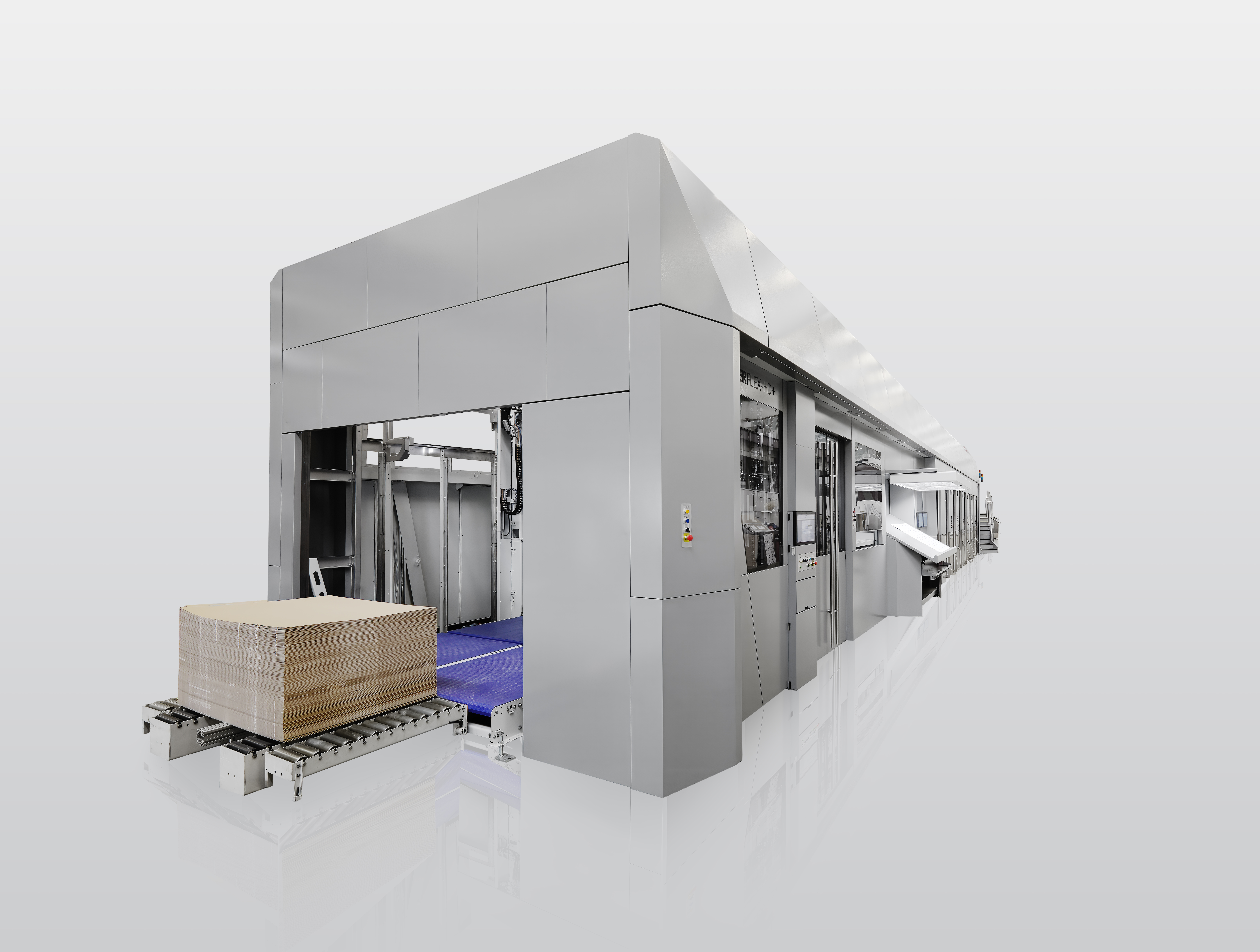

Real direct drive feeder
- High speed belt infeed system
- No crushed or marked sheets
- Allows correction of the position of the front edge
- Ensures the printing of the first color in register
Taking control
Touch screen operator interface is intuitive and easy to use
Allows the adjustment of all parameters and includes an indicator showing the state of the machine
The built in MATIC system manages the memorizing of specifications for repeat work, allowing their automatic re-setting and adjustment
Start & Go system
Automated Register Setting. This new system senses printed marks on the sheet and uses this information to control and bring into register each print unit on start-up, and throughout production, without the need for operator intervention. The system automatically adjusts print length, skew, and both transverse and longitudinal register.
ACCUCHECK
- Our renown in-house quality inspection system guarantees that 100% of your production meets your customers’ quality requirements
- Non-conforming production is rejected automatically
- Saves time, reduces waste, and prevents returned orders
- iQ 500 even identifies variations in the washboarding effect
Main processed material
Peripherals / Quality Control
LOADER AF
BREAKER 2 FLAT TRACK

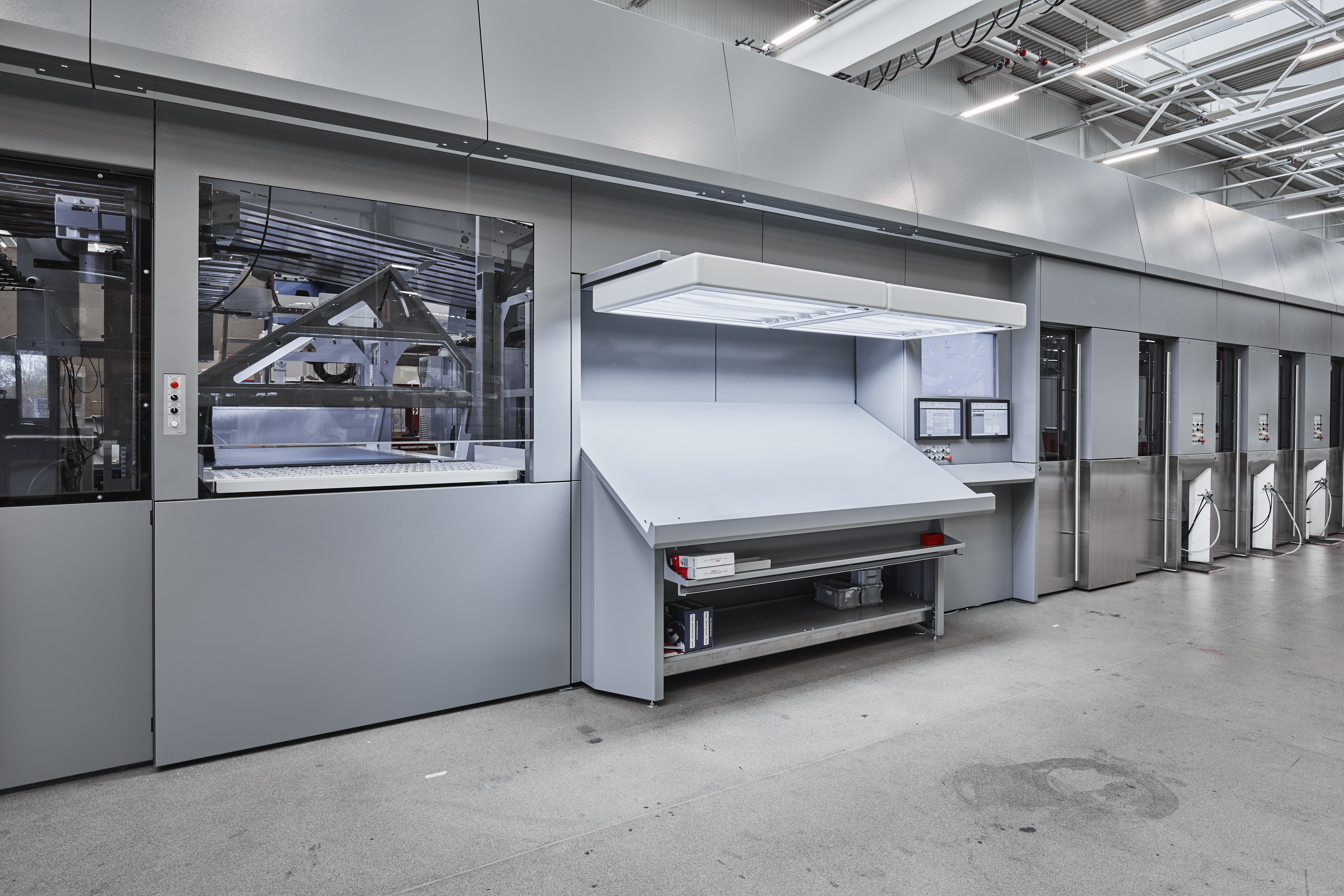

Digital Inspection Table - CB - Standard format
