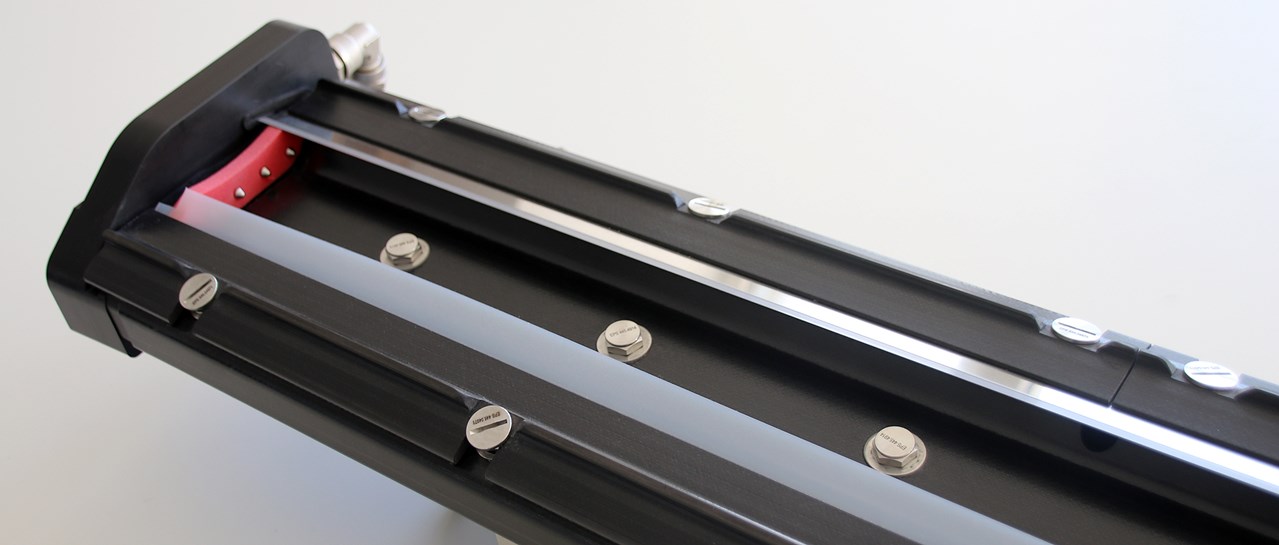

Carbon Fiber Doctor Blade Chamber

The market’s lightest doctor blade chamber, engineered for superior printing results.

Start your upgrade
Shredder front waste UPG

Lighter, Stronger & Cleaner

Developed exclusively by BOBST for flexo printing folder-gluers/flexo printing rotary die-cutters machine, the Carbon Fiber Doctor Blade Chamber (CFC) redefines what’s possible in printing chamber technology.

With a patented carbon fiber body that’s 50% lighter than aluminum, this chamber is the lightest solution on the market—without compromising strength or performance.

The carbon fiber construction delivers long-lasting anticorrosive protection, creating a resistant barrier against humidity and aggressive production environments. Combined with BOBST’s integrated washing spray system and reinforced quick-blade clamping design, the CFC transforms maintenance routines and accelerates job changeovers.

The CFC Advantage

Effortless Handling

At 50% lighter than aluminum chambers, operators can handle, install, and maintain the CFC with significantly less physical strain and faster turnaround.

Built to Last

24% more rigid than competitor carbon chambers, preventing bending while resisting corrosion and aggressive production conditions for extended lifespan.

Faster Changeovers

Integrated washing sprays keep the chamber clean and minimize residual ink, reducing job changeover time and boosting productivity.

Consistent Color Quality

Carbon surface and efficient washing system prevent residual ink mixing, ensuring color consistency from run to run.

Product Specifications

Construction & Performance

  • Material: patented carbon fiber body
  • Weight: 17kg (2.4m configuration)—50% lighter than aluminum
  • Rigidity: 24% more rigid than standard competitor carbon chambers
  • Corrosion resistance: Long-lasting protection against humidity and aggressive environments

Installation & Maintenance

  • Reinforced quick blade clamping system with torque screwdriver for consistent tightening
  • Integrated BOBST washing sprays for efficient cleaning
  • Symmetrical seals for quick maintenance
  • Installation time: 0.5–2 days per printing module (depending on machine type)
  • Professional installation available through BOBST Field Service

Package Includes

  • Complete chamber assembly with handles and stop guides
  • Full seal kit and captive screws
  • Integrated nozzle ramp system
  • Optional plastic blade clamps available

Compatible Equipment

  • Flexo printing folder-gluers 8.20 ExpertLine, Expert, Discovery
  • Flexo printing folder-gluers 924/1228/1232/1632/1636 NT & NT RS
  • Midline 924 & 924 Fine Printing
  • Flexo printing rotary die cutters 1624/1628/1632 NT & NT RS/HBL
  • Flexo printing rotary die cutters1628 GT
  • LINECUT  Flexo printing rotary die cutters 1624/1628
  • MASTERFLEX-XL

The Technology Behind the Results

Superior Ergonomics

50% Weight Reduction



  • Operators handle a chamber that weighs half as much as traditional aluminum alternatives.
  • Reduces physical strain during maintenance and installation.



User-Friendly Clamping

  • The reinforced quick blade clamping system operates smoothly and intuitively.
  • Makes blade changes faster and more consistent.
Red icon with transparent background to be used on PPT, Printed document, Brochures. Icon_boost_ergonomics_red.png

Operational Excellence

Faster, Cleaner Washing



  • BOBST washing sprays integrated inside the profile ensure the chamber stays clean while reducing residual ink.
  • The result: more efficient wash cycles, reduced changeover time, and a cleaner work environment.



Consistent Blade Tensioning



  • Blades are tightened uniformly using our torque screwdriver system.
  • Symmetrical seals enable quick, straightforward maintenance.
BOBST image

Long-Term Performance

Enhanced Rigidity



  • The high-carbon profile is 24% more rigid than standard competitor carbon chambers.
  • Prevents bending and maintaining precise blade contact.



Corrosion Resistance



  • Carbon fiber construction forms a protective barrier against humidity and aggressive production factors.
  • Extends chamber lifespan significantly.



Color Consistency



  • The carbon surface combined with efficient washing prevents residual ink mixing.
  • Ensures consistent color output run after run.
BOBST image

What This Means For You

Lighter equipment means less operator fatigue. Faster changeovers mean more productive hours. Consistent color quality means fewer reprints and happier customers.

The Carbon Fiber Doctor Blade Chamber isn’t just an upgrade—it’s a competitive advantage.

With 50% weight reduction, superior rigidity, and integrated cleaning technology, you’re investing in faster turnarounds, lower maintenance costs, and print quality that stands out.

Ready to Upgrade Your Printing Quality?

Our specialists can help you determine the best configuration for your equipment and production needs.
