(1) Depending on material properties

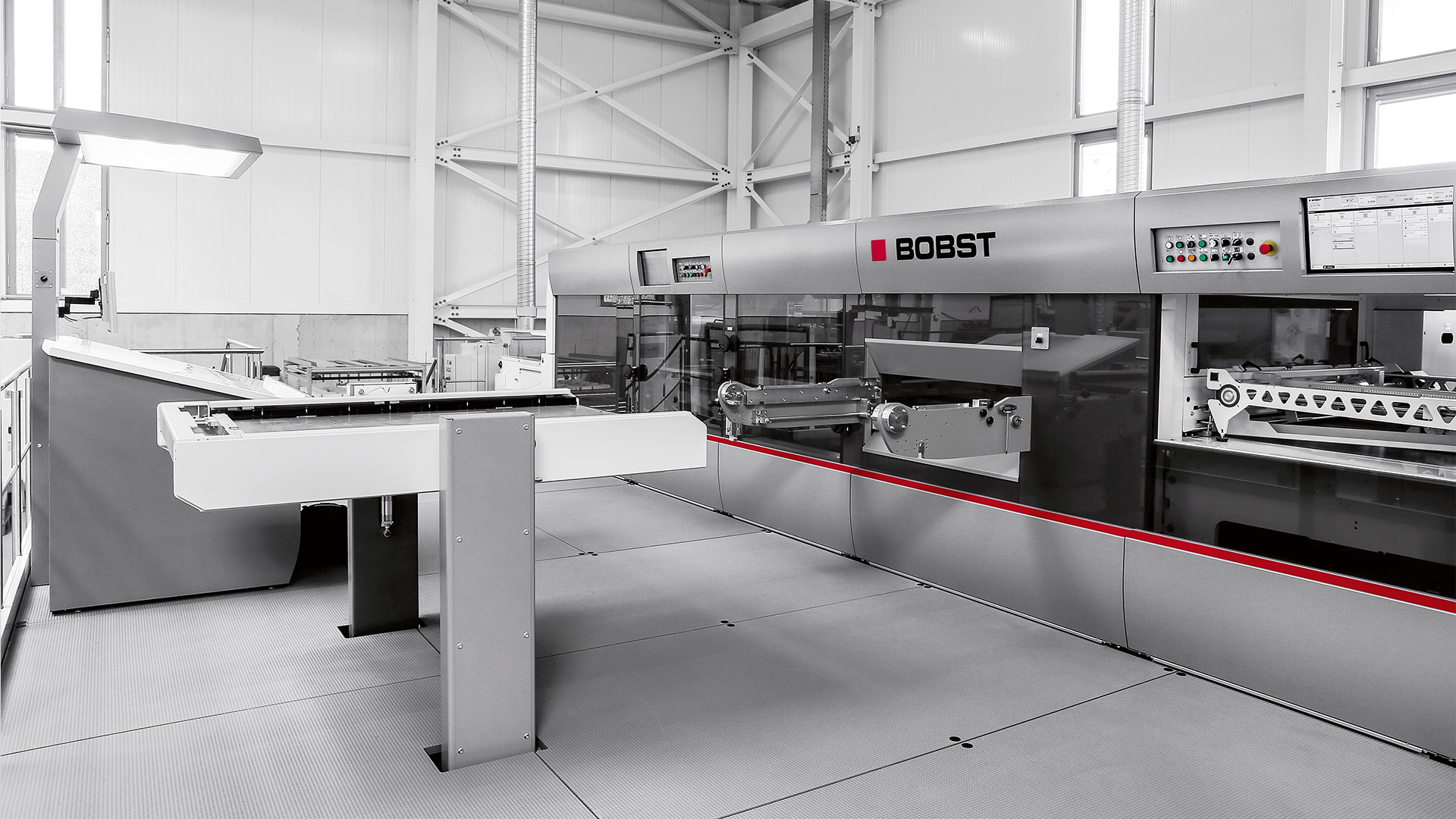

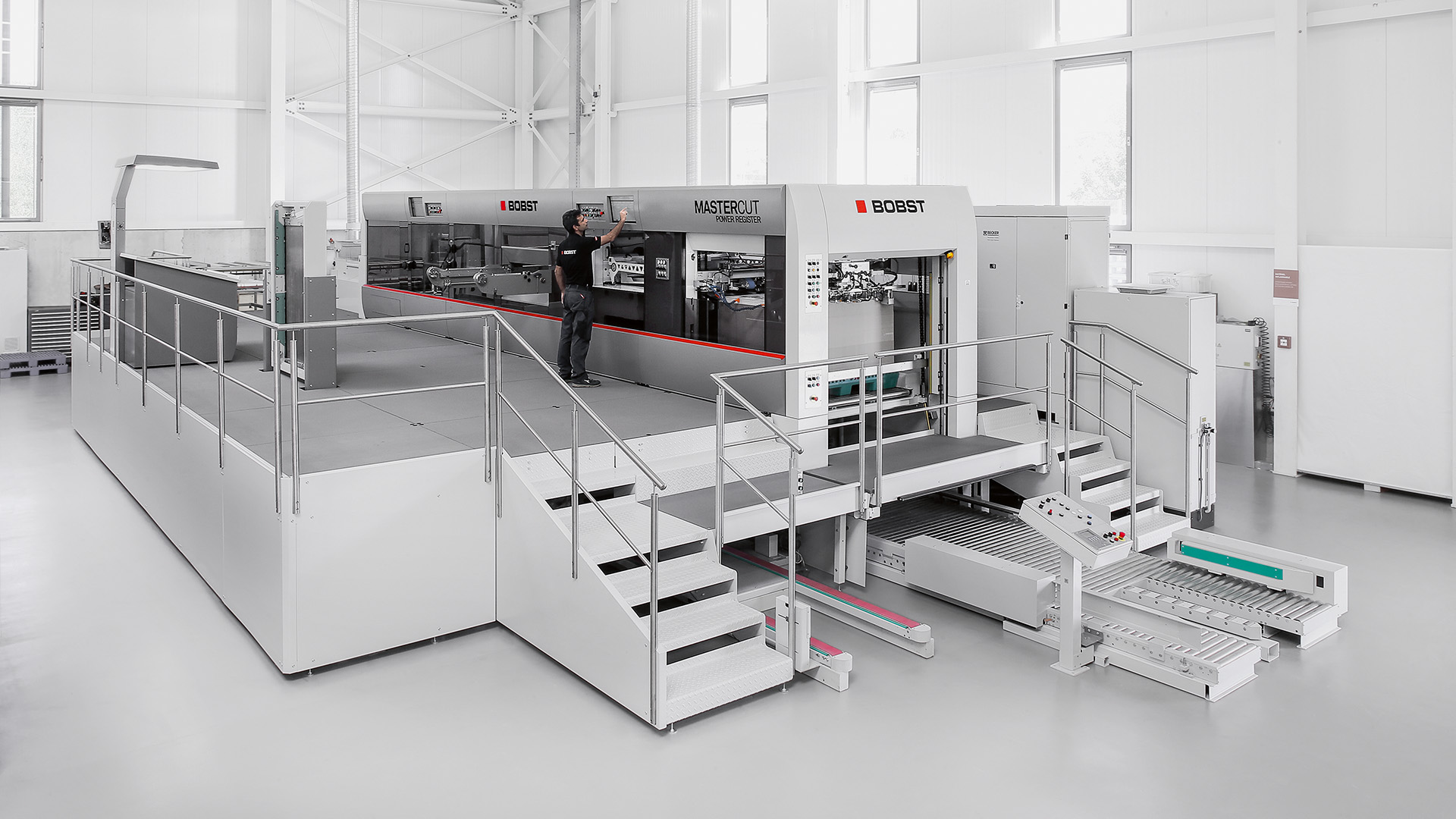

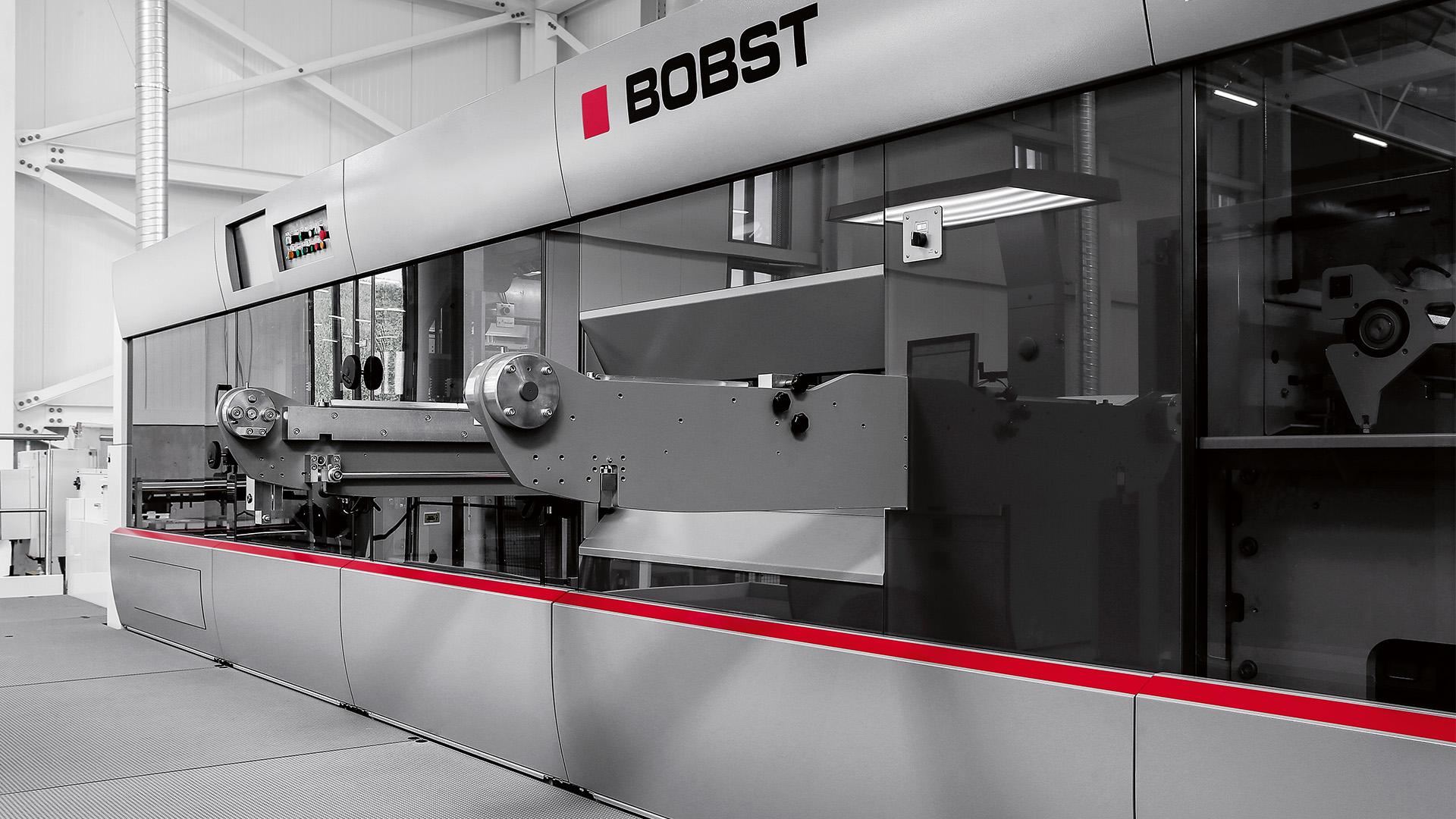

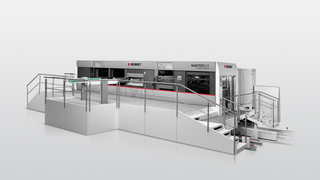

World's fastest size 6 die-cutter
When only the very highest productivity will do: MASTERCUT is the most fully automated and productive die-cutter on the market. Its market-leading speed delivers uninterrupted production and superb quality of the finished-product.
Key benefits
Turning speed into profit
- Handles sheets up to 1,450 x 1,050 mm at speeds up to 9,500 sheets per hour
- Most fully automated and productive die-cutter on the market
- Cutting, stripping, blanking in one go
Sensational blank quality
- Unique cut-to-print register for extremely precise die-cutting
- Perfectly cuts, strips and blanks even delicate or light materials
- Smoothest sheet transport for unrivalled accuracy and exceptional blank quality
Maximum automation
- MATIC with a vast number of automatic setting features
- Allows storing of up to 5,000 job setups
- Synchronized feeder and register provide extremely accurate non-stop feeding
Product specifications
| Processed materials | |
|---|---|
| Paper | 80 g/m2 (1) .004 in (1) |
| Carton board | max 2000 g/m2 (1) max .060 in (1) |
| Corrugated board | max 5 mm (1) max .200 in (1) |
| Capability | |
| Sheet size minimum | 580 x 450 mm 22.83 x 17.71 in |
| Sheet size maximum | 1450 x 1050 mm 57.08 x 41.33 in |
| Speed | 9500 s/h 9500 s/h |
| Cutting force | 5.5 MN 600 US ton |
| Converting | |
| Cutting size | max 1450 x 1035 mm max 57.08 x 40.74 in |
| Dimensions | |
| Length | 13.00 m 42.65 ft |
| Width | 7.00 m 22.97 ft |
| Height | 3.25 m 10.66 ft |
Features
SMART FEEDER
- Reduces feed-related stoppages and improves your productivity
- Continuous stepless pile raising for optimal feed
- Automatic lateral pallet correction up to +/- 100 mm
- Perfect material flow due to anti-static feeding table with recessed belts
AUTOPLATEN ®
- Smoothest sheet acceleration drastically limit number and size of nicks
- Micrometric adjustment of supporting plate
- Quick Lock die-cutting chase for fast and easy setting
- Motorized cutting force adjustment
POWER REGISTER 2
- "No sheet-edge contact" system reduces feed related production stops
- Perfect positioning thanks to cameras checking sheet edge, register marks and print
- Automatic synchronization of the sheet arrival
- Unique bottom print registration feature

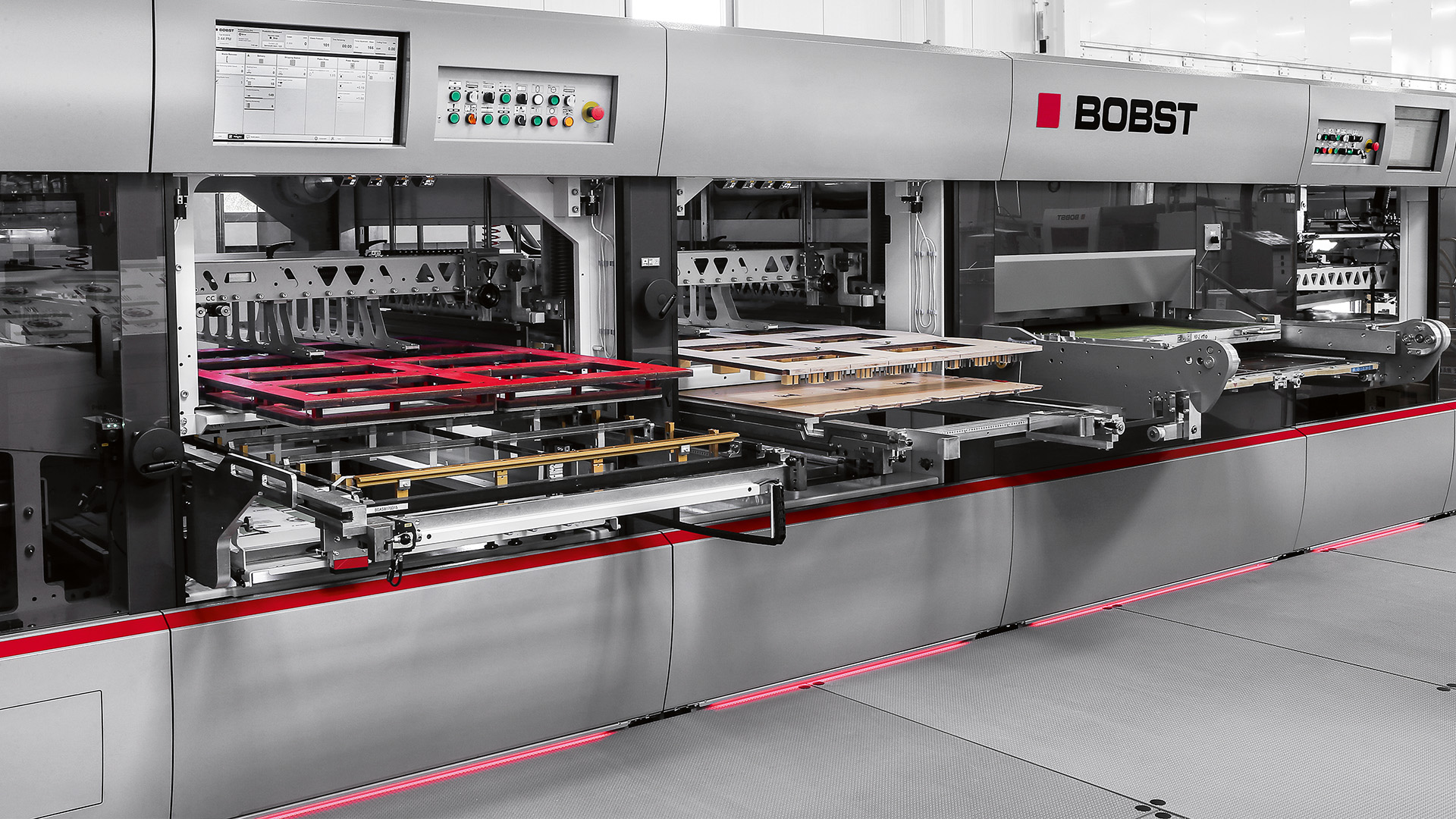

Stripping and blanking
- Even delicate or light materials are perfectly stripped at highest speeds
- Quick Lock frame for central stripping board
- Automatic gripper bar opening facilitates quality control
- Self-adjusting system stacks blanks perfectly
New HMI SPHERE
– Large 22” full color Human Machine Interface (HMI)
– Simple step-by-step procedure guides the operator through the job set-up process
– All settings appear on one screen for more convenient and intuitive navigation
– Can store up to 5,000 job set-ups to minimize setting time
New MATIC
- MATIC system allows a vast number of automatic setting features, shortens set-up time and reduces operator intervention
- Quick and easy fitting of dedicated tools in the machine
- Camera guided tool positionning of stripping tools including third HMI
