(1) Depending on material properties
Versatile solution in high graphics

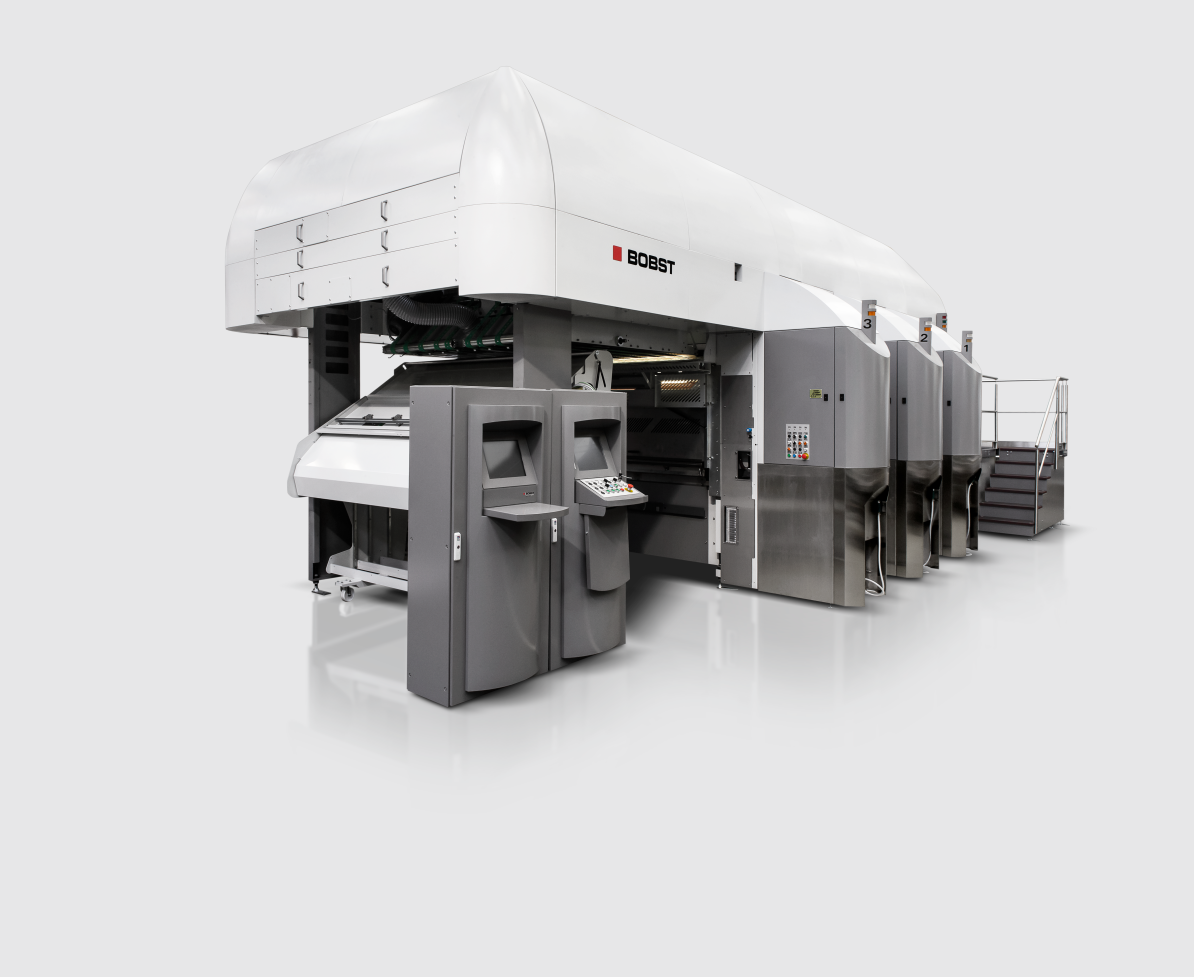

EXPERTFLEX is a top-quality flexo printing press that can handle printing on substrates ranging from micro-flute to double-wall. It offers an alternative to offset printing and is available in up to three colors. With its advanced control technology and automatic adjustment, EXPERTFLEX is a great option for high-added-value packaging. It has excellent sheet transport and inking control, making it a reliable and sturdy choice for any printing needs. EXPERTFLEX is the most powerful flexo printing press in its category.
Key benefits
Exceptional quality printing
- Flexographic printing with up to 3 colors and exceptional ink control
- Automatic quality control and rejection
Added margin and value
- High-quality flexo printing for added-value packaging
- Conveyor for sheet transport and shingling for feeding again into platen
- Fewer sheets needed to set a new job and reduced ink and water consumption
Power and durability
- Benchmark for all 2,100 x 1,300 mm format presses
- Long-lasting, high-quality construction
Product specifications
| Processed materials | |
|---|---|
| Corrugated board | 0.75 - 9 mm (1) .03 - .35 in (1) |
| Heavy solid board | 0.75 mm (1) .03 in (1) |
| Capability | |
| Sheet size minimum | 600 x 520 mm 23.62 x 20.47 in |
| Sheet size maximum | 2100 x 1300 mm 82.67 x 51.18 in |
| Speed (s/h) | 8,000 s/h 8,000 s/h |
| Printing | |
| Printing size | max 2100 x 1285 max 82.67 x 50.59 in |
| Number of printing units | max 3 max 3 |
| Dimensions | |
| Length | 17.35 m 56.92 ft |
| Width | 10.80 m 35.43 ft |
| Height | 3.95 m 12.95 ft |
Features
Smooth feeding
- High speed belt infeed system
- No crushed or marked sheets
- Allows correction of the position of the front edge
- Ensures the printing of the first color in register
Ergonomics
- Anilox roll changes in 20 min
- Aluminum chambered doctor blades
- Automatic inking and doctor blade wash-up system reduces ink and water consumption and cuts changeover times (option)
- Handling trolley for Anilox cylinder
- Not in use printing units can be prepared while the machine is running
Perfect Register
- A photocell at the in-feed detects the exact position of the sheet’s front edge and guarantees that the press prints the first color in exactly the right spot
Taking control
-
Touch screen operator interface is intuitive and easy to use
-
Allows the adjustment of all parameters and includes an indicator showing the state of the machine
-
The built in MATIC system manages the memorizing of specifications for repeat work, allowing their automatic re-setting and adjustment
Start and go
- Revolutionary Start & Go System system that senses printed marks on the sheet, automatically bringing into register each print unit on start-up and throughout production
- Adjusts print length, skew, transverse and longitudinal register
- Substantial reduction in set-up times and number of sheets needed for start-up
- No need for operator intervention, reducing human error
Transportation
- Conveyor for sheet transport and shingling for feeding again into platen
- Sheet ejector and collecting recipient
Main processed material
