(1) Depending on material properties
Guaranteed box compliance

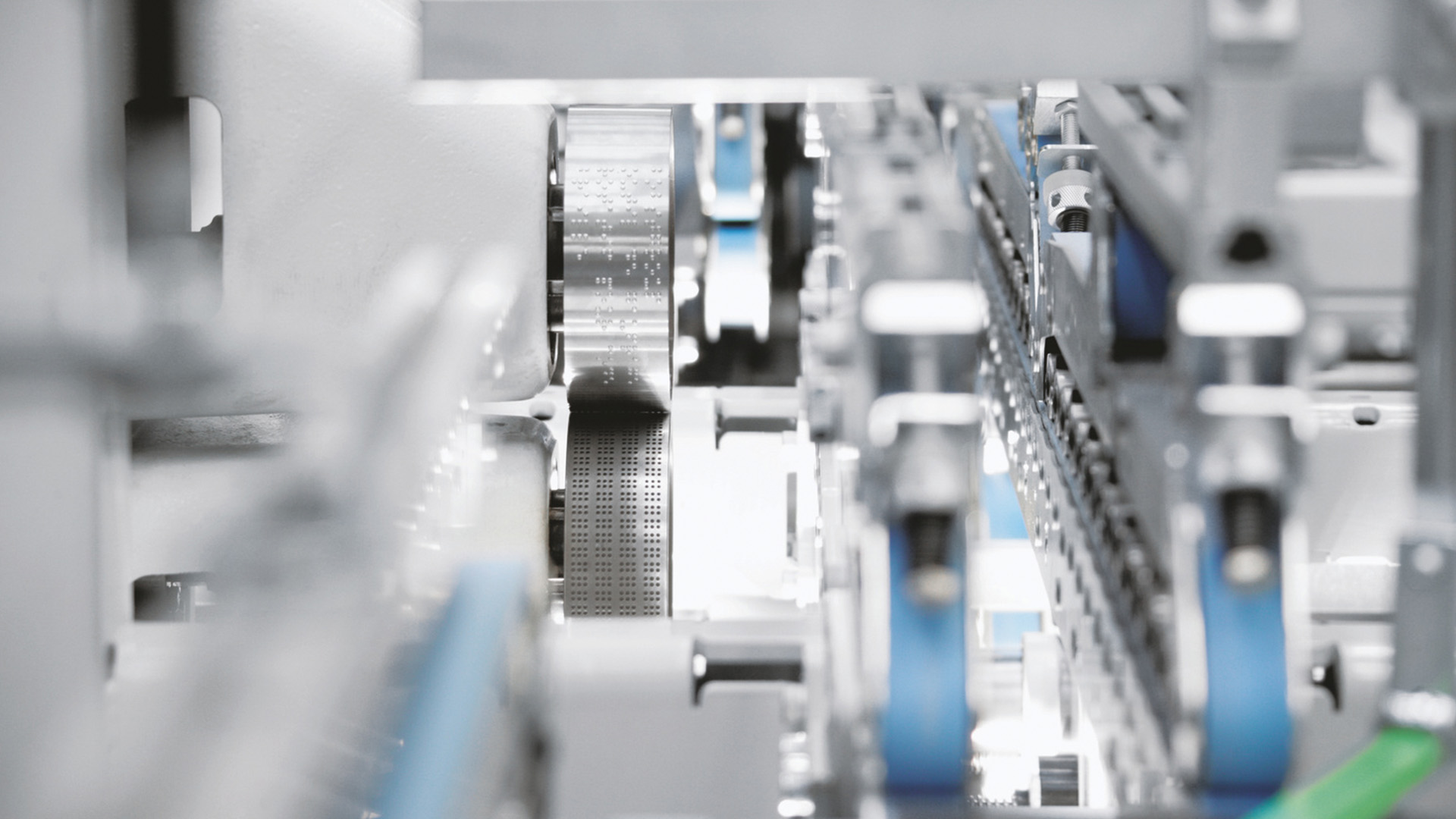

ACCUBRAILLE is a patented additional unit for EXPERTFOLD 50 | 80 | 110 machines which allows you to emboss Braille onto all four panels of a carton, even across the running direction, and to emboss images, letters and/or numbers.
Key benefits
Ensuring pharmaceutical conformity
- Patented unit, ensuring compliance with Braille Norm EN-15823
- Guarantees high-quality, long-lasting Braille
Unrivalled efficiency
- Extremely fast in-line Braille application, allowing smooth feeding of dot-free blanks
- Cost-effective, highly efficient solution, saving set-up time and tooling cost on the die-cutter
- Quick and easy set-up
Braille wherever you want it
- Can handle up to Braille 8 lines and 4 panels
- Can be installed on the left and/or right side
Product specifications
| Processed materials | |
|---|---|
| Carton board | 200 to 500 g/m2 (1) .010 to .023 in (1) |
| Capability | |
| Speed | 115'000 b/h 115'000 b/h |
| Dimensions | |
| Length | 1 m 3.28 ft |
| Width | 1.92 m 6.29 ft |
Features

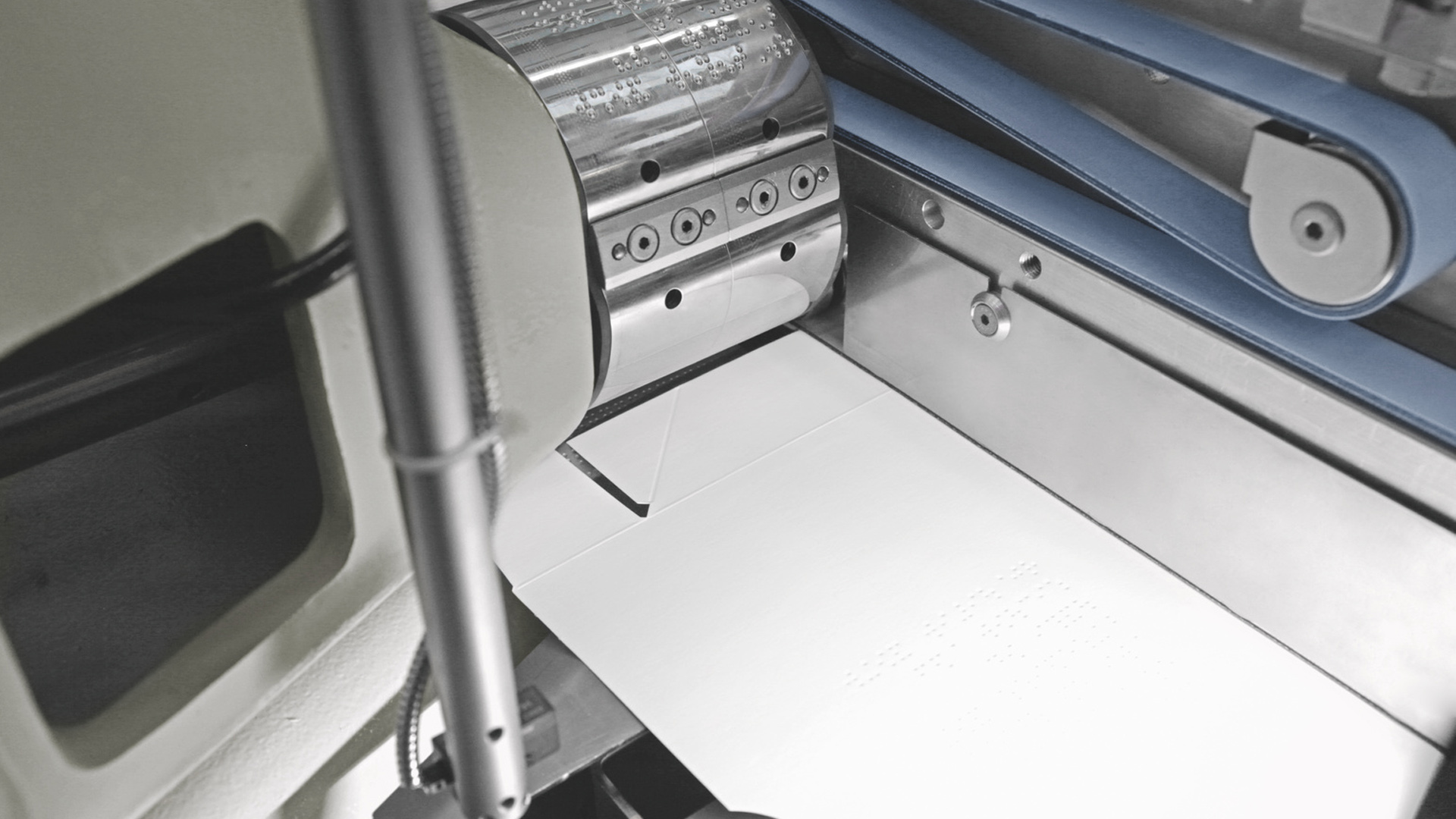

Embossing
- Up to 8 lines and 4 panels, as well as transverse embossing
- Consistent, long-lasting dot definition
- Inline embossing enables smooth feeding of dot-free blanks (no interlocking)
- On request, can emboss images, letters and/or numbers
Braille Tooling Unit
Saves cost and time by allowing you to manufacture your male Braille tooling at your own production site.

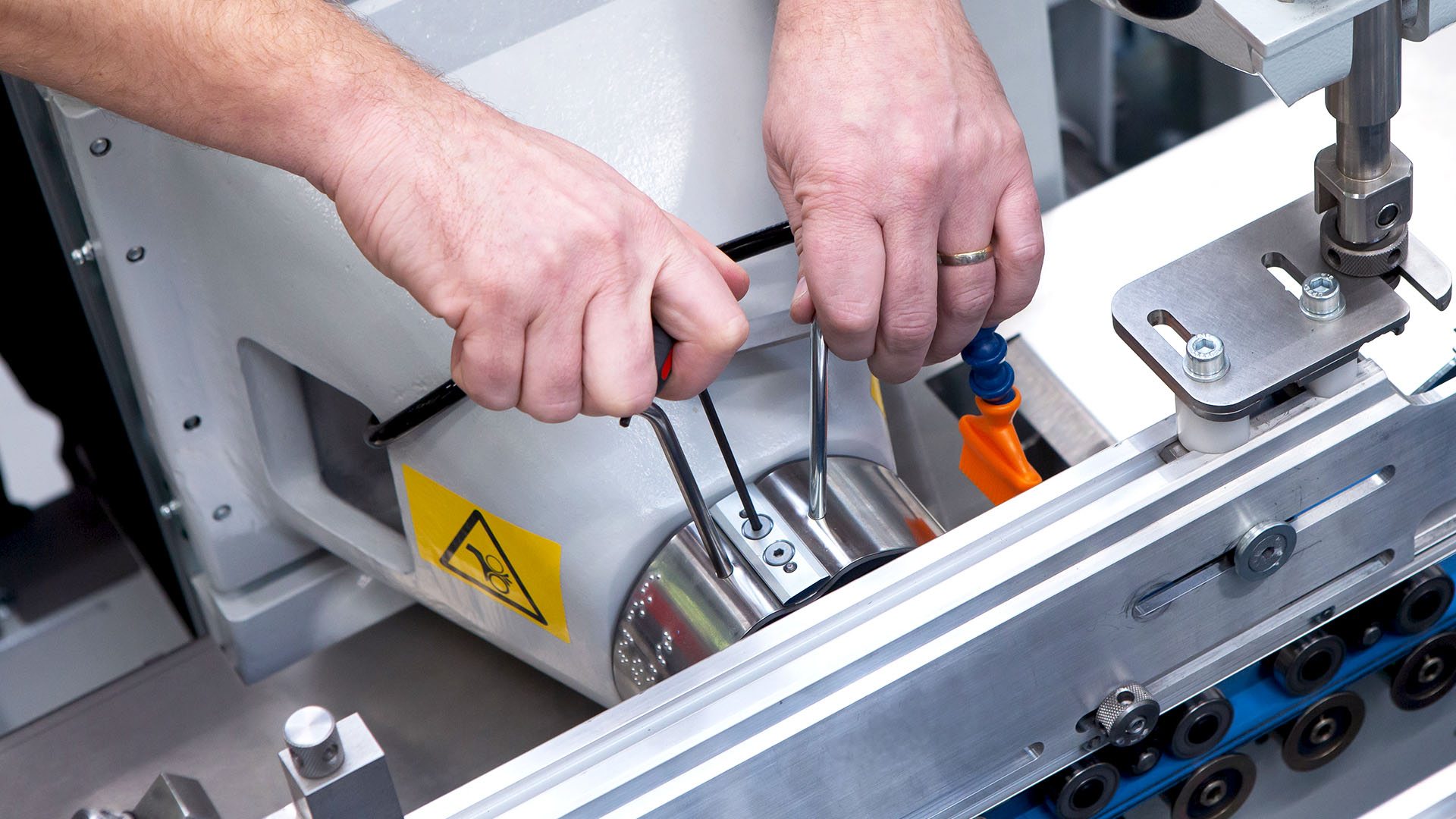

Set-up
- Quick and easy tool mounting system
- Saves extensive set-up time on the die-cutter
- Small footprint
- Cost effective
- Up to 115 000 b/h
BRAILLE-SCAN device
Ensures perfect quality BRAILLE embossing inline by checking for missing dots during production.
Ergonomics
- Device can be installed on the left and/or right side
- Automatic tool synchronization
- Motorized dot height adjustment
- Embarked doors for perfect safety
Main processed material
End-use categories
