(1) Depending on material properties

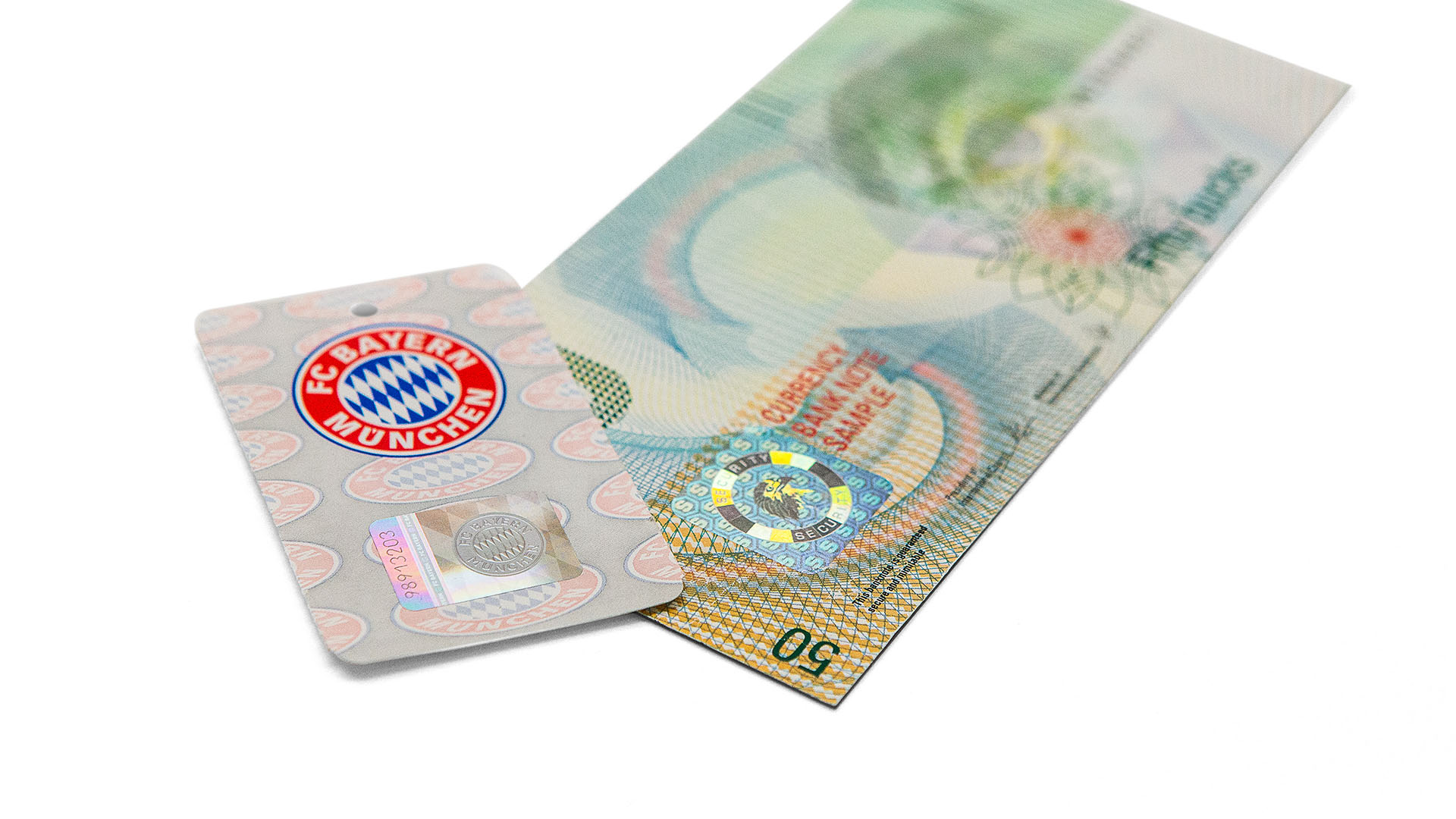

Unique hologram application

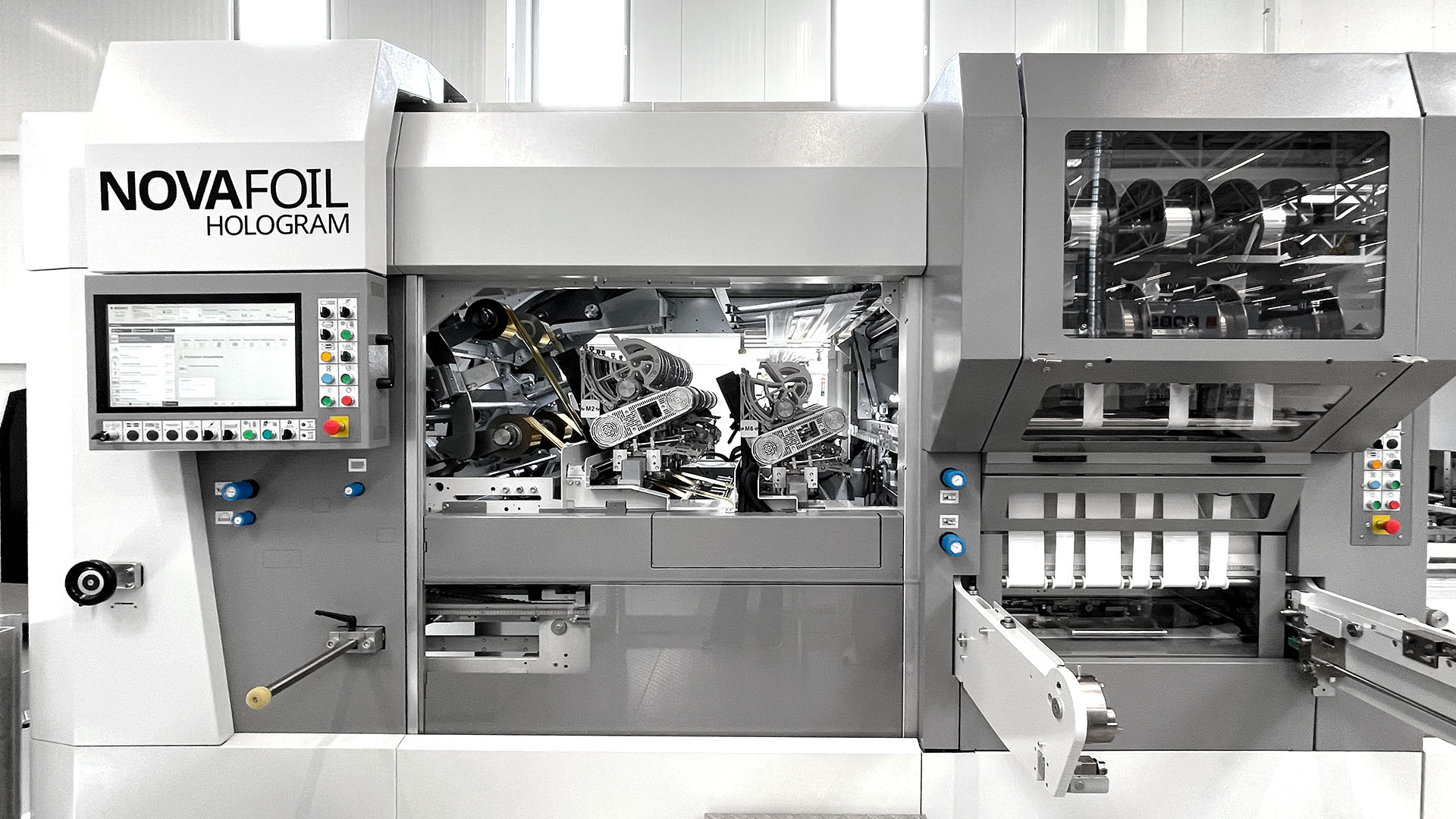

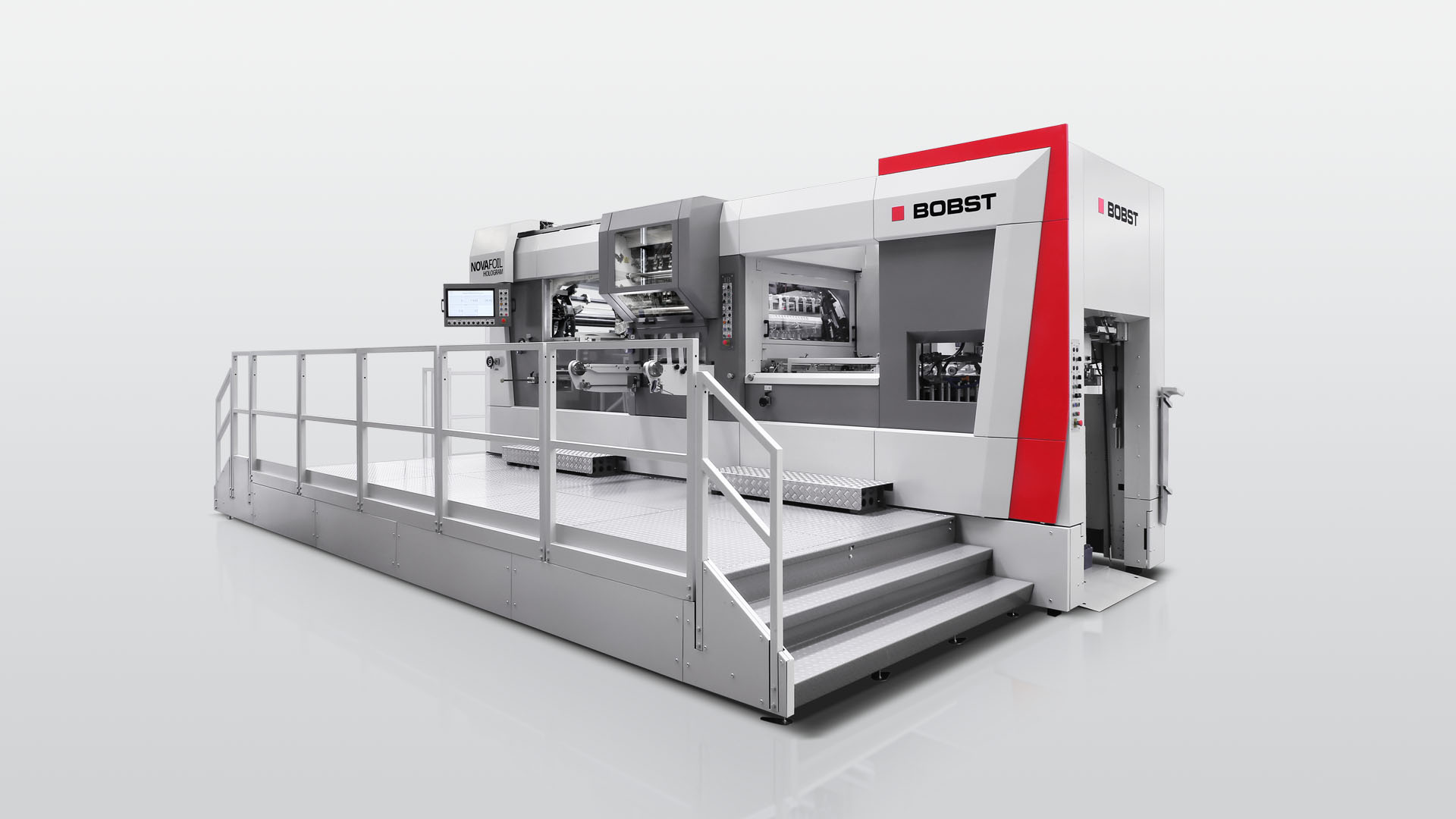

Equipped with up to 10 dedicated modules, the NOVAFOIL 106 Hologram version has been designed flexible and highly efficient hologram applications. Even complex designs can be applied in one single pass and with extreme precision to prevent forgeries, protecting brands and customers alike.
Key benefits
Efficient and precise
- Up to 10 independent modules can be mounted on two rails to cover a 106 width
- The modules can be set up and mounted individually, according to production needs
- A register for every reel ensures perfect application precision
- Foil-saving technology allowing optimal foil use
Productive
- Sophisticated platen section with latest BOBST technology for remarkable embellishment quality
- Fast reel change, quick connection and positioning of the modules
- Modules equipped with individual motor and mechanical brakes for top performance
- Highly automated for ease of use, precision and high productivity
Operator-friendly ergonomics
- Easy access to all functions and settings as well as to the hot foil stamping area permits maximum convenience and efficiency
- HMI SPHERE with data control and movable screens for efficient and time-effective set-up and production
Product specifications
| Processed materials | |
|---|---|
| Paper | max 80 g/m2 (1) max .004 in (1) |
| Carton board | max 2000 g/m2 (1) max .060 in (1) |
| Corrugated board | max 3 mm (1) max 120 in (1) |
| Capability | |
| Sheet size | max 1060 x 760 mm, min 400 x 350 mm max 41.73 x 29.92 in, min 15.75 x 13.78 in |
| Speed | 7000 s/h 7000 s/h |
| Stamping force | max 100 FTU max 100 FTU |
| Converting | |
| Stamping & embossing size | max 1052 x 742 mm max 41.42 x 29.21 in |
| Cutting size | max 1070 x 770 mm max 41.12 x 30.31 in |
| Foil equipment | |
| Web advance shafts | 2 2 |
| Dimensions | |
| Length | 7.70 m 25.26 ft |
| Width | 6.70 m 21.98 ft |
| Height | 3.20 m 10.50 ft |
Features

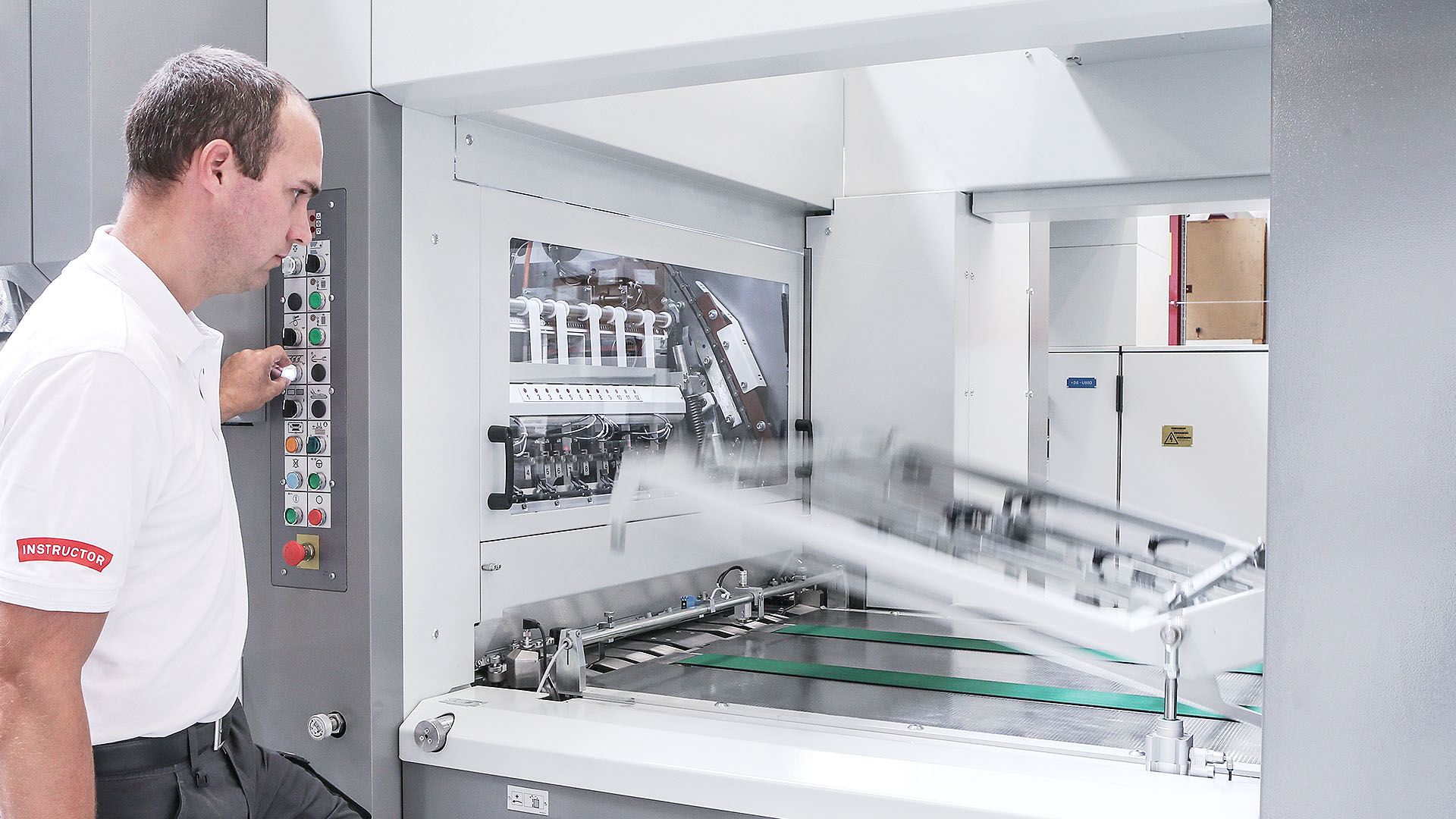

Feeder
- Latest generation feeder head with suction units for smooth feeding
- Stainless-steel feeding table, belts and anti-static steel plate guarantee ideal material flow
- Controllable sheet arrival for perfect synchronization and reduction of machine stoppages
Platen section
- Dedicated hot stamping transfer section
- Increased dwell time, high stamping pressure and stable temperature guarantee exceptional embellishment quality
- Reduced patching time, faster setup
- Impressive uniformity and precision
High performance

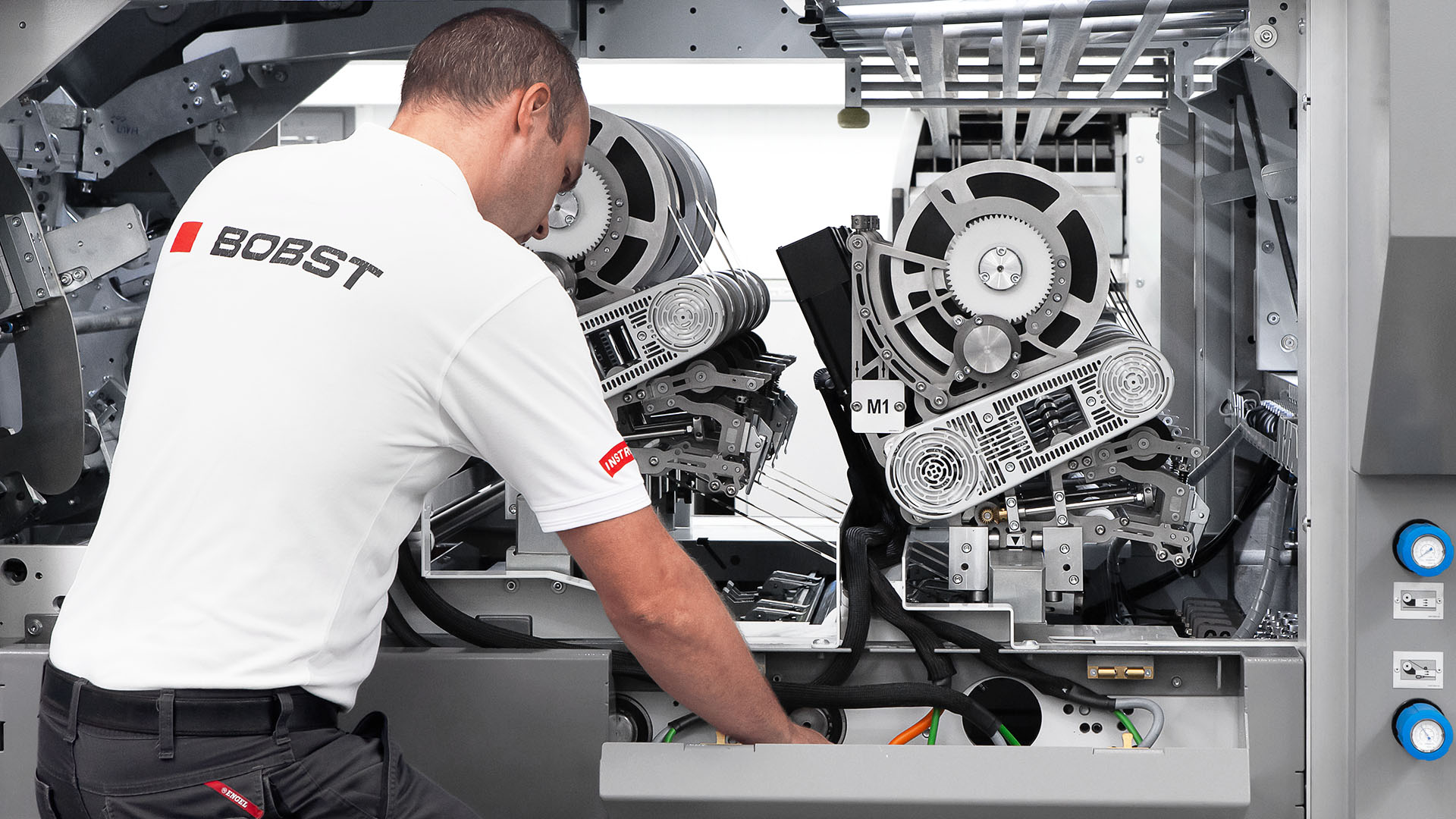

- Quick connection of modules to the machine with “plug and play”

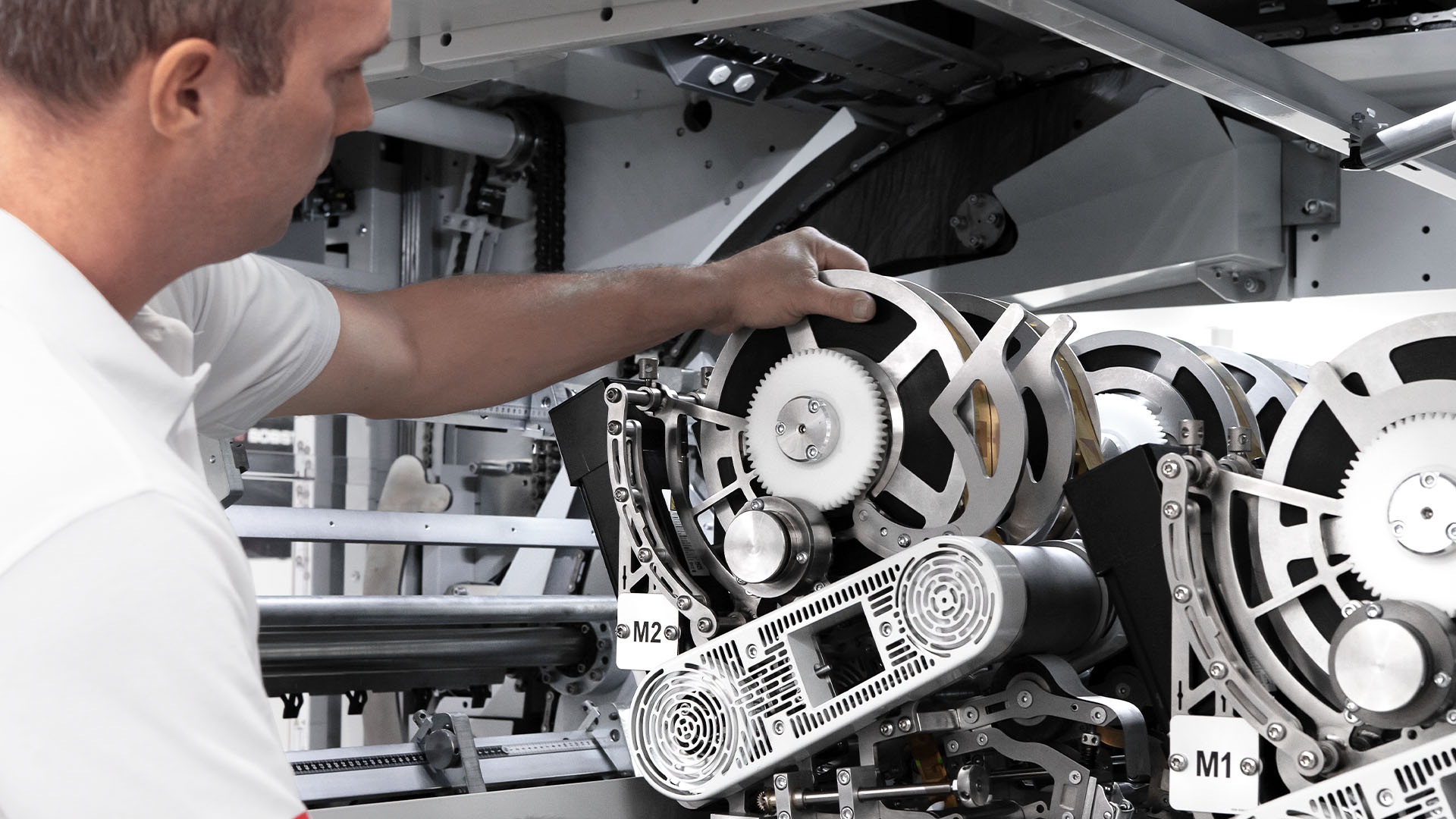

- Fast reel change with easy and precise positioning for minimum downtime
- Modules equipped with individual motors and brakes for top performance
Ergonomics
- Easy access to all functions and settings, including hot stamping transfer area
- Small footprint, compact machine
- With the Digital Makeready Tool, the complex die-positioning process can be considerably simplified and shortened
ACCUREGISTER
- Optional “No sheet-edge contact” system guaranteeing perfect register quality
- Large correction range in front and lateral direction
- Higher machine performance by reducing feed-related production stops
- Less waste during set up and production

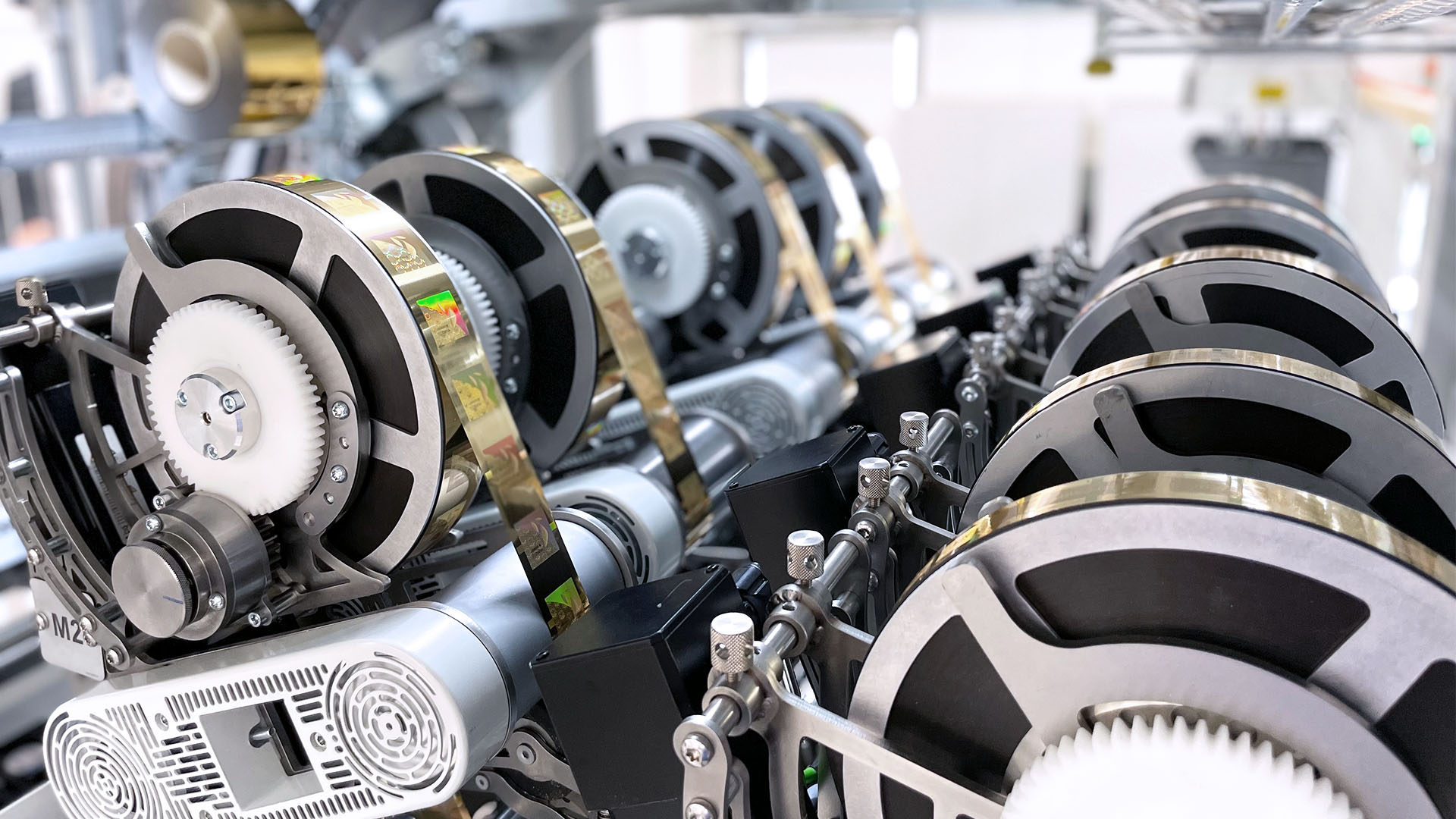

Hologram modules
- Up to 10 hologram modules can be mounted on 2 transversal rails
- Modules can be set up individually on the rails, according to production needs
- Allows maximum efficiency over the 106 width
- Possibility to run complex designs for brand protection in one single pass
Efficient production
- Powerful gripper bar advance system for smooth sheet transport
- Great machine stability, ensuring production continuity and product quality

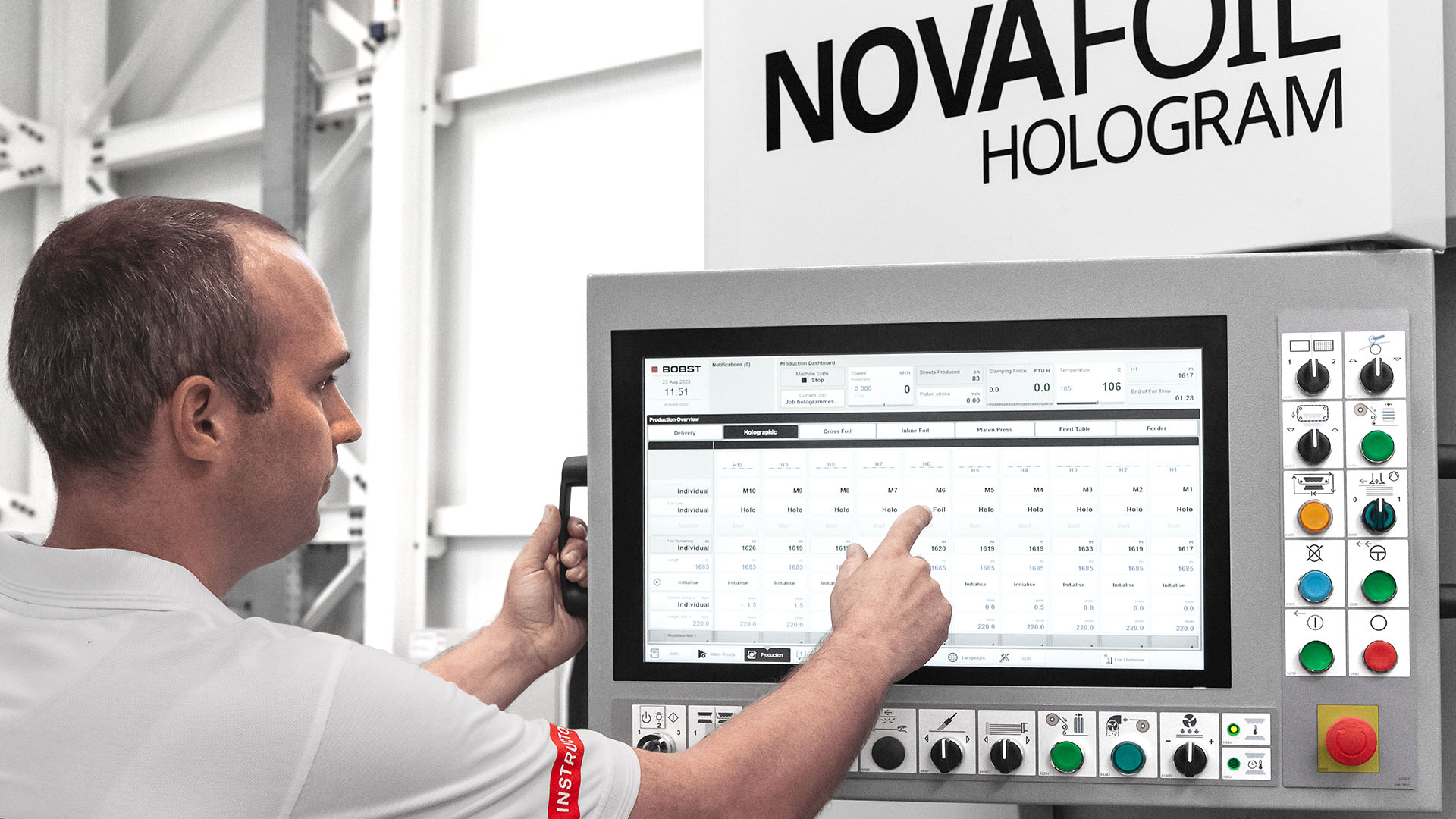

HMI SPHERE
- SPHERE provides a single point of control for all functions of the machine
- Intuitive and operator-friendly navigation with step-by-step setup
- Possibility to recall of up to 5,000 job settings
- Allows swift setups and changeovers for more machine uptime
- SPHERE allows machines and data to be connected in one comprehensive platform
Dedicated register
- A register for every reel ensures perfect application precision
- Electronic system on the modules reads the hologram or pre-printed marks to control the film advance
- Advance shaft equipped with pressure rollers for perfect film tension
Adaptability and control
- Easy and safe sampling for quality control during production
- Different equipment packs allow to further adjust the production for specific materials
- Paperfree quality control with the Digital Inspection Table (DIT) 106 ensures precision and traceability
