User-friendly, flexible, efficient

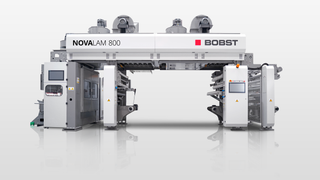

Increased user-friendliness is the name of the game of the multi-technology NOVALAM 800's new 2023 design. The 4 column layout enables better accessibility for quality control and considerably speeds up the operator's tasks enabling faster and easier web infeed, cleaning and maintenance. Features of the highly efficient NOVALAM 800 include availability of BOBST flexo trolley for high-speed coating of solvent-based adhesive with high solid content and the new 3-roll laminating nip. Furthermore, the machine can use all the trolleys of BOBST laminators, which are interchangeable.
Key benefits
Compact, automated and connected
- Compact design with lateral trolley extraction
- The new NOVALAM 800 layout is characterized by a 4 colums design: two separating the coating section from the primary unwider, and two separating the bonding section and the rewinder from the secondary unwinder, granting:
- Optimum accessibility for easier and faster web infeed
- Easier and quicker cleaning and maintenance operations, considerably reducing machine downtime
- Fully integrated HMI for setting, display and storage of individual job working parameters in easy to recall job recipes
- The operator can easily and rapidly switch between jobs
- Connectivity features for full production and quality control.
Superb product quality and sustainable operation
- Very precise web handling on all substrates types, thicknesses and web combinations. Excellent performance at speed with critical substrates such as thin alu-foil, metallized films, and thin stretchable materials
- New 3-roller laminating nip for enhanced optical quality of the laminate
- Latest trolley design delivering coating uniformity and visual appeal with all applications
- Flat drying tunnel and perfect web transportation by motorized rollers, avoiding breakages and scratches on critical substrates like alu-foil and metallized film
- Unique cost saving solution of BOBST flexo trolley: less adhesive required and up to 50% less solvent
- Motorized pressure roller for more accurate and uniform adhesive metering, ideal for multi-roller and reverse coating technology
- Exclusive Registron® Mark-to-Mark reading technology for in-register cold seal coating and lacquer coating, enabling real time reading and detection of cold seal presence, avoiding costly non-conformities.
High flexibility and productivity
- Designed to efficiently handle different film and paper substrates and consumables types: both conventional substrates and those designed for recycling
- Highly productive from ultrashort run upwards
- Multi-trolley design for different process technologies:
- Solvent-based and water-based dry lamination
- Solventless lamination
- In register cold seal coating on pre-printed substrates
- In-register printing of one additional color
- Lamination speed up to 450 m/min.
Product specifications
| Capability | |
|---|---|
| Web width | 1030 - 1530 mm 40.5 - 60.2 in |
| Speed | max 450 m/min max 1476 ft/min |
| Drying tunnel length | 6 m |
| Technology | Multi-technology Multi-technology |
Main processed material
End-use categories
