MULTILOADER

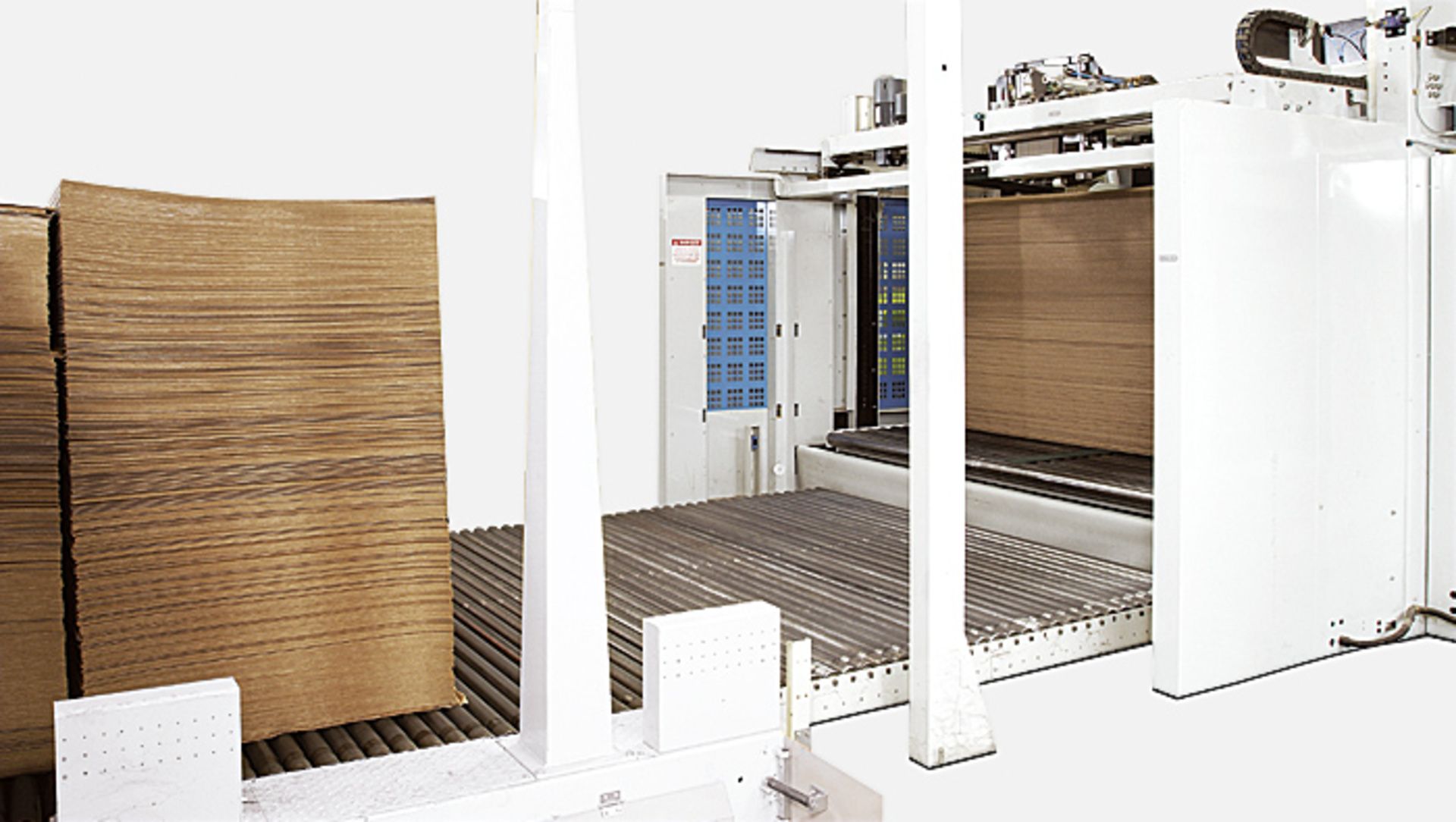

Multiloader inlet

Brings and accumulates the piles at Multiloader inlet

• Motorized conveyors
• 3, 6 or 9 meters conveyors (118", 226" or 354")

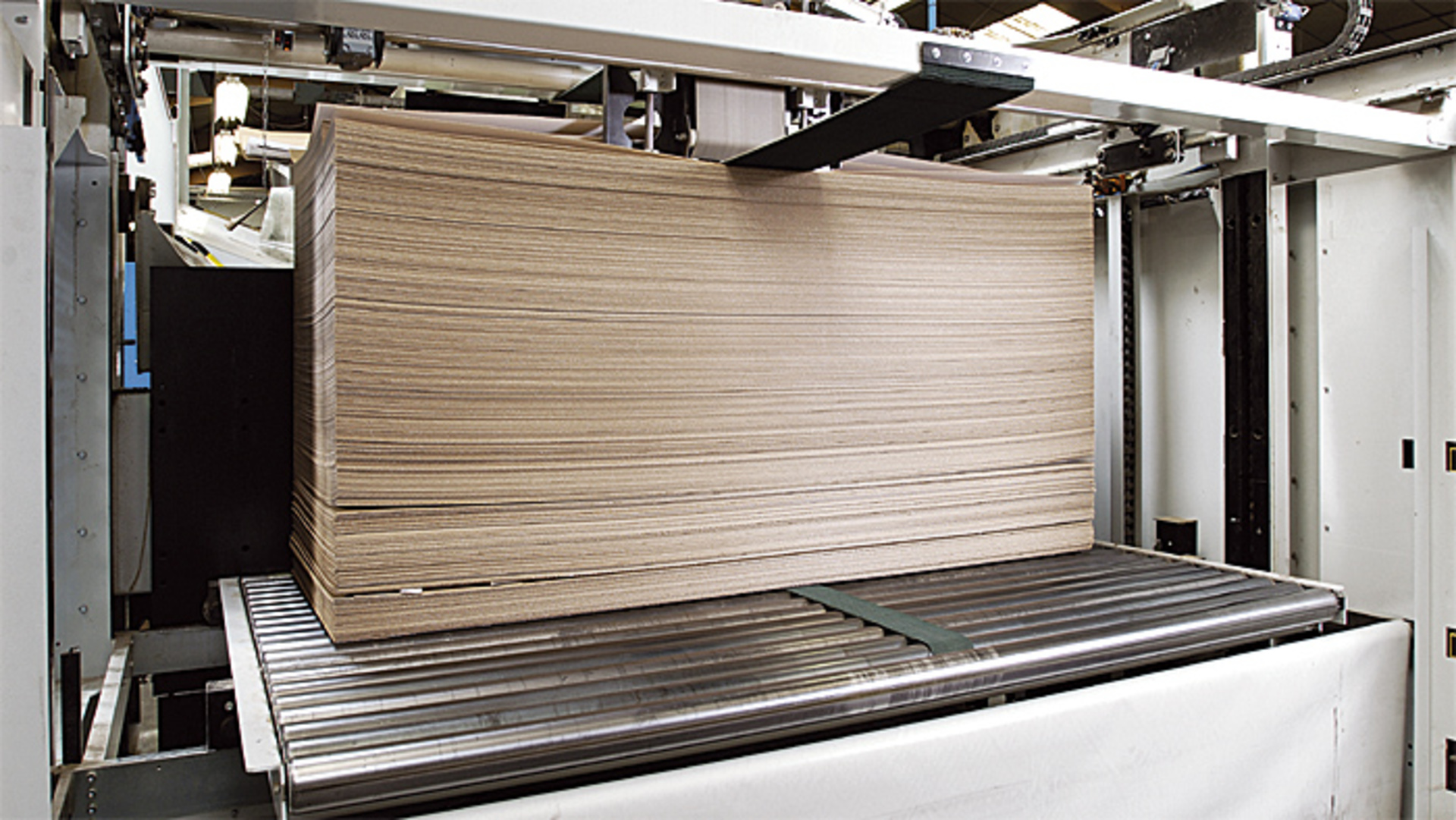

Lifting table

Separates the piles coming out of the inlet conveyor

• Pile centering can be controlled on each side (option) the table lateral motions are controlled by photoelectric cells reading the pile edge

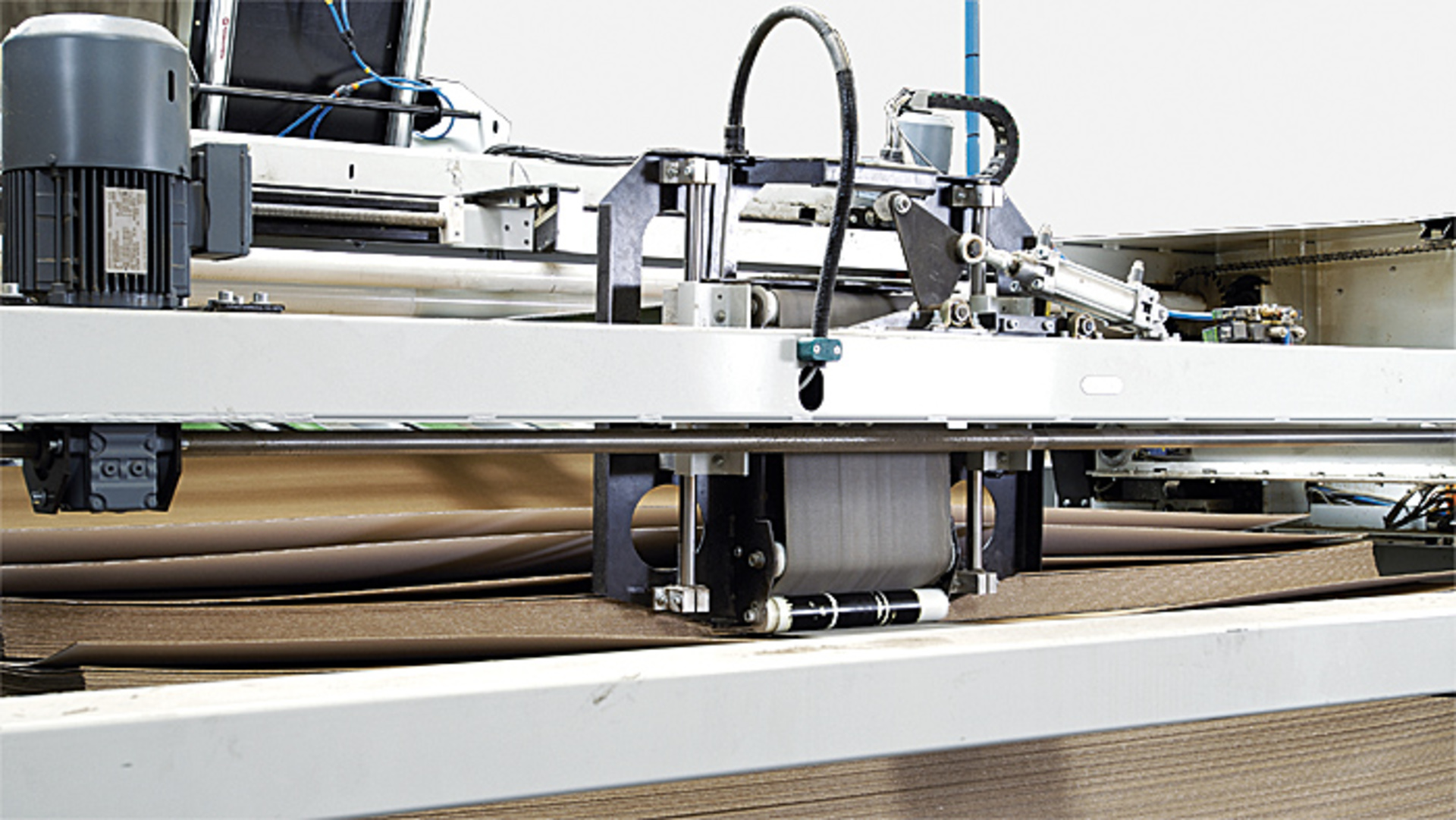

Pusher separator

Pushes the bundle of a certain thickness, from the pile towards the telescopic bridge

• A pressure ramp with belts allows a clean separation by holding the sheets at the pile top

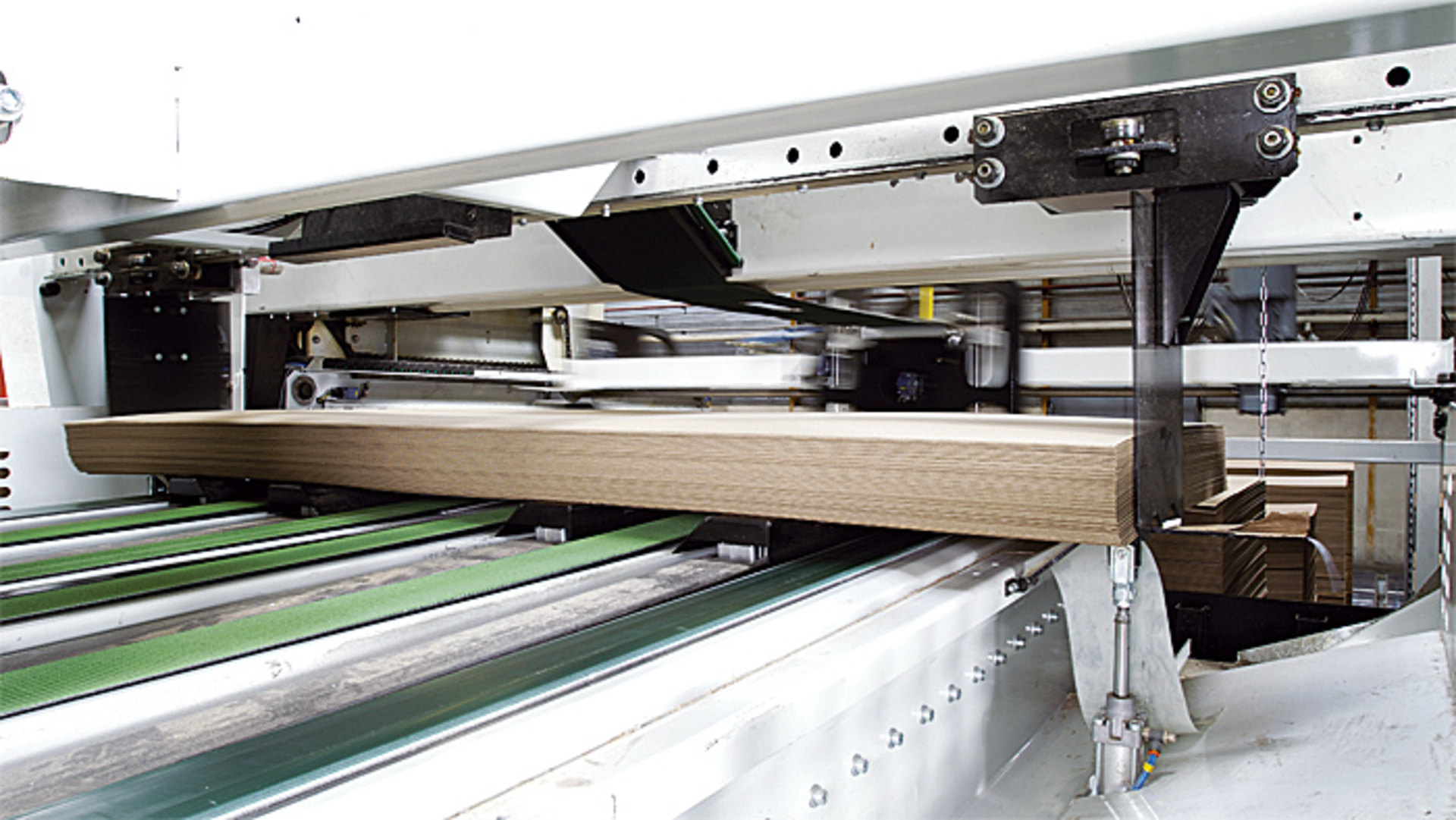

Side Squaring at Multiloader

Centers and square the bundle before 'shingling' the sheets.

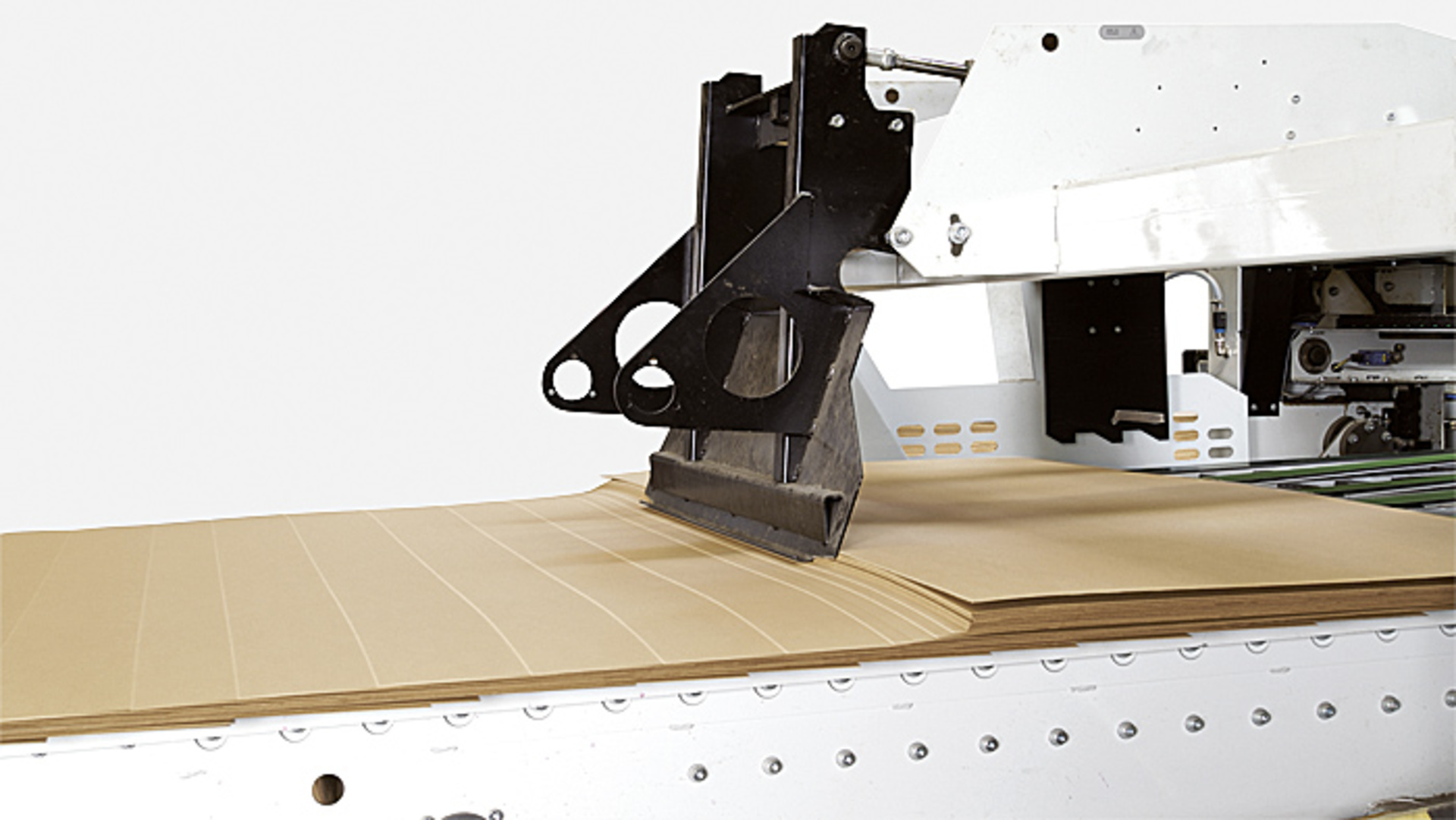

Refeed plate

Shingles the sheets

• The 'shingling' of the sheets is achieved by a tilted and mobile plate, adjustable in height

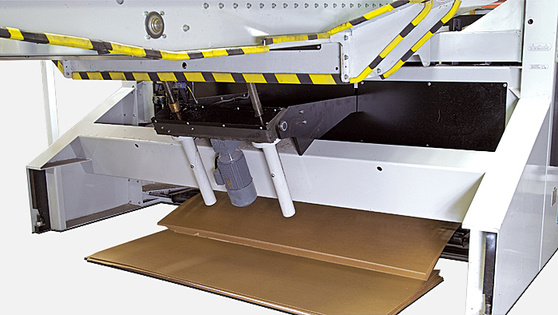

Last sheets removal

Evacuates the last sheets of the pile, still on the lifting table

• The operator can leave on the lifting table the last damaged sheets of the pile for evacuation (adjustable height)
• The remaining sheets are automatically evacuated when feeding the next pile

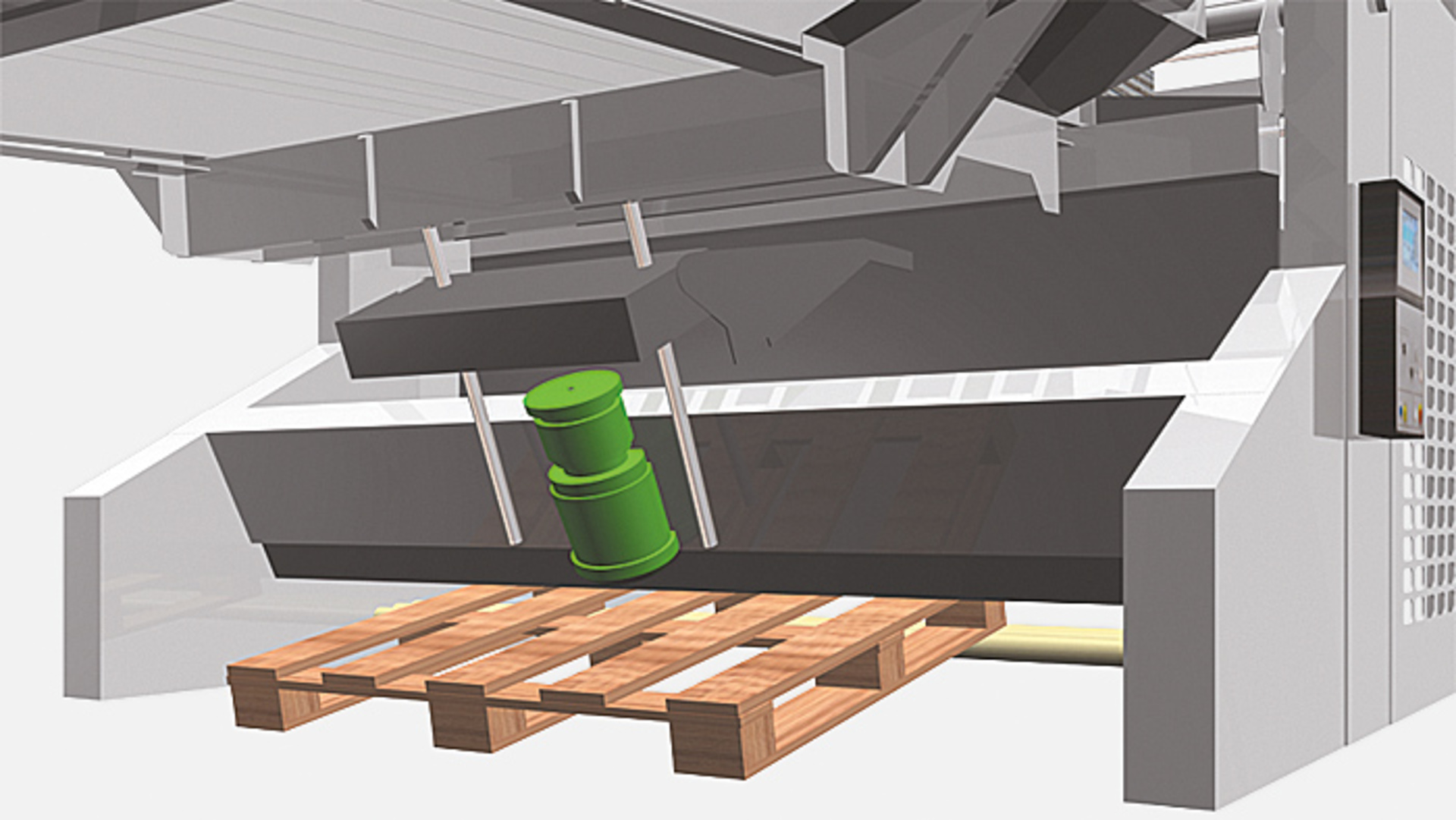

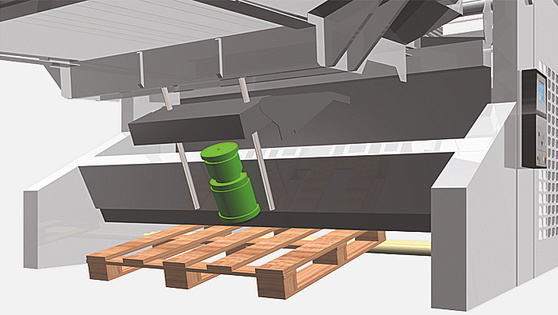

Pallet evacuation

In case the prefeeder takes piles with pallets

• These pallets are evacuated with the last sheets
• The empty pallet is evacuated on rolls in board direction
• Lateral evacuation of pallets (fixed Multiloader) by means of a conveyor (option)
