EXPERTCUT 1.7 | 2.1 - Autoplaten® die-cutter

Bottom Feeder

• Rear sheet support with lateral and rear jogging for perfect sheet alignment
• Lateral joggers with blower for perfect sheet insertion even with microflutes
• Low drop, preventing possible sheet damage
• Vacuum suction plate handles all types of materials from microflute, litho-laminates to double-wall

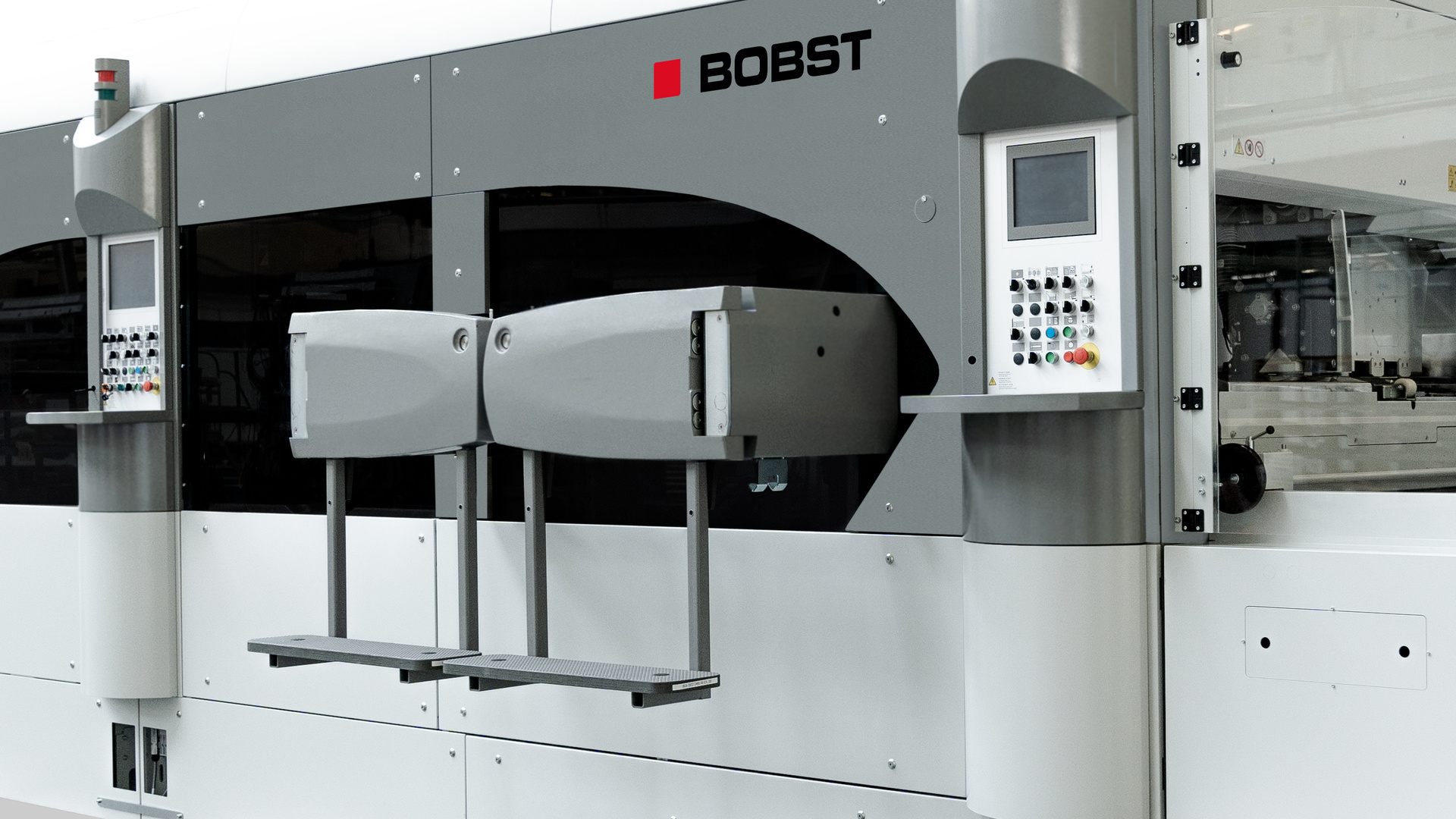

Platen section

• Completely new design and minimal deformation
• Reductions in make-ready time and set-up time as well as cutting force needed
• Substantially increased machine up-time and tool life
• Paired with a chase loader productivity is further increased because the next job is prepared off-press and changeover is fast and easy

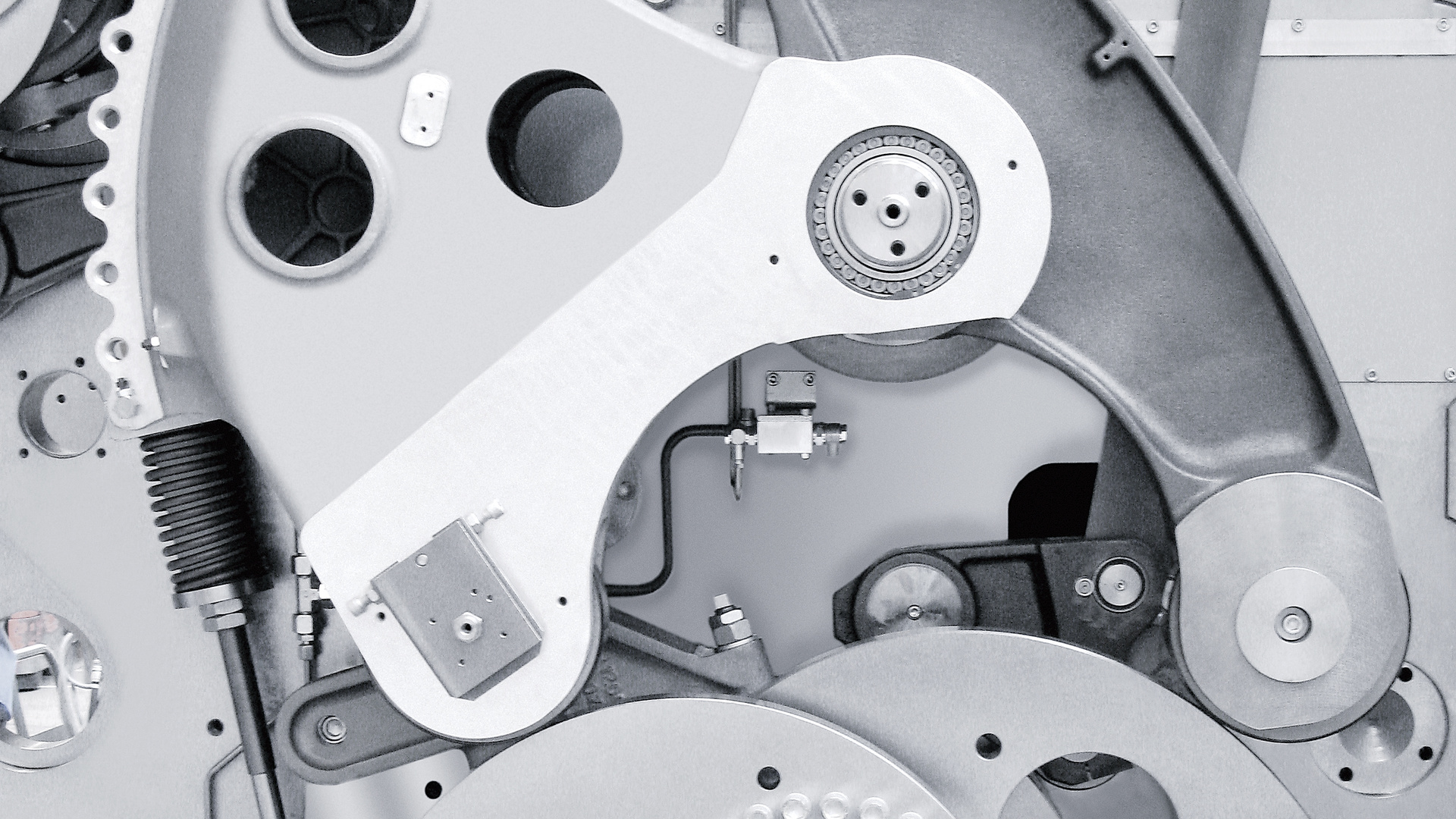

Double Cam gripper bar advance

• Accelerates and decelerates sheets in the smoothest way possible
• The new lower gripper position further enhances flat sheet travel, reducing stress on the sheet as it travels through the machine and allowing for higher production speeds
• Smaller contact points for improved finished product quality

MATIC (Optional Equipment)

• Comprehensive, easy-to-use human-machine interface
• Automatic set-up of the platen and peripheral equipment at a touch of a button
• Unlimited job data can be stored and recalled for even faster repeat job set-up
• Less operator intervention, more automation, faster machine start-up, higher productivit

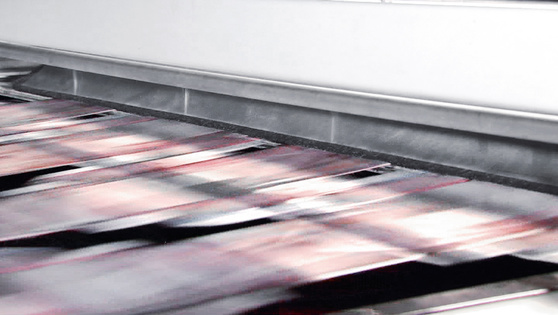

Delivery
