MASTERCUT 106 PER - Autoplaten® die-cutter

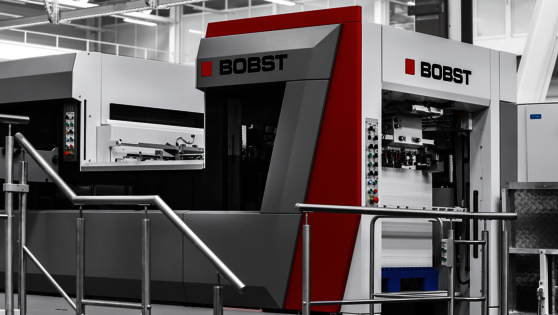

SMART FEEDER 3

• Intelligent system providing smooth and precise sheet feeding
• Automatic detection of sheet size and thickness
• No operator intervention needed
• Dramatically cuts feed errors

POWER REGISTER 3

• Larger range correction, avoiding feed related stops
• Powerful servo-motors
• Integrated auto teach in function
• Fully automatic positioning of lateral camera reduces setting times

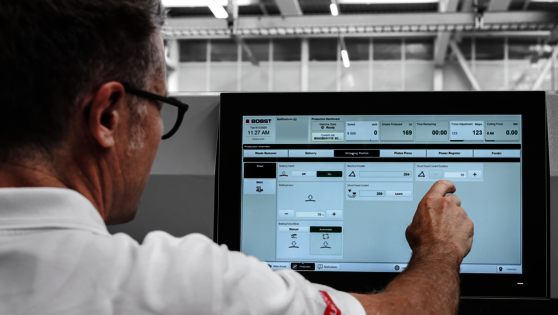

HMI SPHERE

• Controlled by the advanced BOBST Human Machine Interface (HMI)
• Large 22” full color, high definition touch screen
• All settings appear on one screen for more convenient and intuitive navigation
• Can store up to 5 000 job set-ups to minimize setting time

MATIC

• Allows for a vast number of automatic setting features
• Shortens set-up time and reduces operator intervention

MATIC Plus

• Fully automatic settings of stripping and blanking tools for minimum operator intervention and maximum uptime
• Thanks to cameras, tools are perfectly positioned in register to the printed sheet

TooLink

• This unique system allows automatic job recall without any operator intervention
• The chip-equipped tools are automatically detected by the machine and the production-ready recipe is recognized

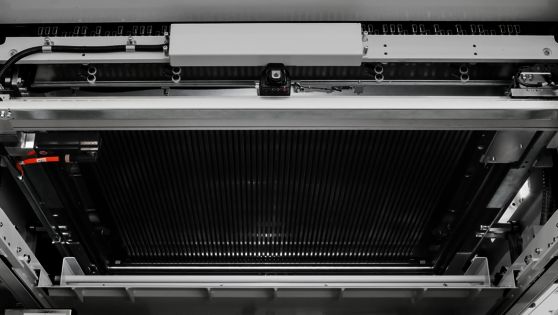

Smart non-stop

• Fully automatic setting of the non-stop rack system, in a few seconds, for the highest efficiency
• The system scans position of joggers on lower blanking tool and sets the swords accordingly
• Selected swords are displayed on the HMI SPHERE

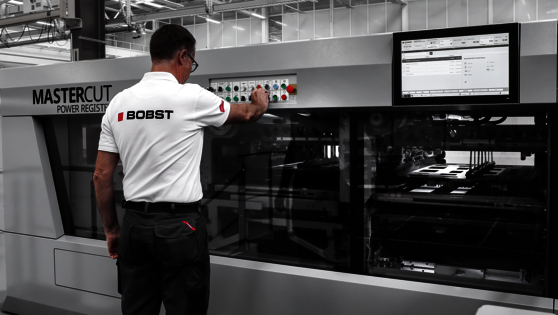

Full jam detection

• Complete control of blank stacking over the entire sheet size
• Automatic setting of paper jam detection allowing perfect stacking of blanks for unrivalled end product quality

World class ergonomics

• World’s only die-cutter that can be set from just one single point of control
• Integrated user interface
• "End job - New job" function
• Cuts set-up time to a minimum

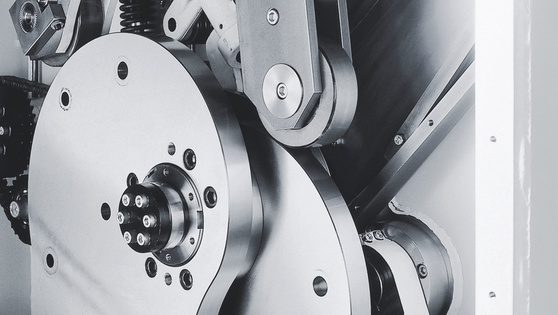

Double cam gripper bar advance
