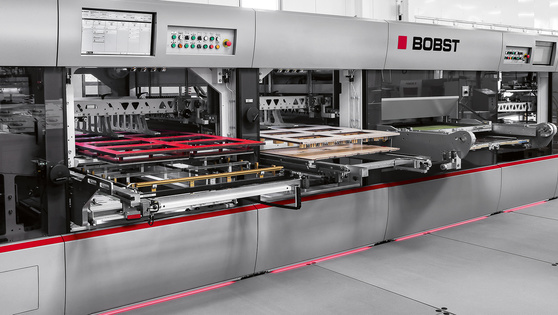

MASTERCUT 145 PER - Autoplaten® die-cutter

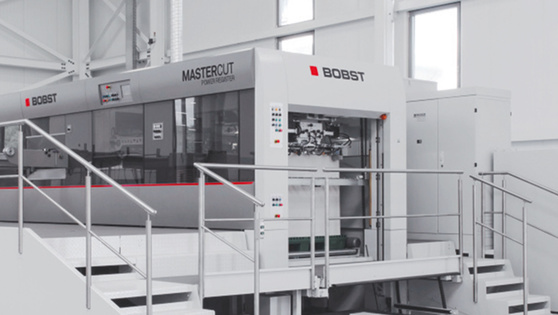

SMART FEEDER

• Reduces feed-related stoppages and improves your productivity
• Continuous stepless pile raising for optimal feed
• Automatic lateral pallet correction up to +/- 100 mm
• Perfect material flow due to anti-static feeding table with recessed belts

POWER REGISTER 2

• "No sheet-edge contact" system reduces feed related production stops
• Perfect positioning thanks to cameras checking sheet edge, register marks and print
• Automatic synchronization of the sheet arrival
• Unique bottom print registration feature

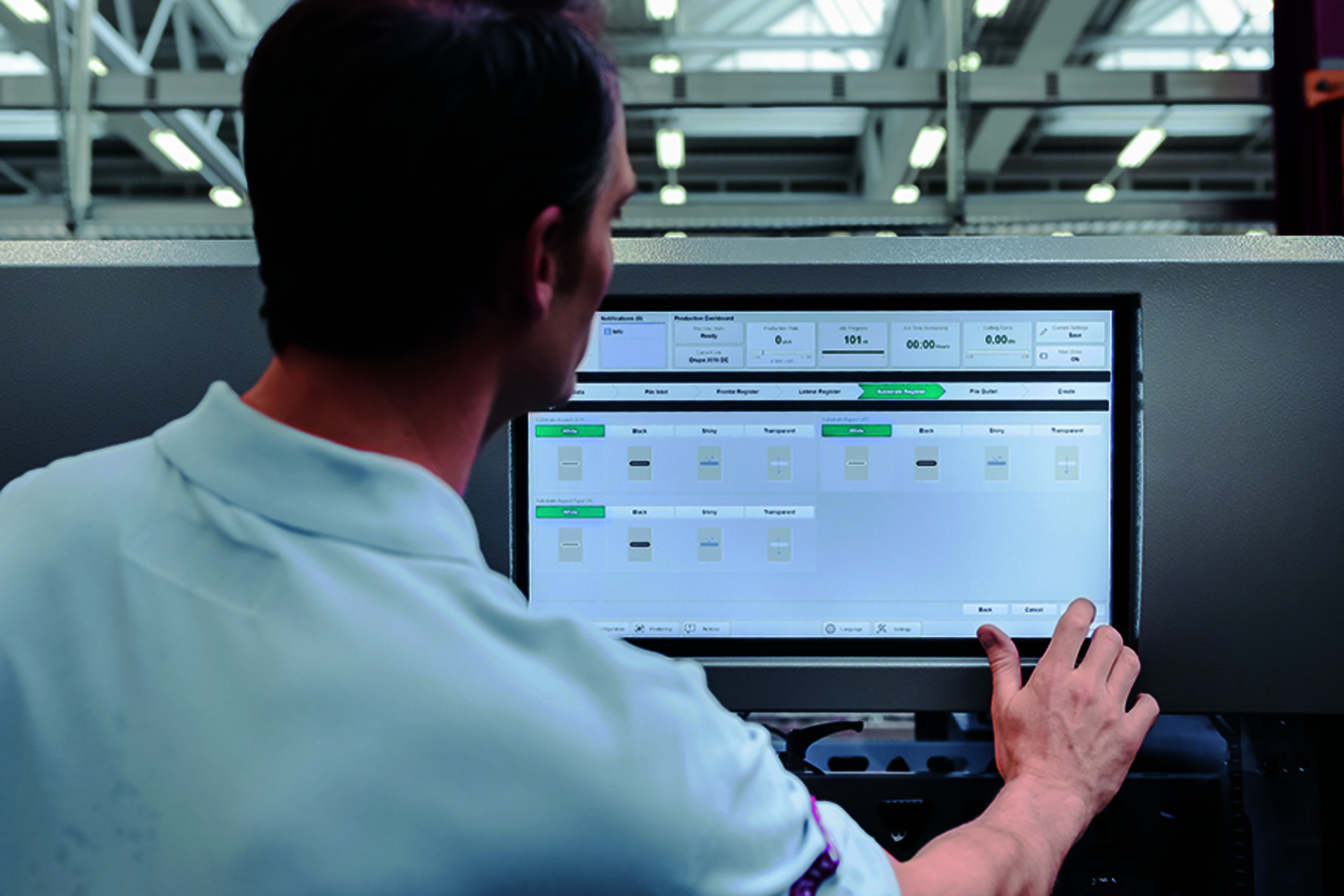

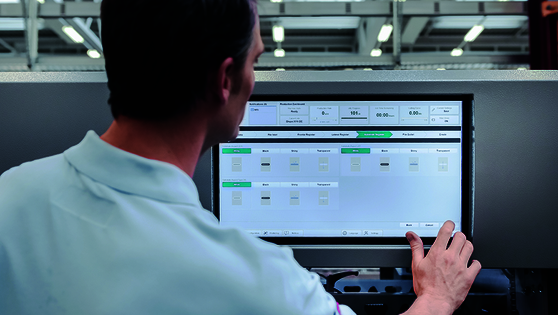

New HMI SPHERE

– Large 22” full color Human Machine Interface (HMI)
– Simple step-by-step procedure guides the operator through the job set-up process
– All settings appear on one screen for more convenient and intuitive navigation
– Can store up to 5,000 job set-ups to minimize setting time

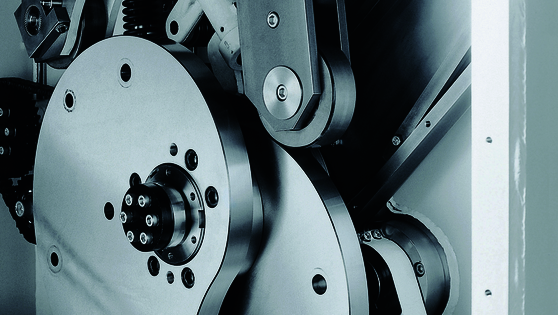

AUTOPLATEN ®

• Smoothest sheet acceleration drastically limit number and size of nicks
• Micrometric adjustment of supporting plate
• Quick Lock die-cutting chase for fast and easy setting
• Motorized cutting force adjustment

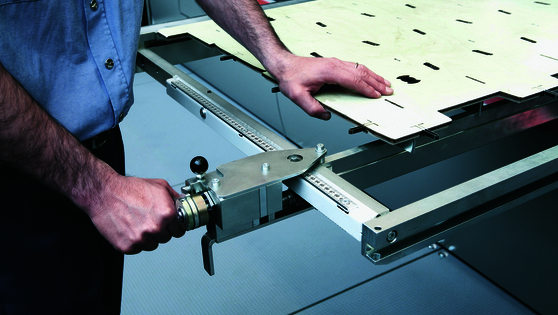

Stripping and blanking

• Even delicate or light materials are perfectly stripped at highest speeds
• Quick Lock frame for central stripping board
• Automatic gripper bar opening facilitates quality control
• Self-adjusting system stacks blanks perfectly

New MATIC

• MATIC system allows a vast number of automatic setting features, shortens set-up time and reduces operator intervention
• Quick and easy fitting of dedicated tools in the machine
• Camera guided tool positionning of stripping tools including third HMI
