MASTERCUT 1.7 | 2.1 - Autoplaten® die-cutter

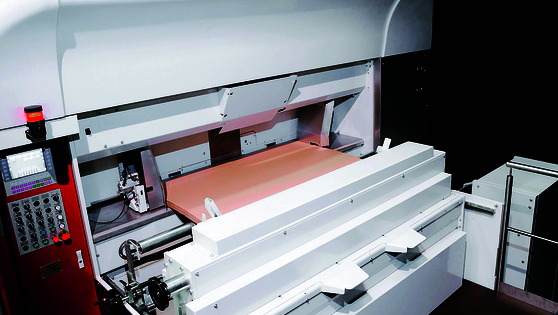

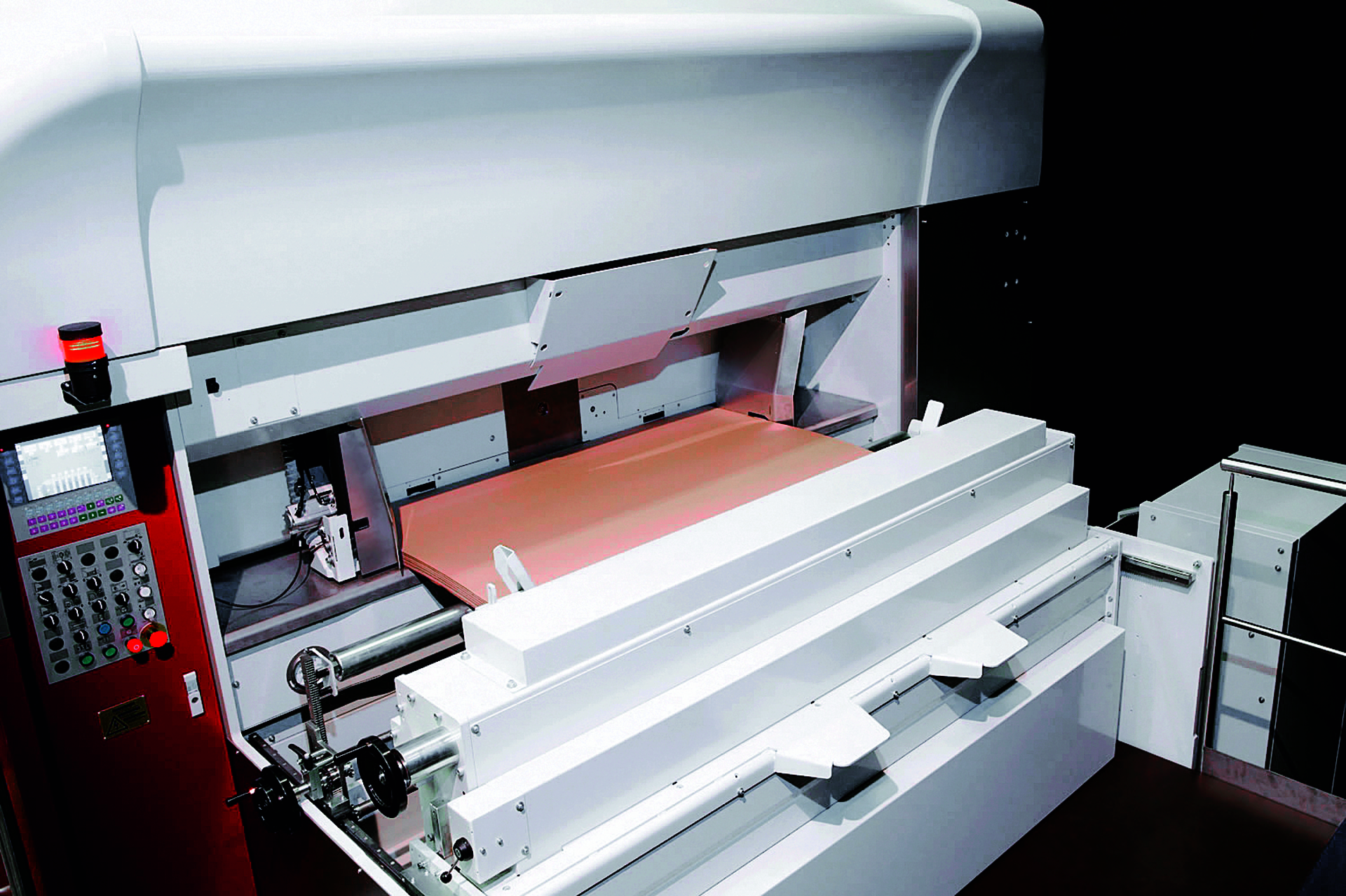

Bottom Feeder

  • Rear sheet support with lateral and rear jogging for perfect sheet alignment
  • Lateral joggers with blower for perfect sheet insertion even with microflutes
  • Low drop, preventing possible sheet damage
  • Vacuum suction plate handles all types of materials from microflute, litho-laminates to double-wall

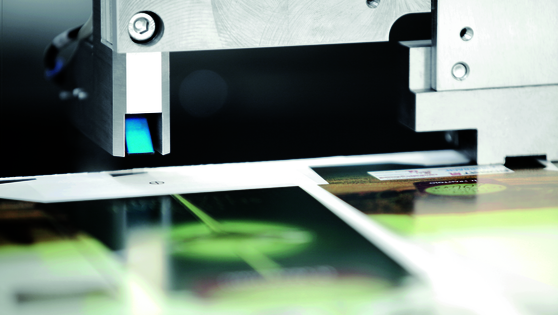

Power register

  • Dynamic optical register system
  • Reads either sheet edge or printed mark for flexibility in your layouts and substrate choice
  • Sheets are guided into the gripper bar in perfect register without mechanical contact
  • Guarantees highly accurate print-to-cut registration for impeccable die-cutting results

Platen section

  • Completely new design and minimal deformation
  • Reductions in make-ready time and set-up time as well as cutting force needed
  • Substantially increased machine up-time and tool life

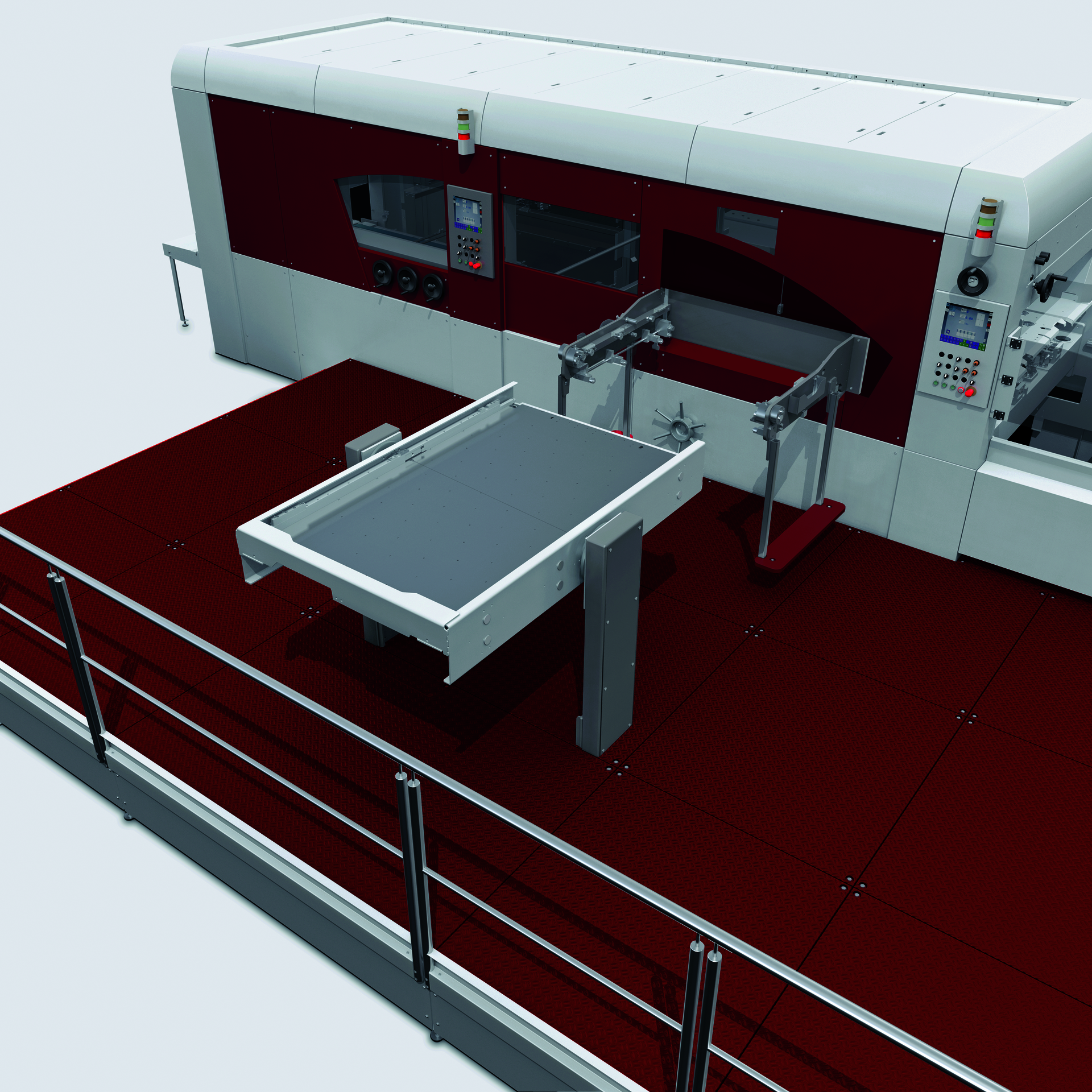

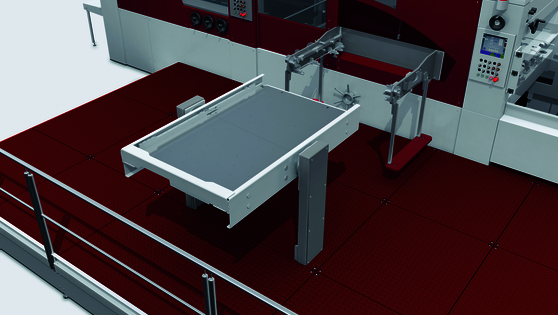

  • Paired with a chase loader productivity is further increased because the next job is prepared off-press and changeover is fast and easy

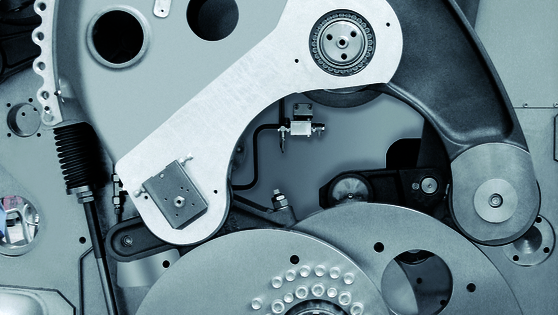

Double Cam gripper bar advance

  • Accelerates and decelerates sheets in the smoothest way possible
  • The new lower gripper position further enhances flat sheet travel, reducing stress on the sheet as it travels through the machine and allowing for higher production speeds
  • Smaller contact points for improved finished product quality

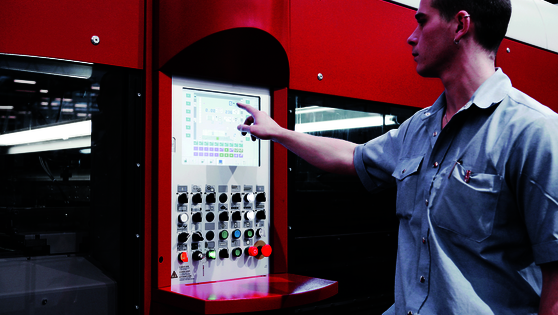

Matic

  • Comprehensive, easy-to-use human-machine interface
  • Automatic set-up of the platen and peripheral equipment at a touch of a button
  • Unlimited job data can be stored and recalled for even faster repeat job set-up
  • Less operator intervention, more automation, faster machine start-up, higher productivity

Delivery

  • Uninterrupted production while evacuating die-cut batches

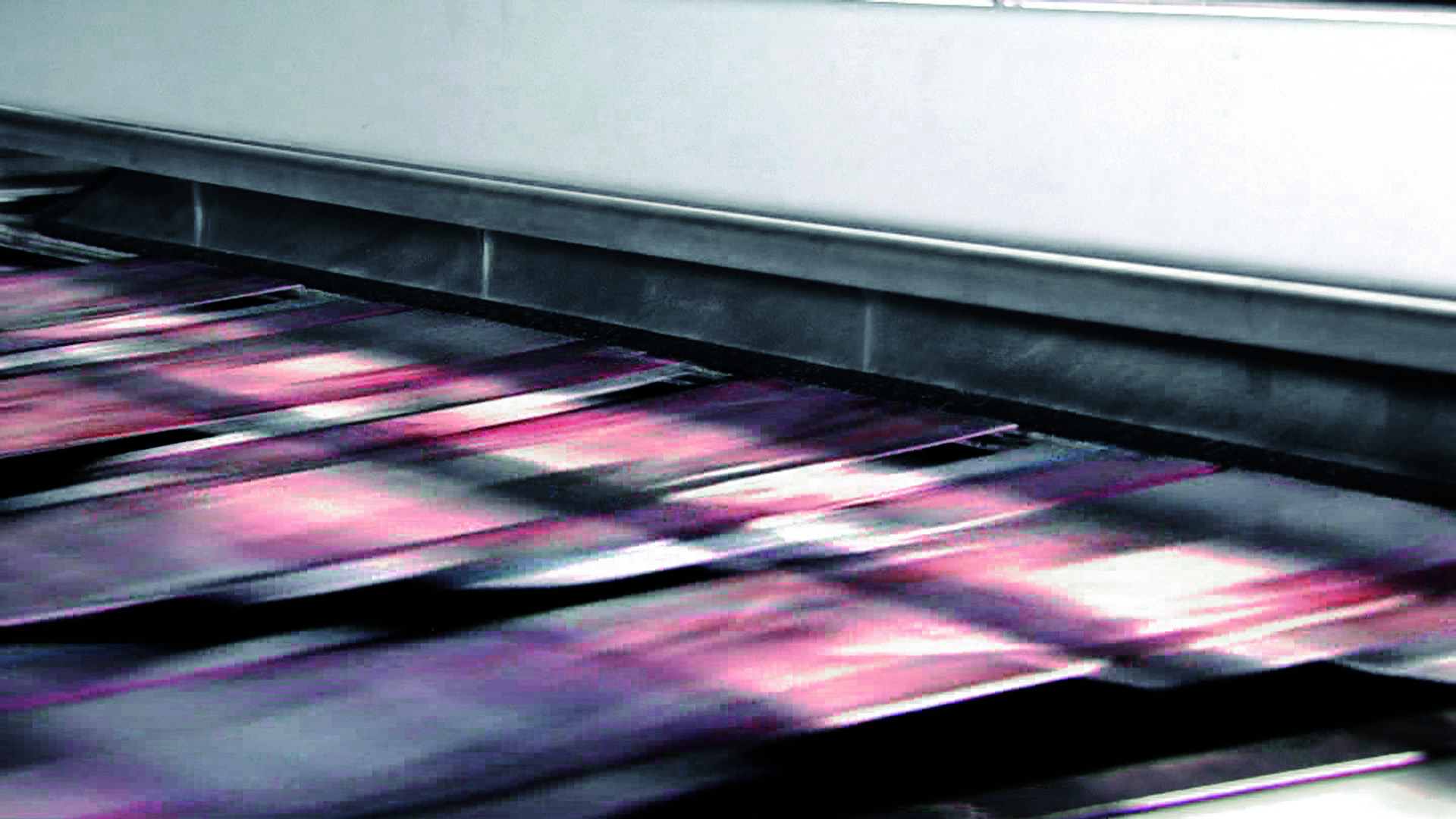

  • Electronically controlled braking brush for optimal sheet slow-down and stability
  • Especially useful for trailer-mounted jobs
  • Male-female ejection tool for accurate removal of front waste, even at full speed
