EXPERTFLEX - Flexo printing press

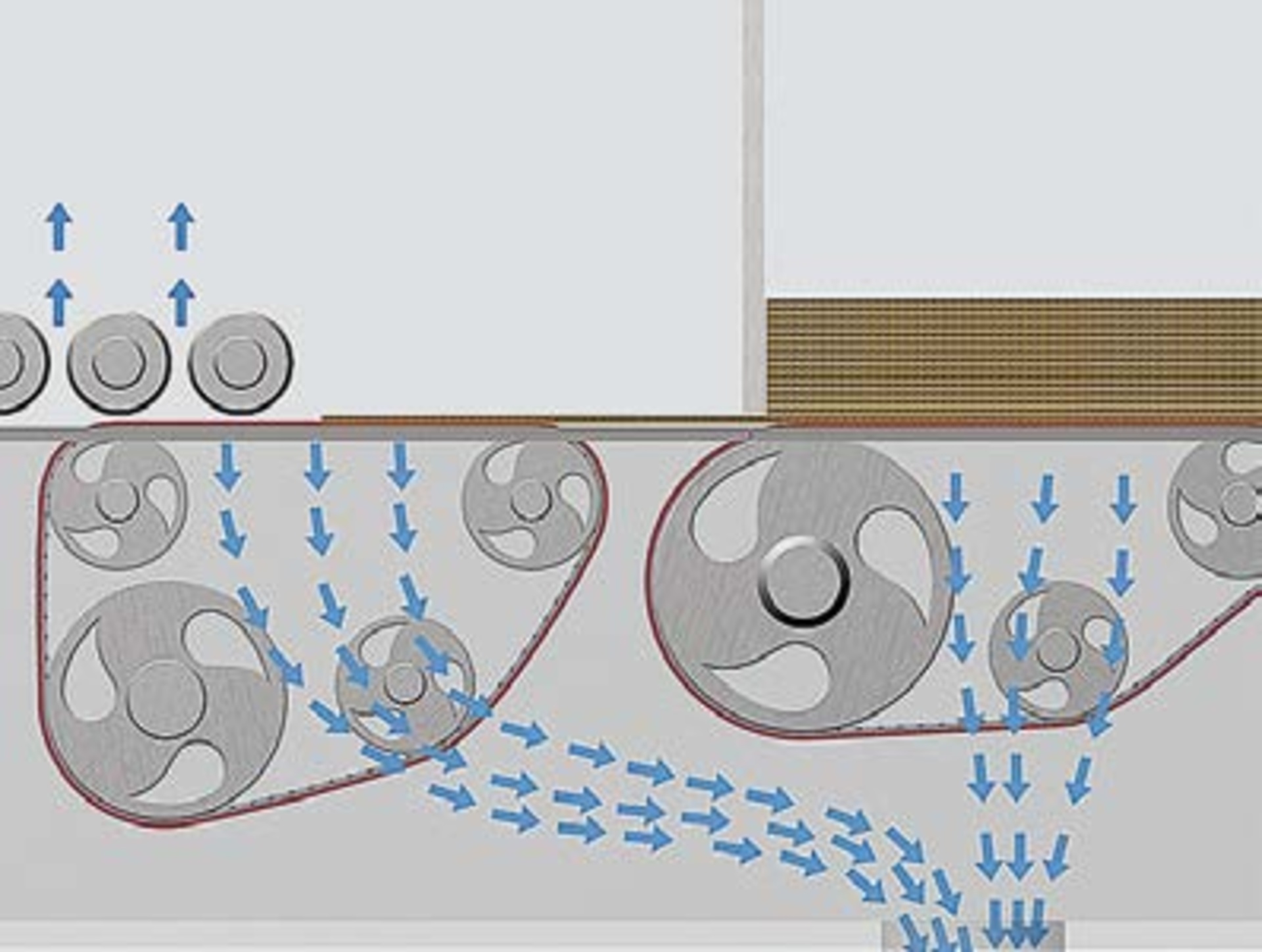

Smooth feeding

  • High speed belt infeed system
  • No crushed or marked sheets
  • Allows correction of the position of the front edge
  • Ensures the printing of the first color in register

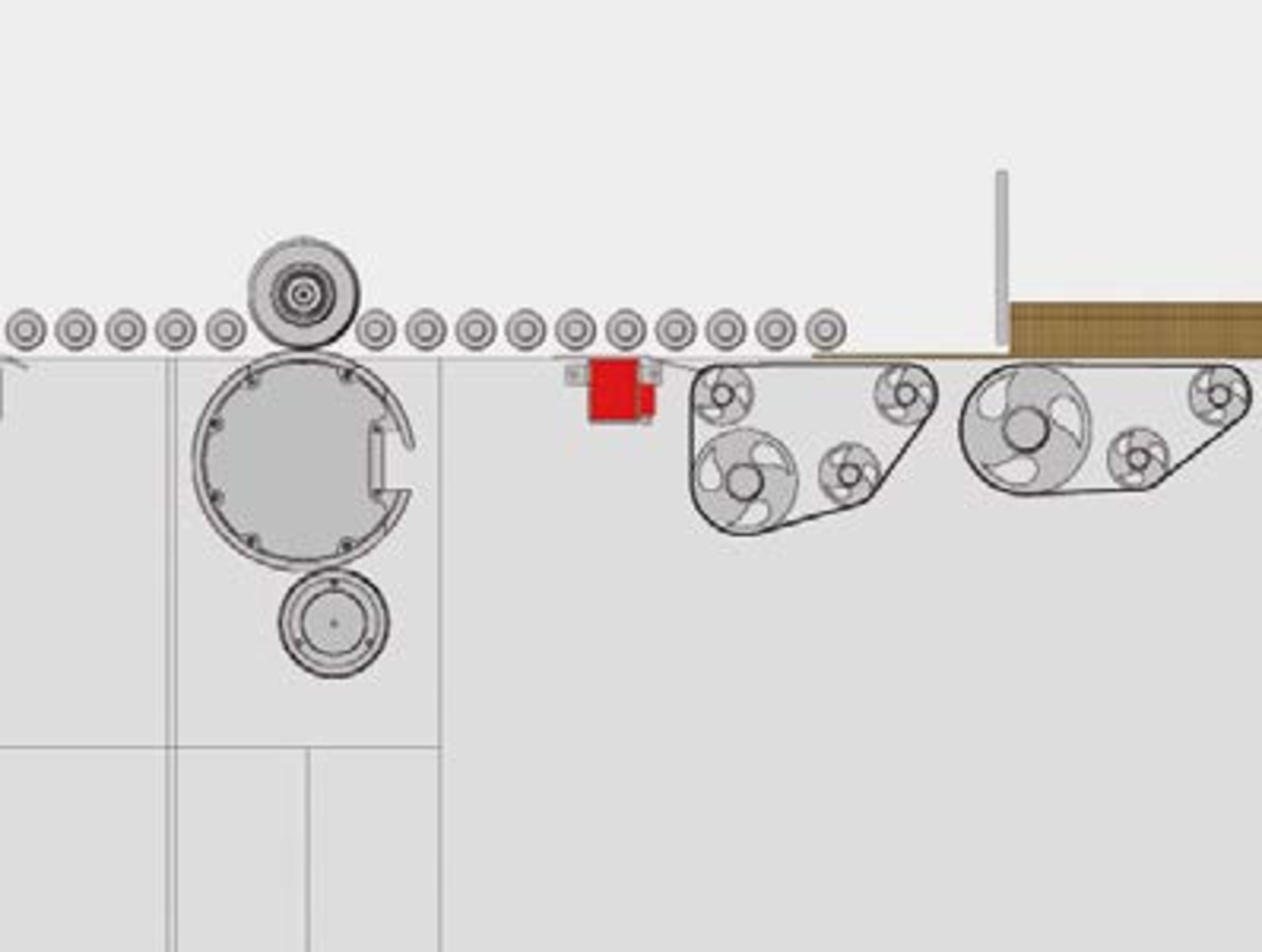

Perfect Register

  • A photocell at the in-feed detects the exact position of the sheet’s front edge and guarantees that the press prints the first color in exactly the right spot

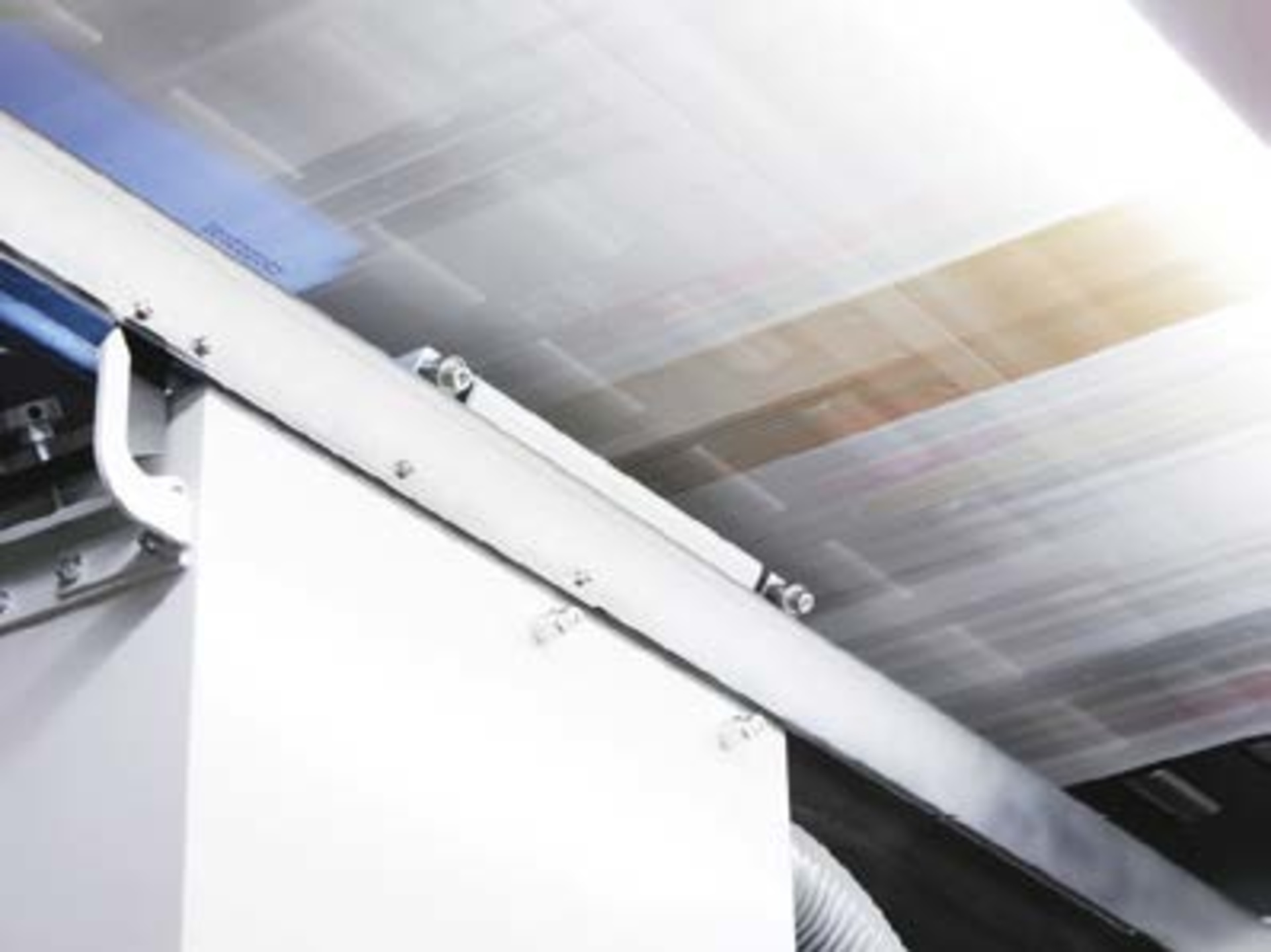

Start and go

  • Revolutionary Start & Go System system that senses printed marks on the sheet, automatically bringing into register each print unit on start-up and throughout production
  • Adjusts print length, skew, transverse and longitudinal register
  • Substantial reduction in set-up times and number of sheets needed for start-up
  • No need for operator intervention, reducing human error

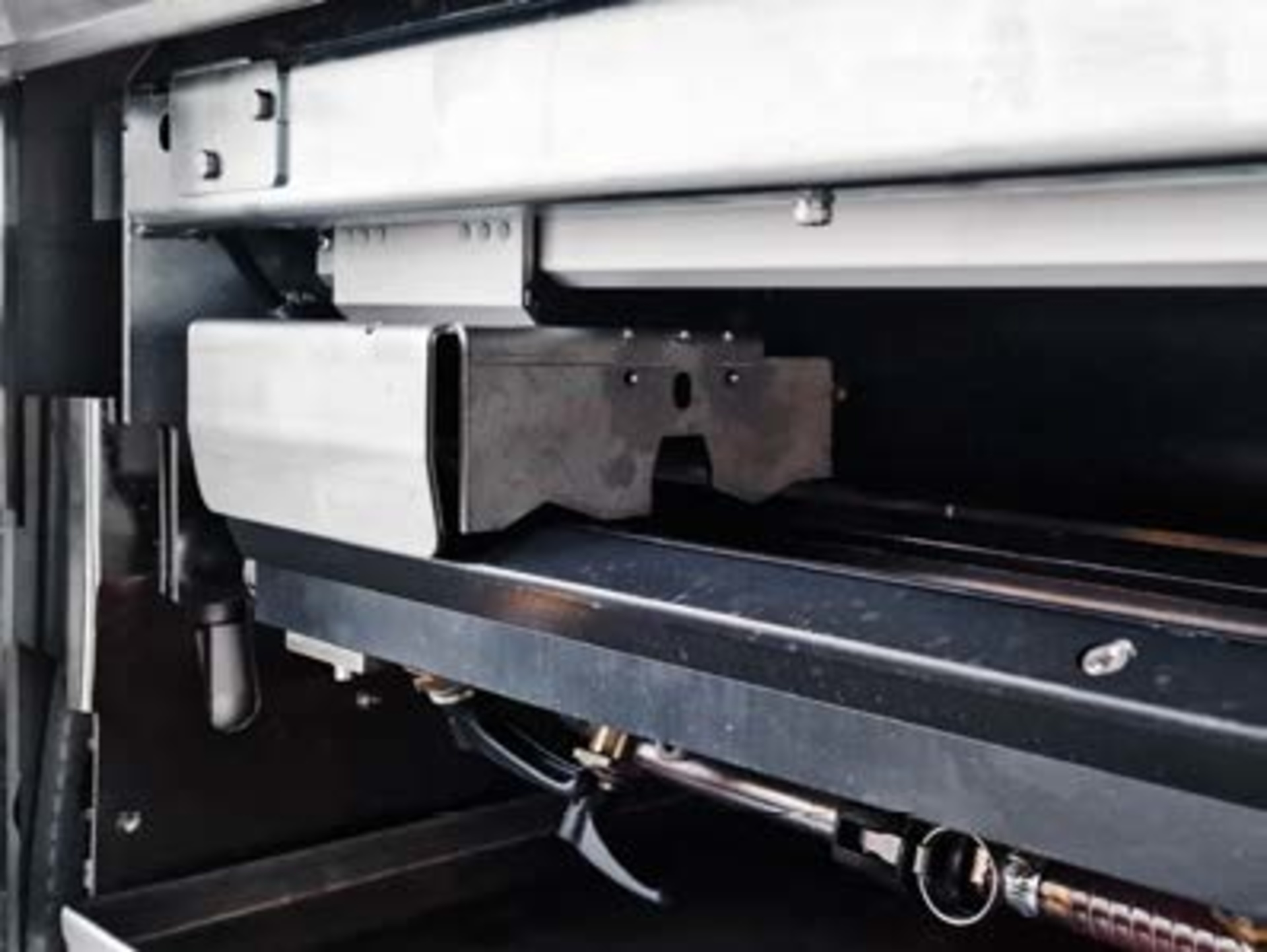

Ergonomics

  • Anilox roll changes in 20 min
  • Aluminum chambered doctor blades
  • Automatic inking and doctor blade wash-up system reduces ink and water consumption and cuts changeover times (option)
  • Handling trolley for Anilox cylinder
  • Not in use printing units can be prepared while the machine is running

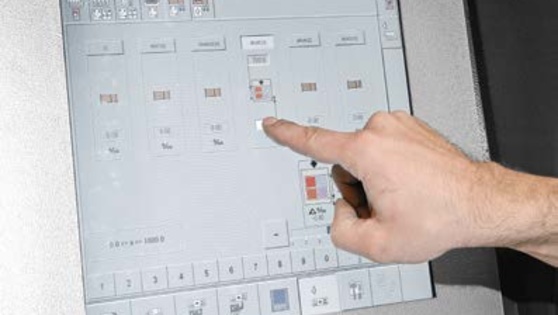

Taking control

  • Touch screen operator interface is intuitive and easy to use

  • Allows the adjustment of all parameters and includes an indicator showing the state of the machine

  • The built in MATIC system manages the memorizing of specifications for repeat work, allowing their automatic re-setting and adjustment

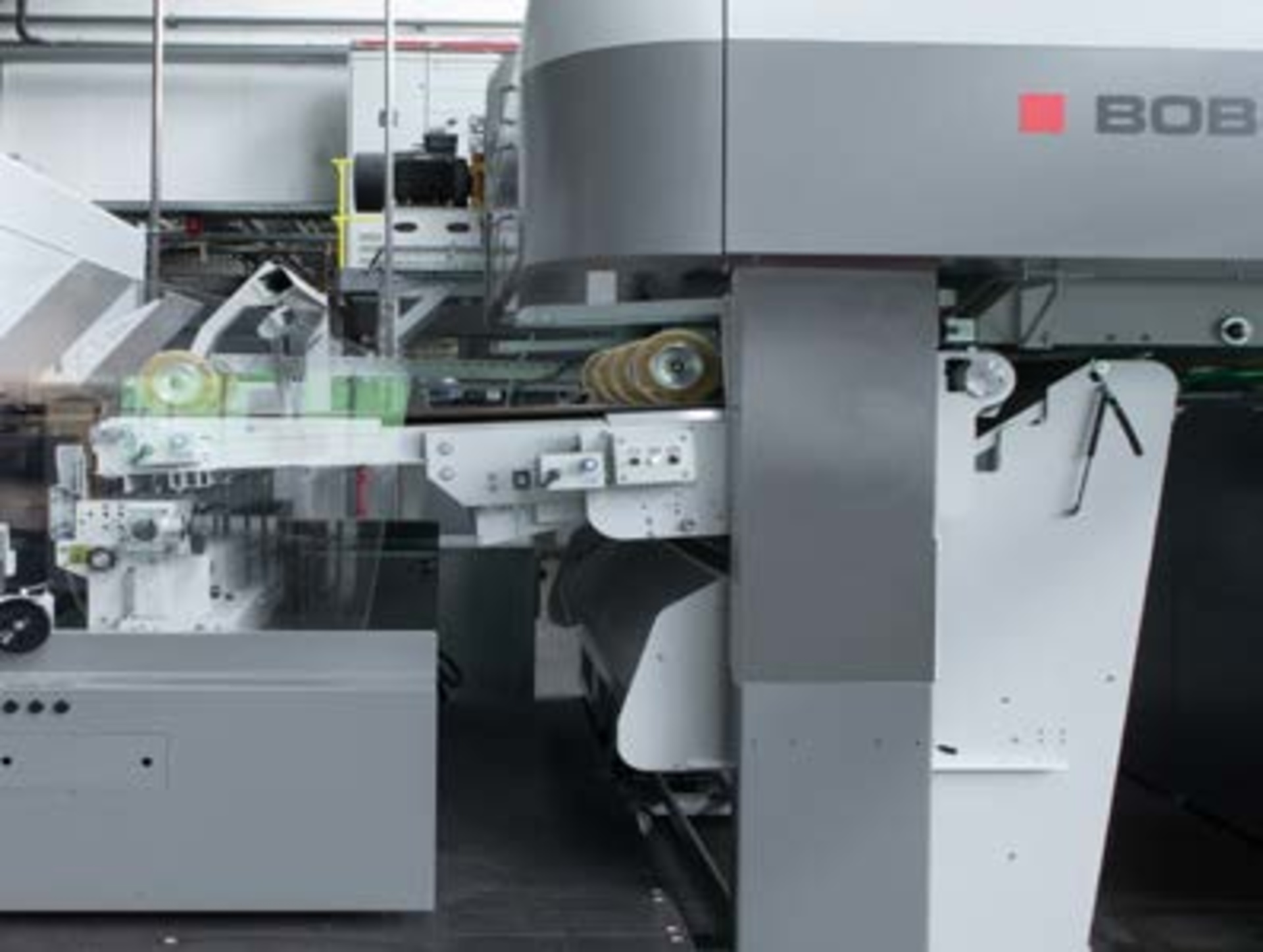

Transportation

  • Conveyor for sheet transport and shingling for feeding again into platen
  • Sheet ejector and collecting recipient
