FFG 8.20 BS DISCOVERY - Flexo folder gluer

Accurate feeding

DFB Feeder - Direct Feed Belt

• Feed belt feeder
• Ideal for light weight board

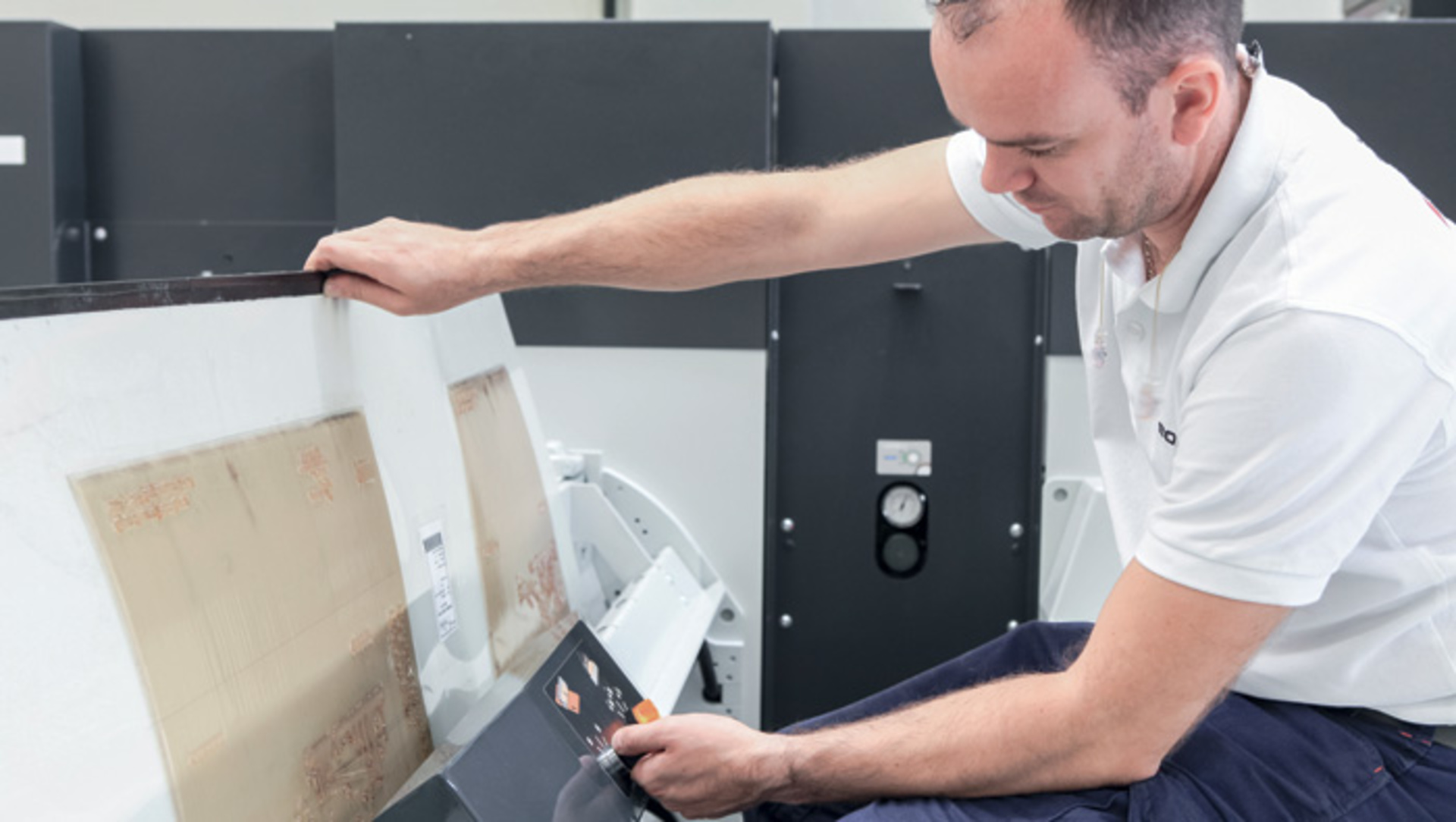

Quick mounting of the printing dies

Fixed Top Flexo

• Order changeover during the run - Rapidset system
• Automatic printing plate tensioning
• Carbon fiber doctor blade chambers
• Ready for integration of dryers on each flexo unit

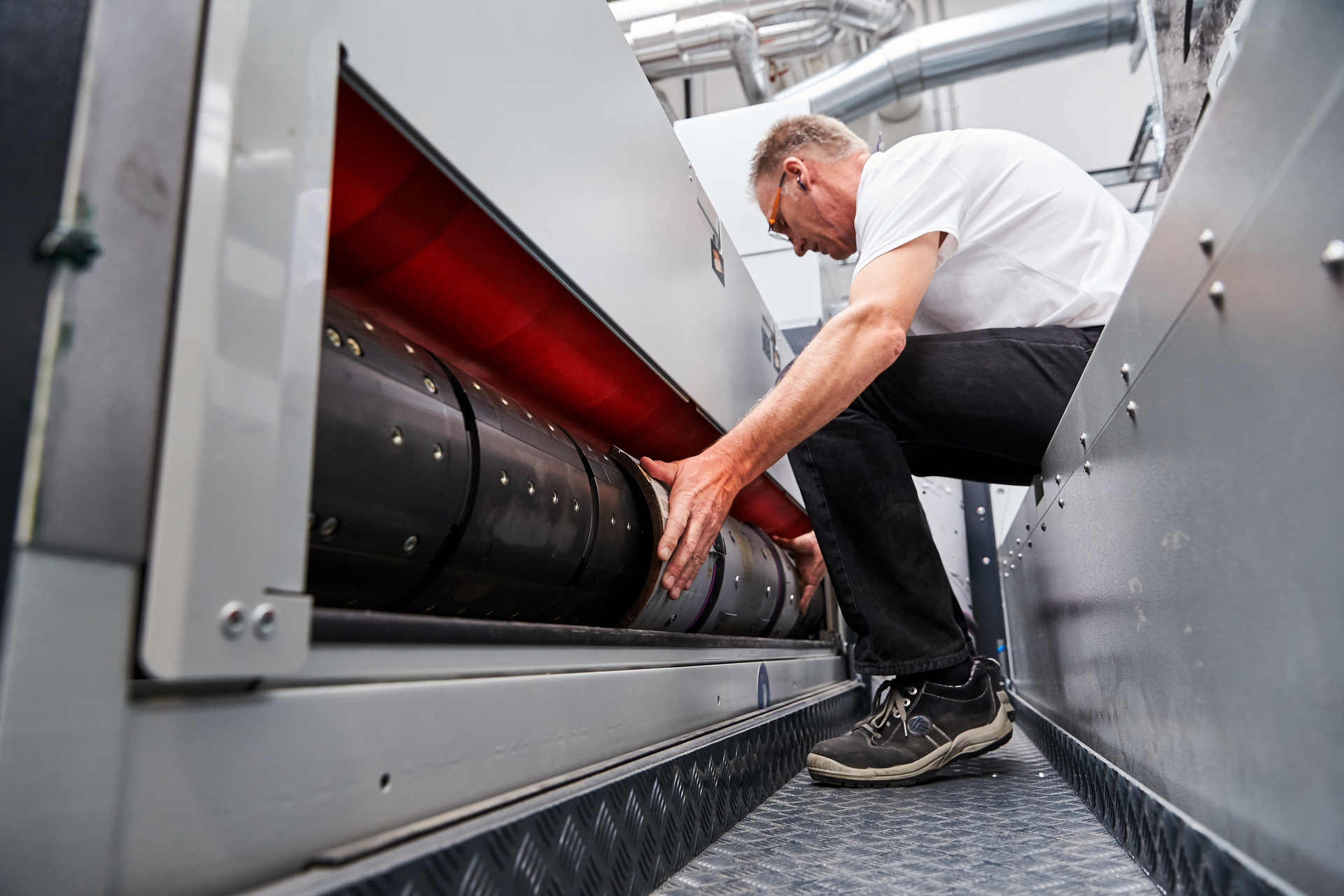

Accurate bottom scoring after printing

Bottom Scoring Unit

• For inside scoring
• Perfect box geometry
• Cutting and perforating are independant
• Easy access to die forms
• Variable anvil speed

Quick mounting of the die-cutting tools

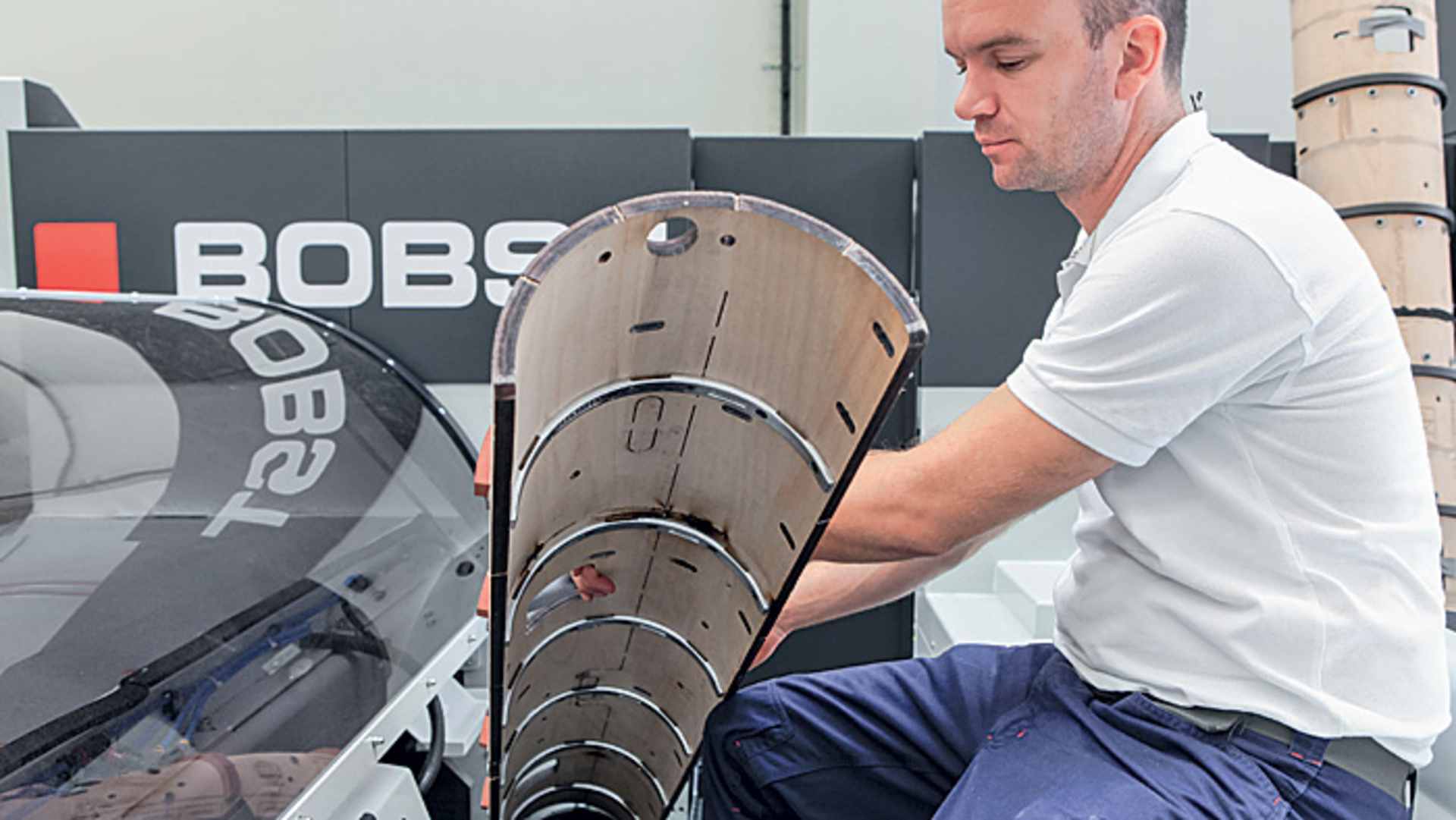

Top Rotary Die-cutter

• Posilock^® system
• Variable anvil speed
• Automatic anvil grinding

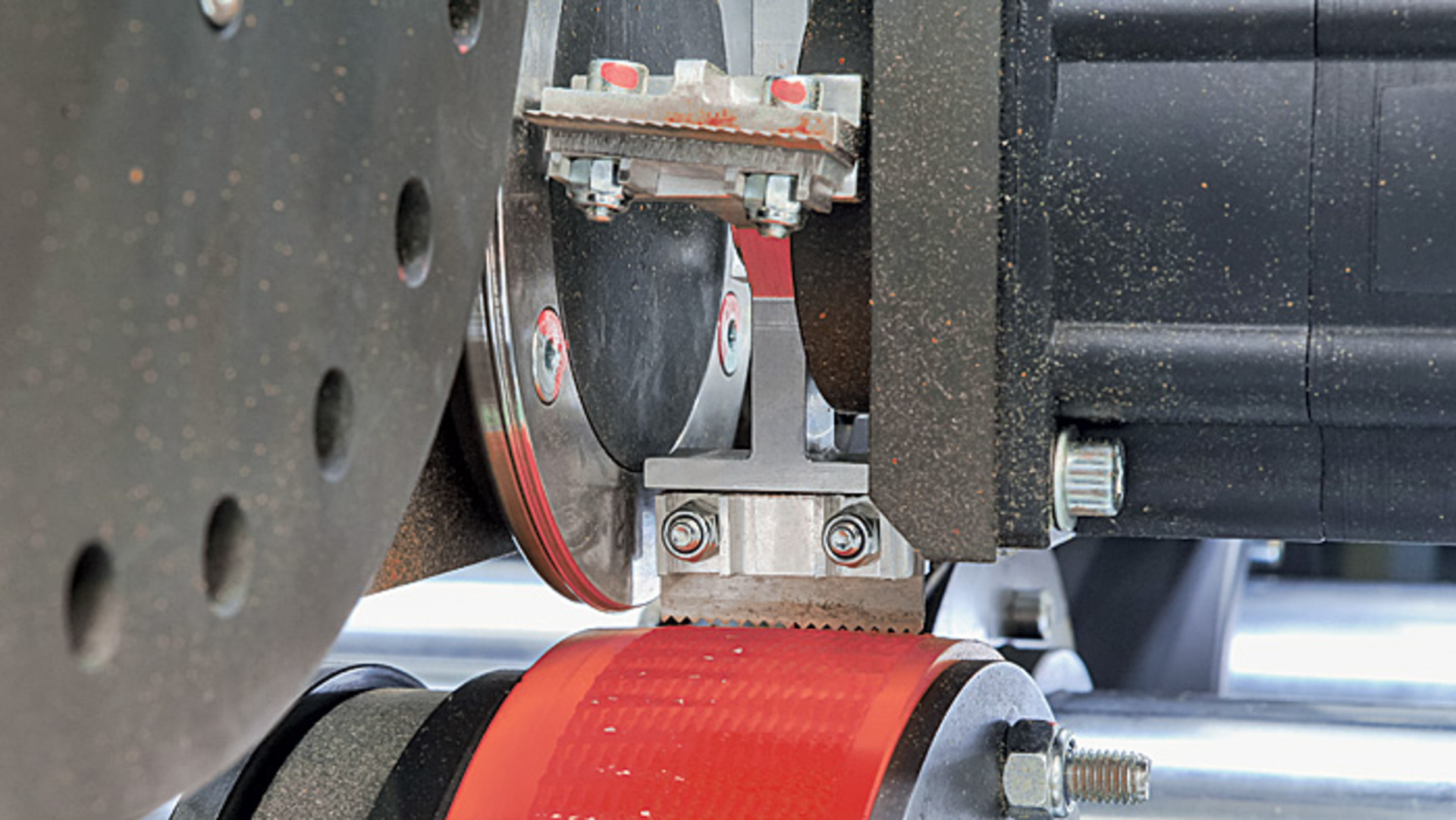

Highly automated Slotter

Slotter - 4 pairs of shafts

• Prescoring, rear slot, scoring, front slot
• Double scoring profile
• Low maintenance costs

Automated lap cutting with independent drive

• Automated glue lap extension
• Waste free lap cutting
• Set-up through MPC4

Accurate and consistent folding

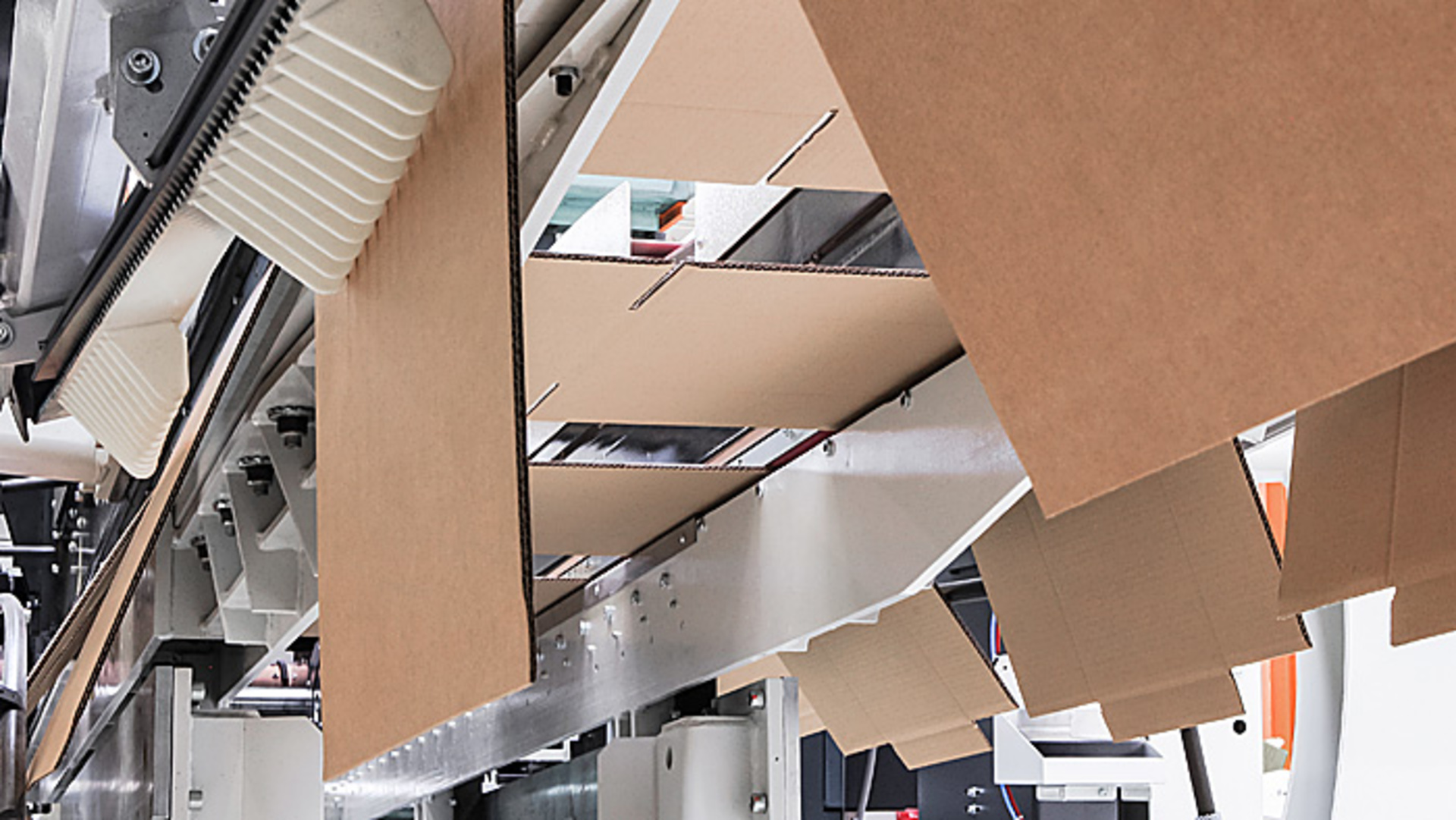

Folder-Gluer - Multi-T folding section

• Consistent gap by means of motorized gauge rollers
• Progressive folding at high speed with Multi-T belts
• Lower conveying belts with independent motorization on right and left side
• Fluid Folding ®

Perfect counting at rated speed

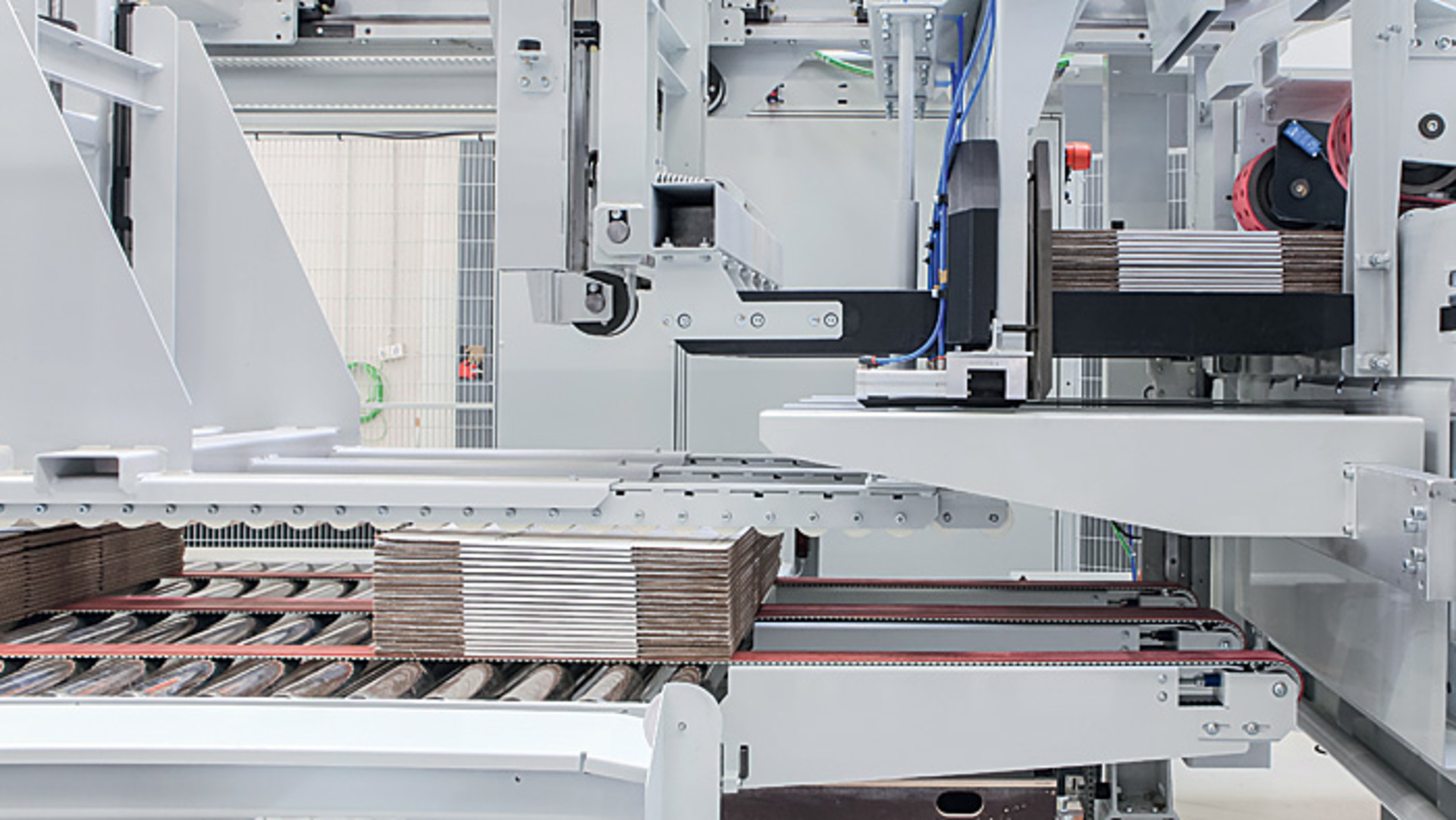

Top Counter

• Synchronized resquaring of boxes

Easy Drive

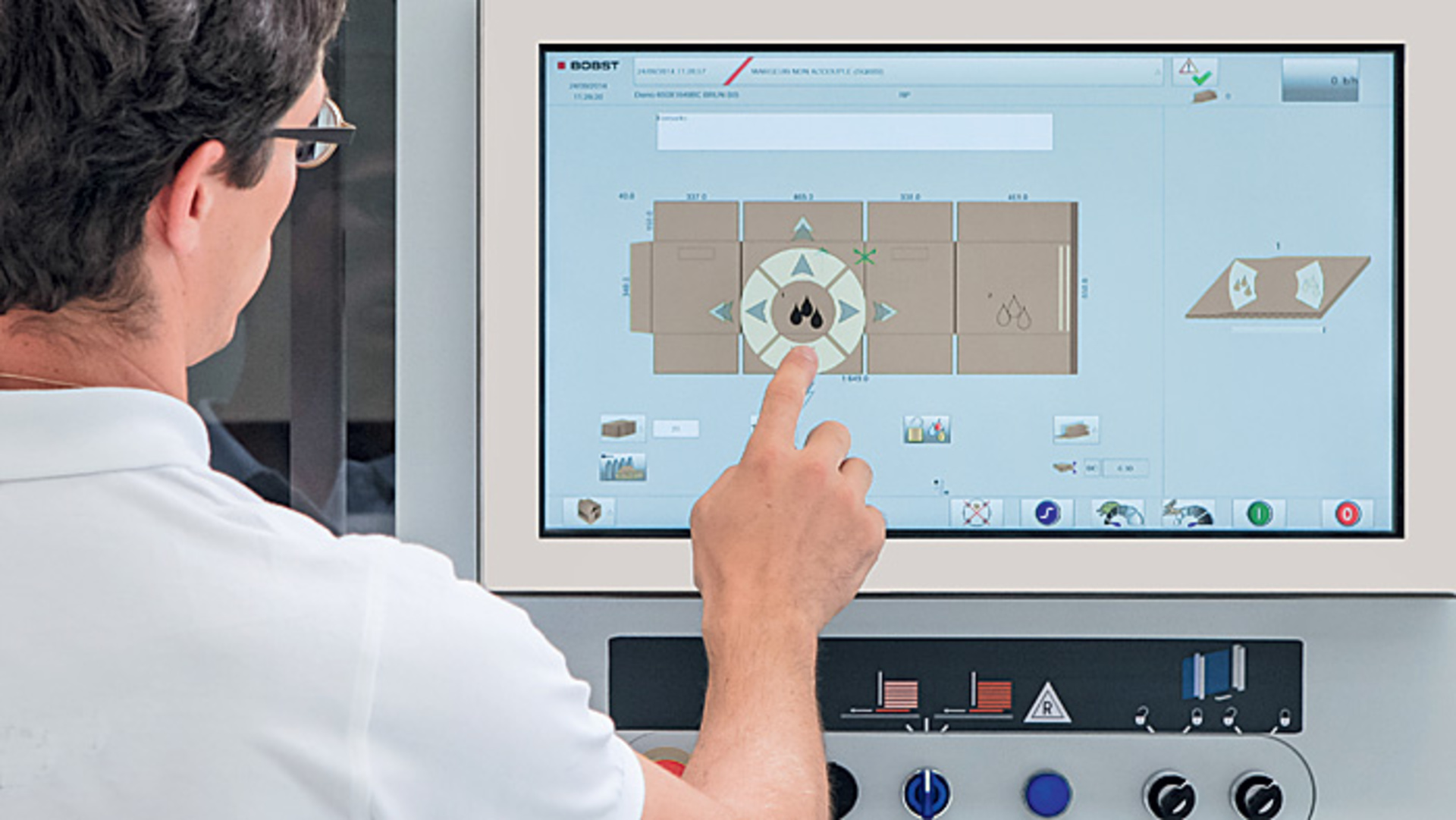

MPC4 : Unique man-machine interface

• Full control of your machine, the operator sets the box on the screen
• Step-by-step process monitoring
• Simple and intuitive set-ups
• Color touch screens with graphic mode, no text
• BOBST patent

Increased reliability and improved maintenance

MMPC : Maintenance Management & Productivity Control

• Visualizing and monitoring the state of the machine
• Production data
• Preventive maintenance
• Maintenance guide, online documentation
• Low energy cost per manufactured box and reduced installed power
