EXPERTFOLD 145 | 165 - Folder-gluer

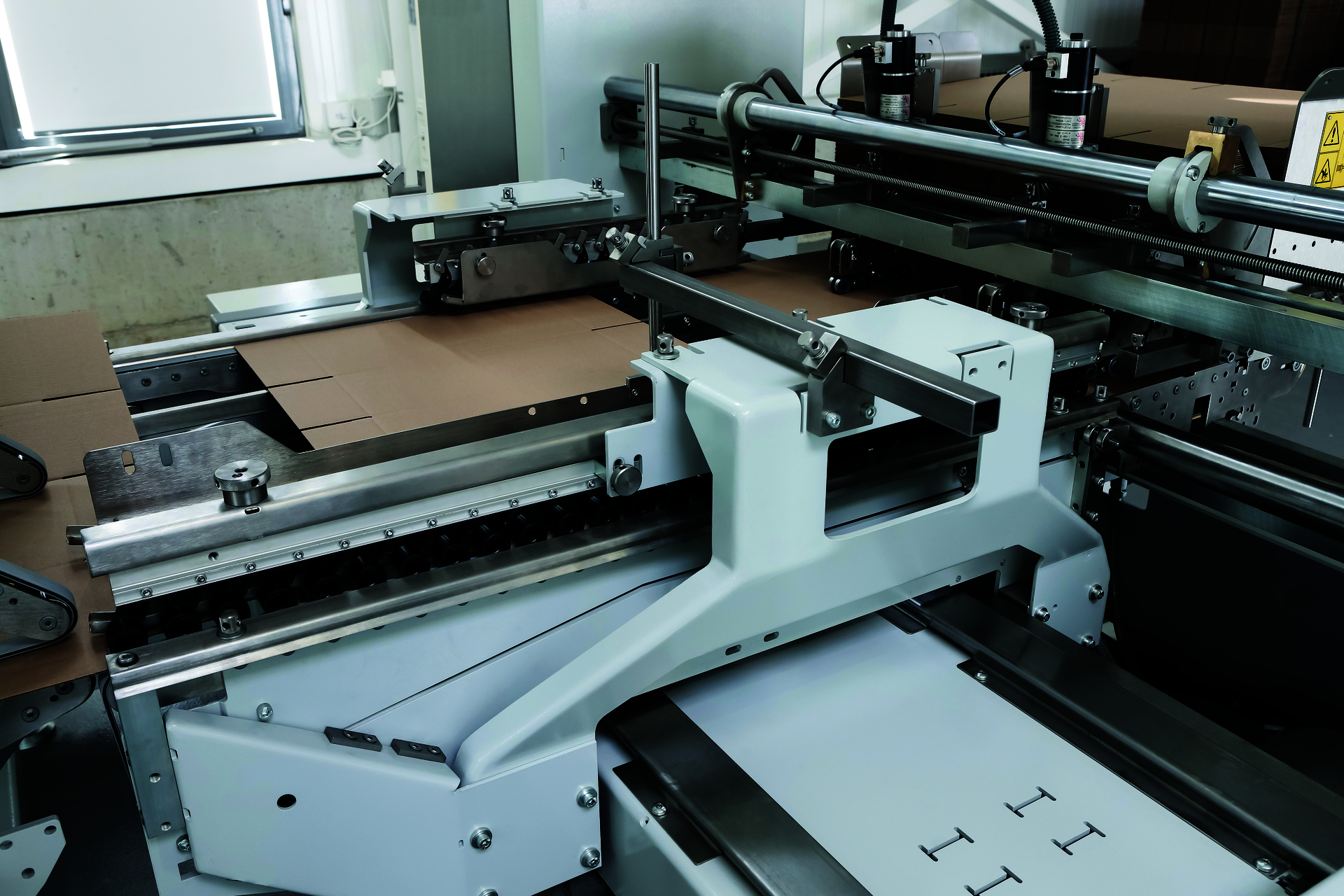

ACCUFEED

• Integrated BOBST blank aligner, ensuring perfect folding quality
• Alignment left or right
• Feeds all types of material
• Sets in 25% of the time of other comparable feeders on the market, considerably shortening makeready times

Prebreaker

• High speed, variable angle prebreaking with extra-long module
• Ensures reliable and precise opening of the finished product
• Lifting device allowing quick and easy set-up
• Extra wide lower belts and driven upper belts for regular blank transport, even for heavy materials

Crash-lock module

• Motorized lifting frames for fast and easy set-ups
• Quick setting, for short makeready and changeover
• Allows a huge range of box variants to be run
• Prebreaks large boxes and provides a location for additional devices

4 & 6-corner devices

• Runs a large range of box types
• High speed and high quality folding with modulated hook trajectory
• Easy setting with electronically controlled rotary hooks
• Tilting frame adjusts to flap size
• CUBE³ controlled, allowing saving and retrieval of settings

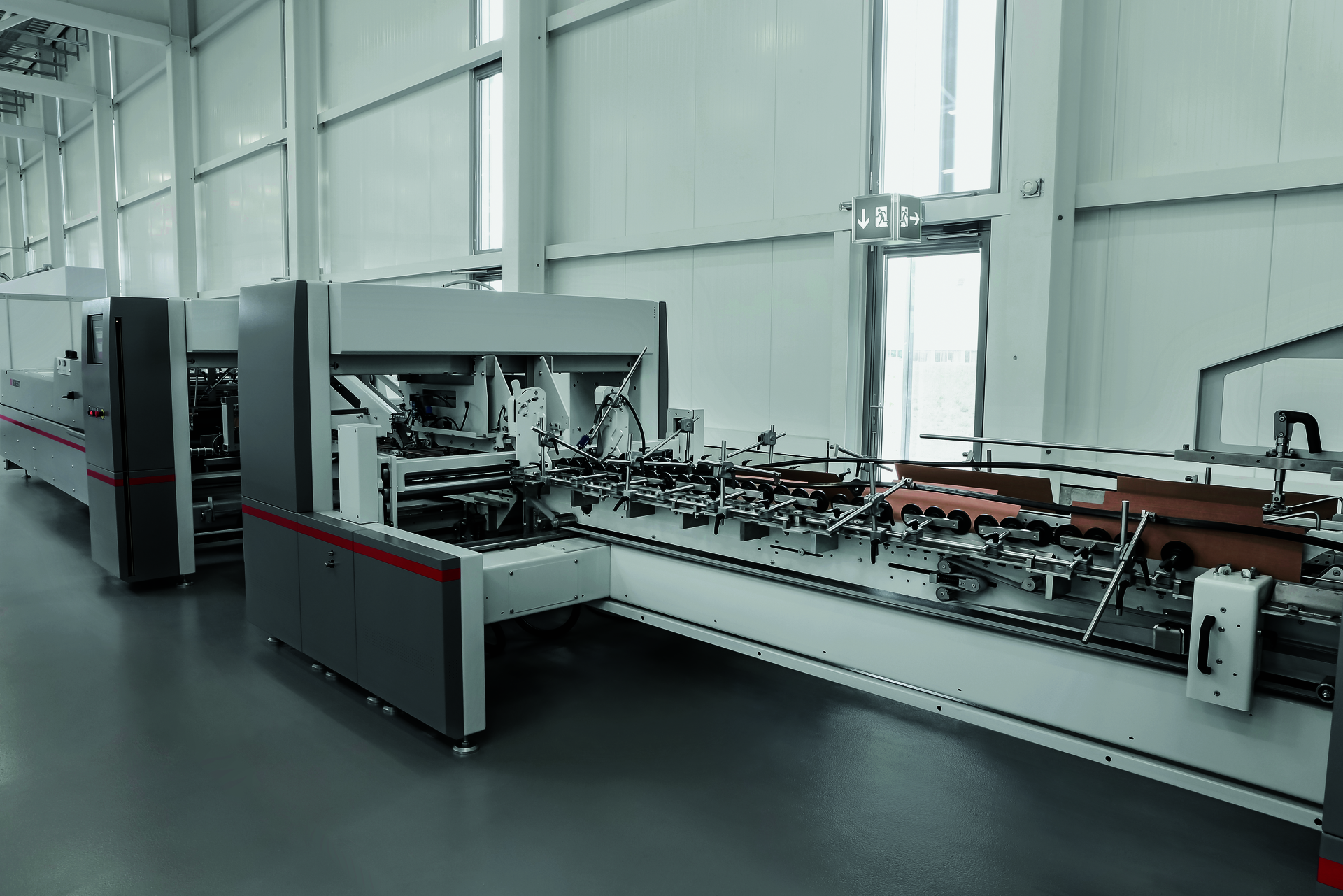

Folding

• Crease relief device for more natural, smooth and precise folding
• Crease control device ensuring a perfect fold
• 5 meter long folding section for perfect gap and reduced fishtailing
• Driven upper belts ensure more consistent transport, especially for heavy blanks

ACCUEJECT XL

• Easily set quality control device, able to eject a single faulty box
• Automatically ejects non- standard boxes up to 35 mm thickness at full running speed
• Ensures high quality production while simultaneously reducing waste and costs

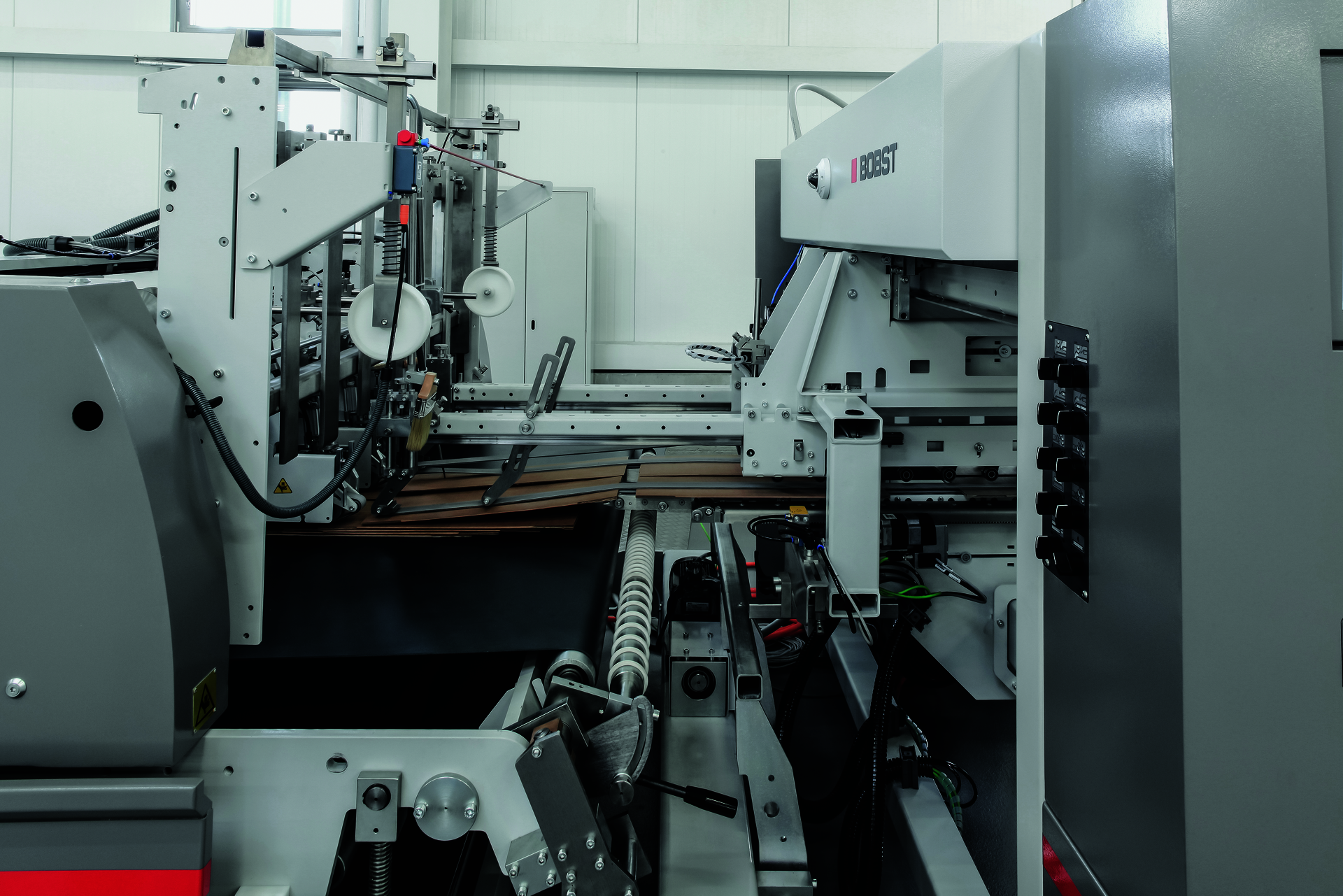

Transfer

• Independent drive for total control of the box stream
• ACCUSQUARE XL for perfect alignment of every box, guaranteeing high standard quality
• Belt tensioning and adjustable height ensure a prefect box stream
• Adjustable transfer conveyors for quicker set-up

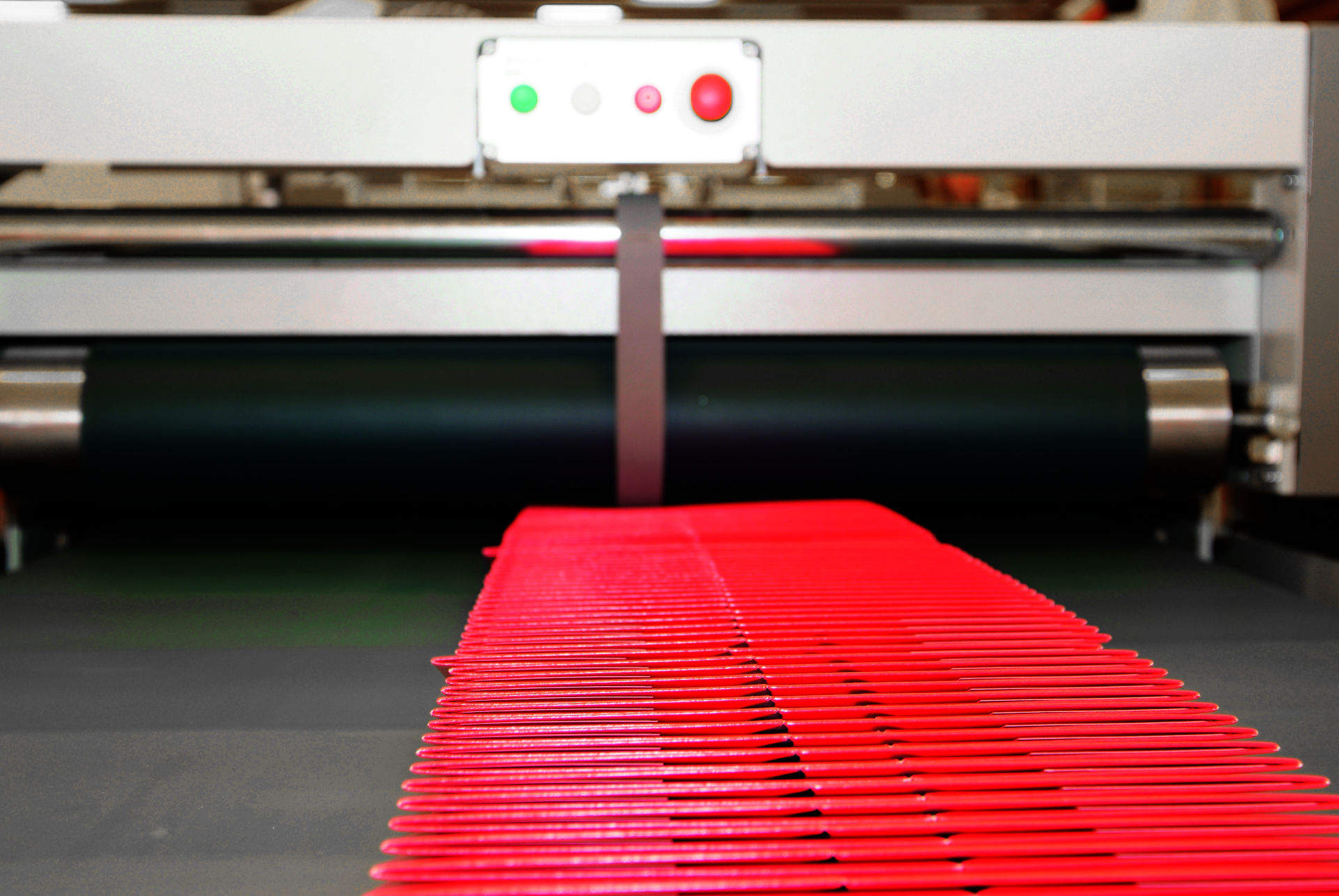

Delivery

• Independent drive for faster changeover
• Box-stream regulator for precise intervals, higher quality and faster running
• Improved glued box quality with automatic apron centering

Ergonomics

• Maximum accessibility for fast set-ups and direct process control
• Easy handling and quick makeready with MATIC setting and remote control
• Complete production overview with LED machine status indication and video monitoring
• Security light barriers for maximum safety

EXPERTFOLD 165 e-commerce

The creativity, productivity and capability of EXPERTFOLD 165 can be further increased with two groundbreaking inline devices: GYROBOX and POLYVACUUM. These modules enable the production of e-commerce and other complex, multipurpose boxes in just one single pass, allowing to produce a wider range of boxes while lowering costs. Create new business opportunites and giving you decisive advantage in the packaging market by increasing the flexibility and efficiency of your folding-gluing production line.

POLYVACUUM

• Module for in-line application of strips, self-adhesive tapes and special folding devices
• Lower vacuum transports for perfect stability of the blanks
• Bespoke upper transports allowing the installation of external application tools

GYROBOX

• Rotate blanks from 0° to 90° in any direction
• Rapidly produces complex designs in a single pass, particularly e-commerce boxes in a single production line
• Allows great diversification and adaptability, increasing efficiency and lowering costs

Productivity and diversification

• Operating speed up to 250 m/min
• No hindrance and no loss of speed when running standard boxes
• High precision, guaranteeing the superb quality of the final product to ensure client satisfaction
• Greater diversification and flexibility for increased competitiveness, creating new business opportunities
