MASTERFOLD 170 | 230 | 300 | 350 - Folder-gluer

Specifications

Processed materials (1)
Carton board max 800 - 2000 g/m2 .049 - .060 in
Corrugated flute type A, B, C, E, F, N, AB, AC, BC, EB, EF
Capability
Speed 20 to 250 m/min 66 to 820 ft/min
Inching speed 20 m/min 65 ft/min
Thickness of folded box max 35 mm 1.35 in

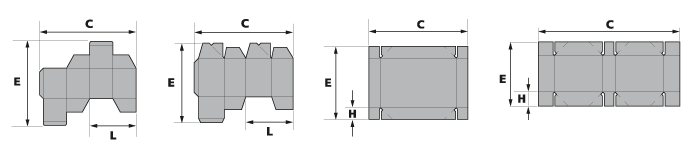

Box sizes
Straight line "C" 290 to 1700 | 2300 | 3000 | 3500 mm 11.42 to 66.93 | 90.55 | 118.11 | 137.80 in
Straight line "E" (2) 160 to 1600 mm 6.30 to 62.99 in
Straight line "L" 140 to 830 | 1130 | 1450 | 1700 mm 5.51 to 32.68 | 44.49 | 57.09 | 66.93 in
Crash-lock bottom "C" 290 to 1700 | 2300 | 3000 | 3500 mm 11.42 to 66.93 | 90.55 | 118.11 | 137.80 in
Crash-lock bottom "F" (2) 160 to 1600 mm 6.30 to 62.99 in
Crash-lock bottom "L" 140 to 830 | 1130 | 1450 | 1700 mm 5.51 to 32.68 | 44.49 | 57.09 | 66.93 in
4-corner "C" 290 to 1700 | 2300 | 3000 | 3500 mm 11.42 to 66.93 | 90.55 | 118.11 | 137.80 in
4-corner "E" (2) 160 to 1600 mm 6.30 to 62.99 in
4-corner "H" 40 to 270 mm 1.57 to 10.63 in
6-corner "C" 400 to 1700 | 2300 | 3000 | 3500 mm 19.68 to 66.93 | 90.55 | 118.11 | 137.80 in
6-corner "E" (2) 160 to 1435 mm 6.30 to 55.60 in
6-corner "H" 50 to 270 mm 1.97 to 10.63 in
Dimensions & weight
Length 19.60 m 64.30 ft
Width 2.40 l 4.20 m 7.87 l 13.78 ft
Height 2.20 m 7.22 ft
Net weight 31.0 t 34.2 US ton

(1) Depending on material properties

(2) 190 mm (7.48 in) with option pressing device HA-020
