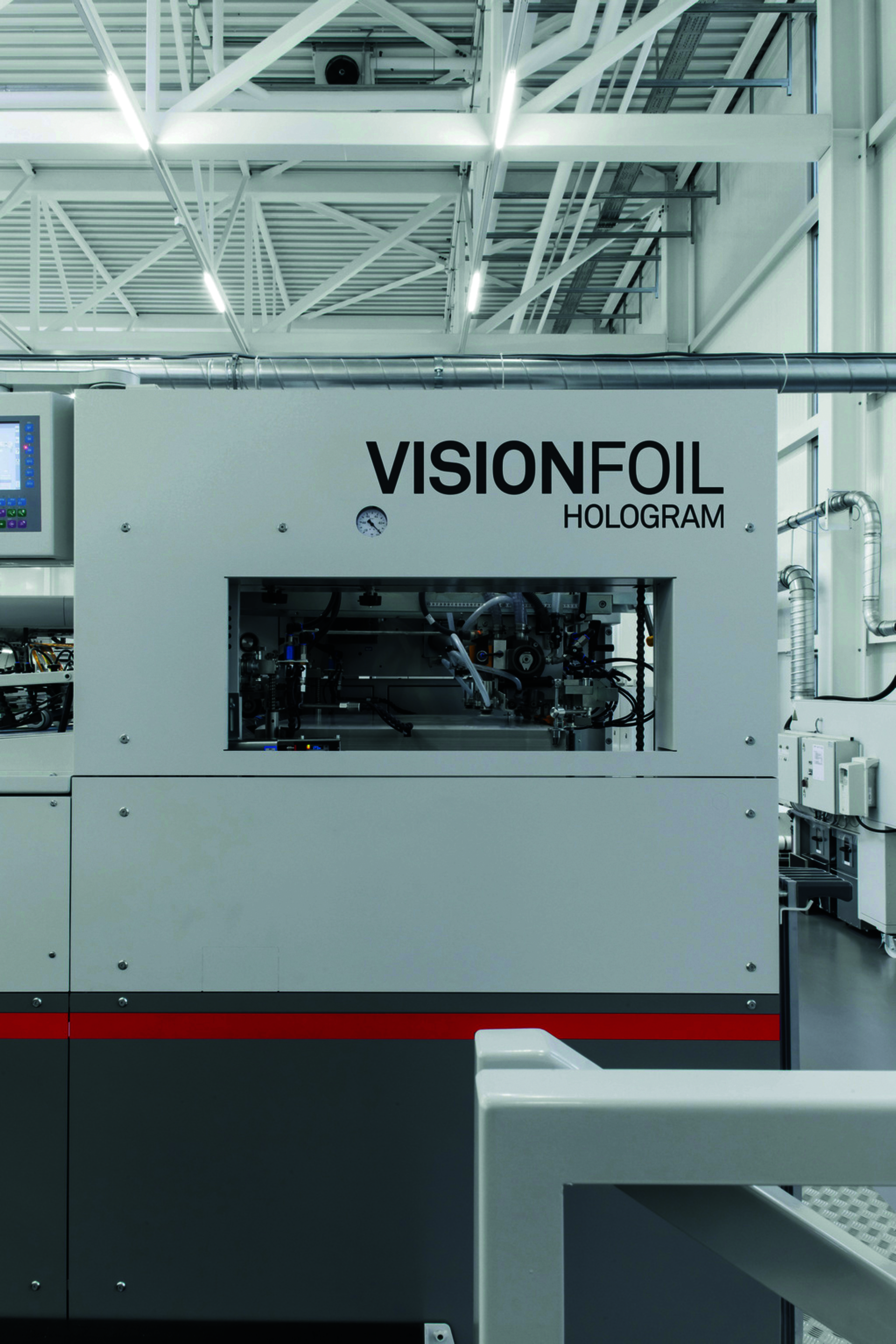

VISIONFOIL 104 H - Hot foil stamper

Internal foil unwinder

  • A short, in-line, foil path means high precision hologram positioning
  • Six, easily accessible, advance shafts driven by independent motors for maximum control
  • Virtually no stops due to foil breaks
  • No adjustments needed during production

Registron ® cameras

  • Recognize all types of holograms (2-D, 2-D/2-D, 3-D, 2D/3D and multiplexed) as well as diffraction and regular foil
  • Precise location of hologram on the foil guarantees perfect placement
  • Handles holograms from 10 to 170 mm in width

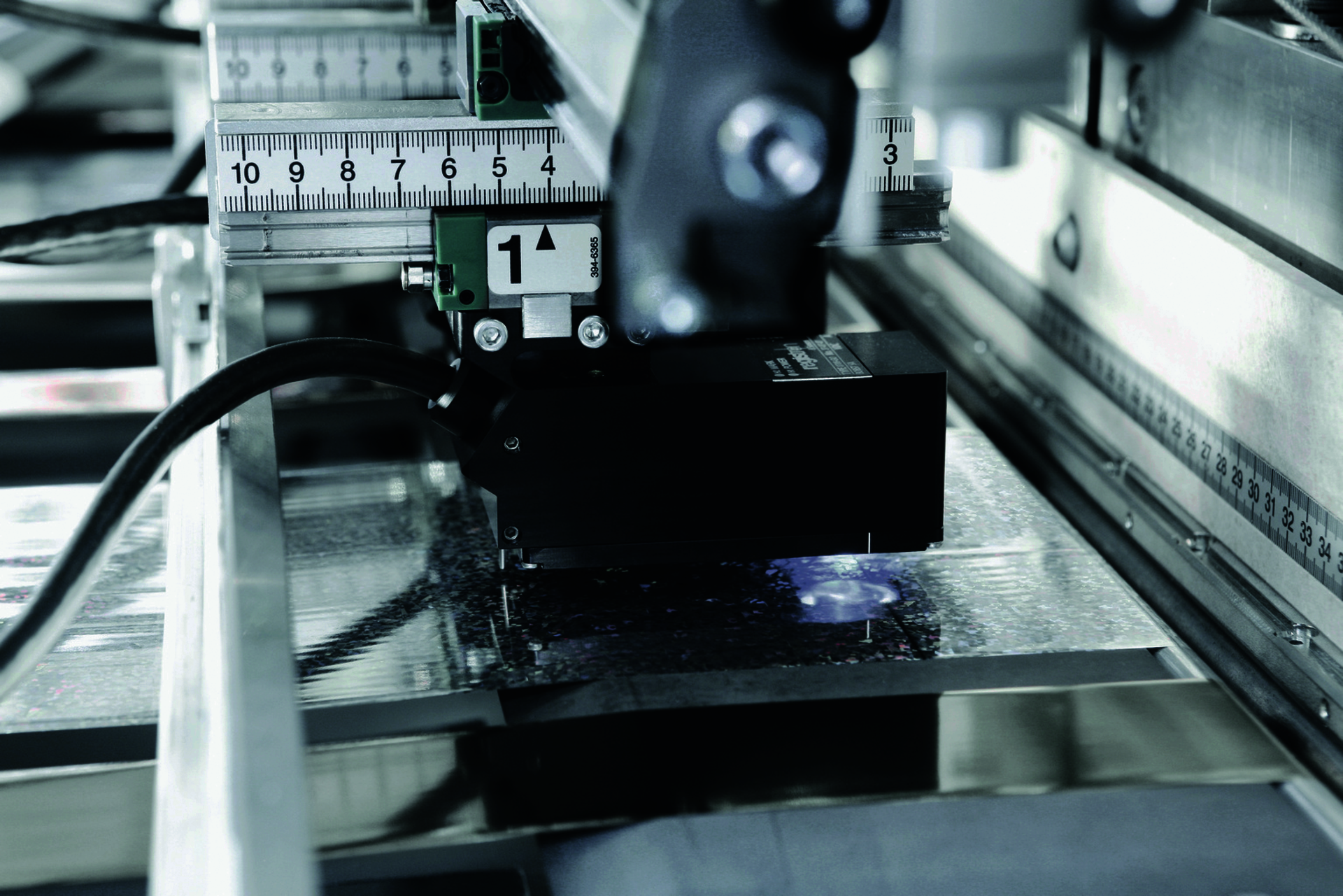

Shim line device

  • Image treatment software detects shim lines
  • Foil advance is calculated to avoid shim lines and allow for accurate register at full running speed
  • Registron ® cameras permit the handling of foils with complex structures such as diffractive foils

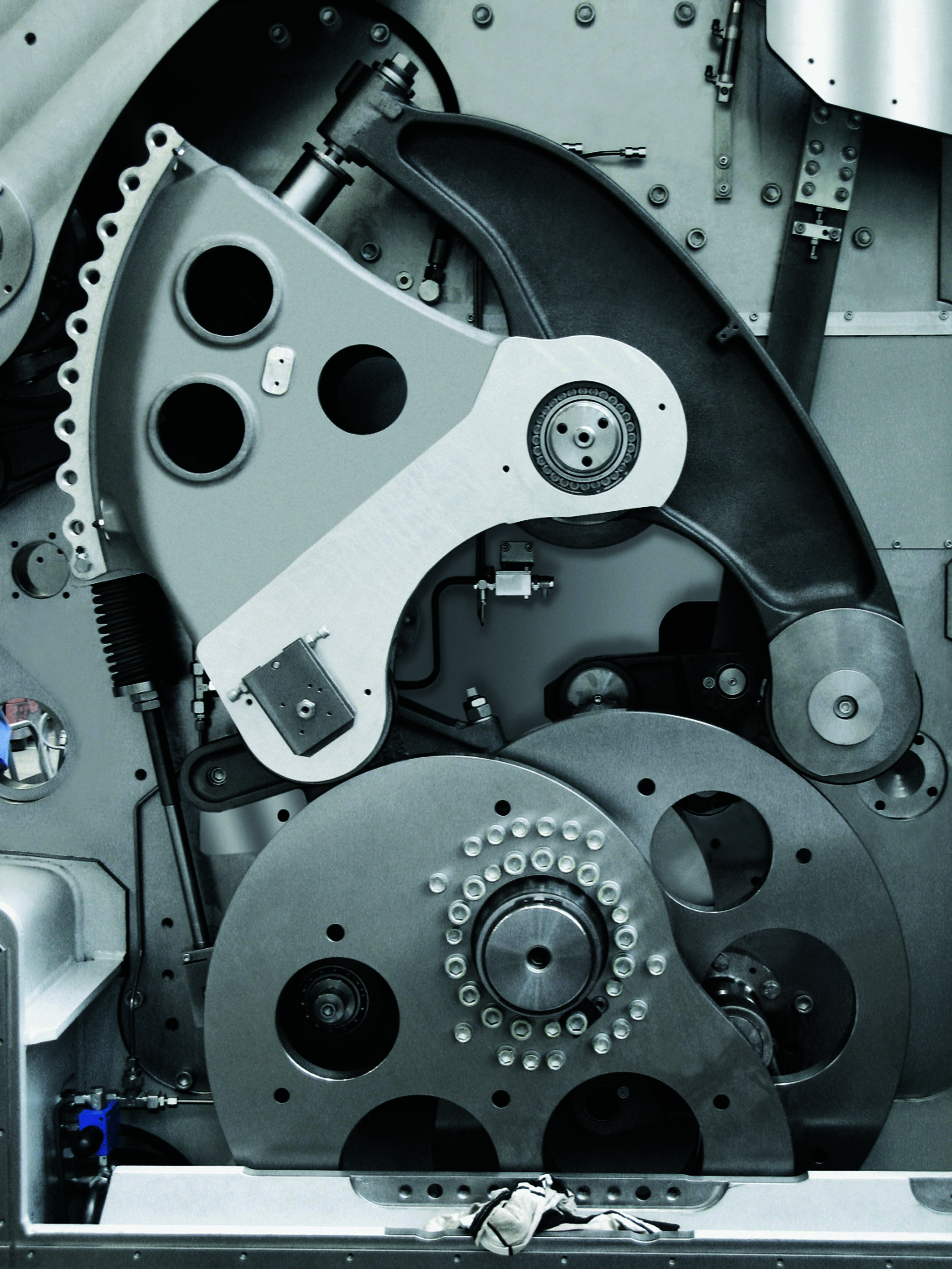

Autoplaten ® concept

  • The most precise and stable stamping force available
  • Double cam gripper bar advance system ensuring extremely smooth sheet transportation
  • Heated upper beam for superb foiling quality
  • Honeycomb chase for precise positioning of dies

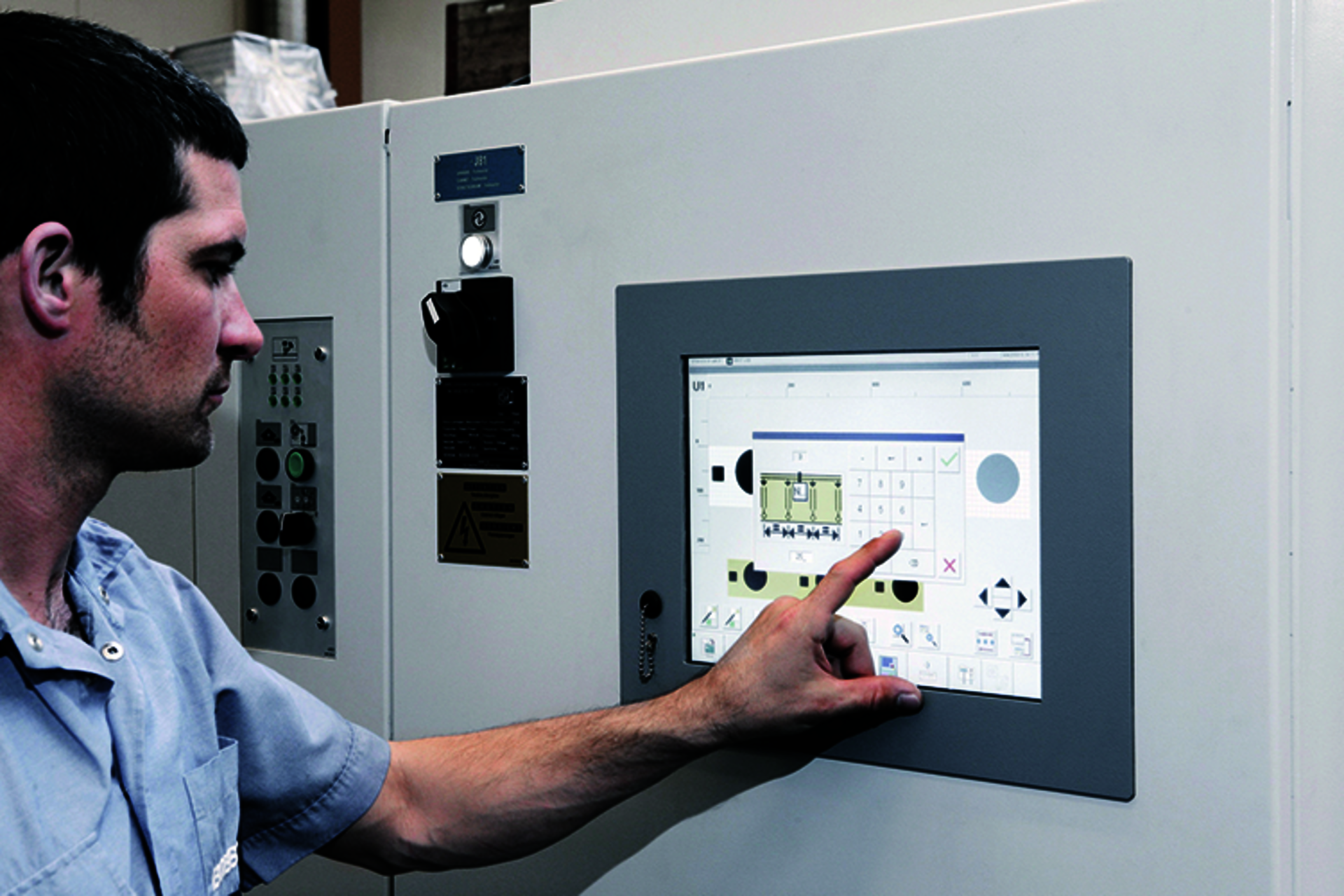

BOBST electronics

  • BOBST CUBE for easy control of machine settings and foil functions
  • Optional MSS (Machine Supervision System) console for effective production data management
  • OACS (Optimal Advance Computing System) for calculating optimal foil advance, ensuring important savings in foil use

Feeder

  • Handles a great variety of materials
  • Honeycomb feeding table, belts and anti-static steel plate guarantee ideal material flow
  • Controllable sheet arrival for perfect synchronization of sheet arrival andreduction of machine stoppages
