FFG 8.20 EXPERTLINE - Flexo folder gluer

Non-stop feeding at rated speed

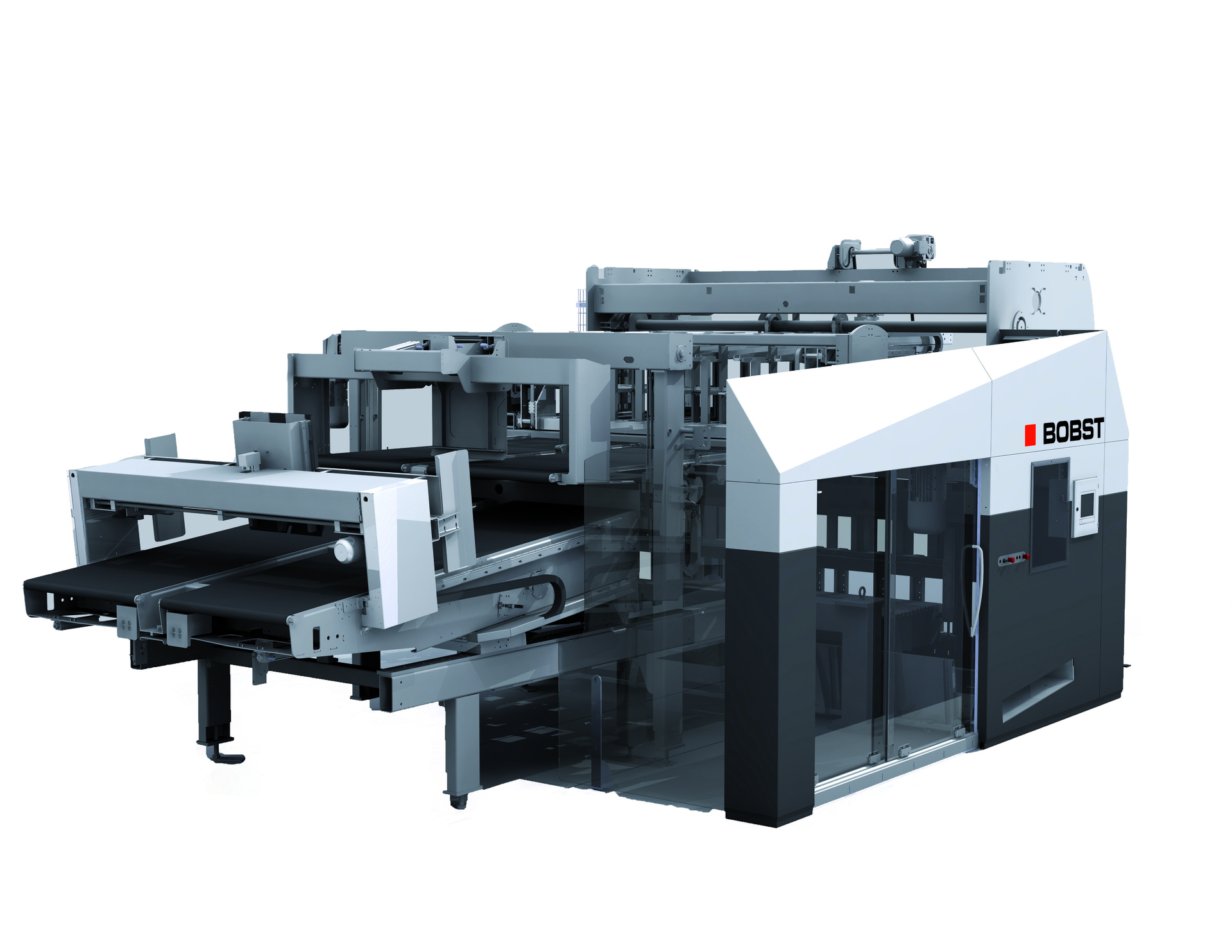

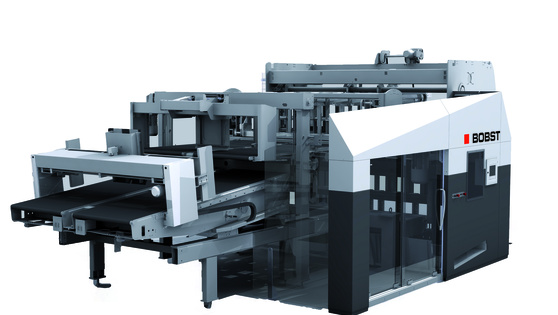

Expertloader

• SOC Sequential Order Change: ultra-quick order change
• Automatic feeding without operator intervention
• Automatic introduction of the first sheet of each order

Accurate feeding at rated speed

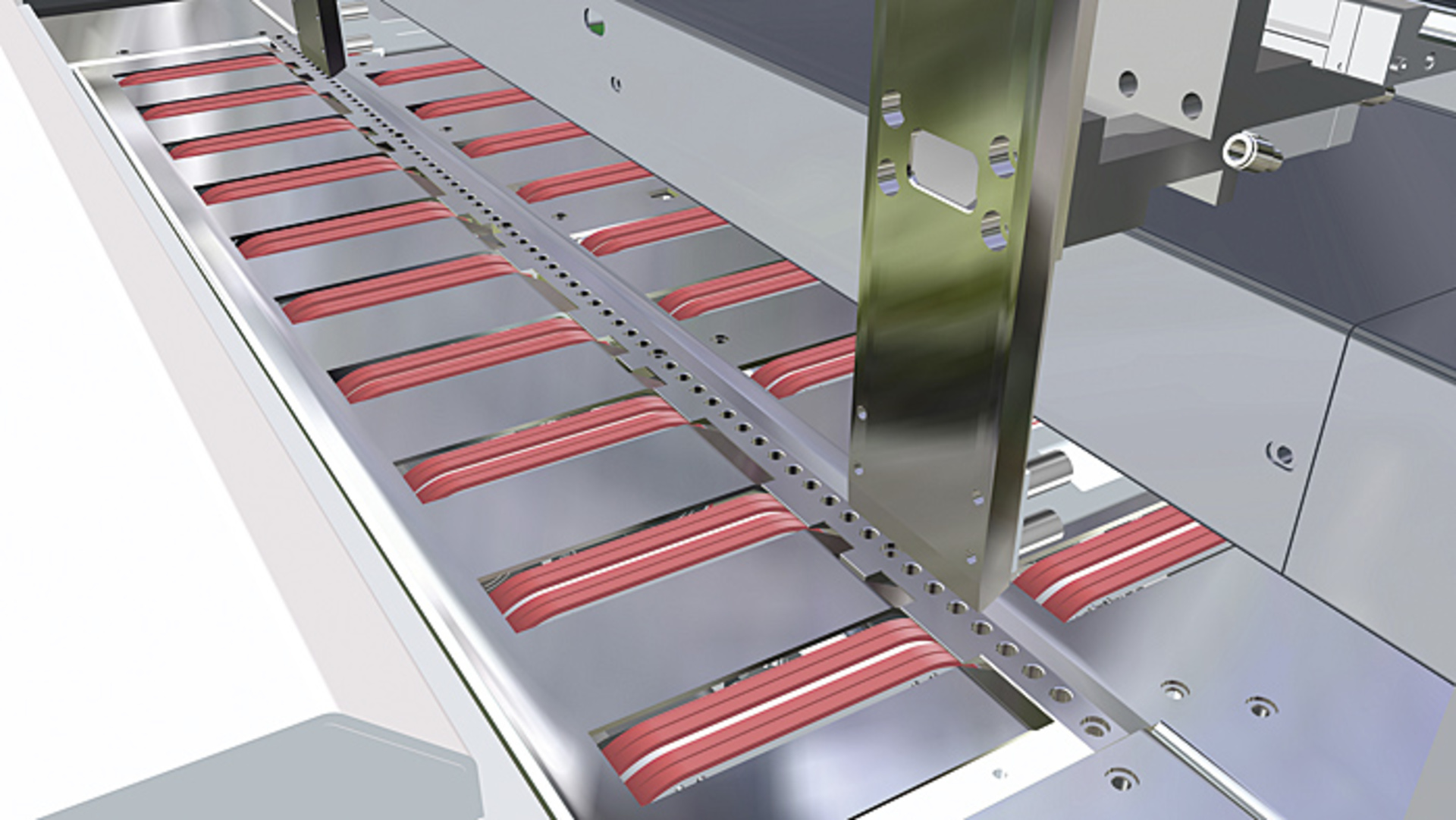

DFB Feeder – Direct Feed Belt

• Lead edge feeder with 2 sets of belts
• No crush feeding
• Ideal for light weight board

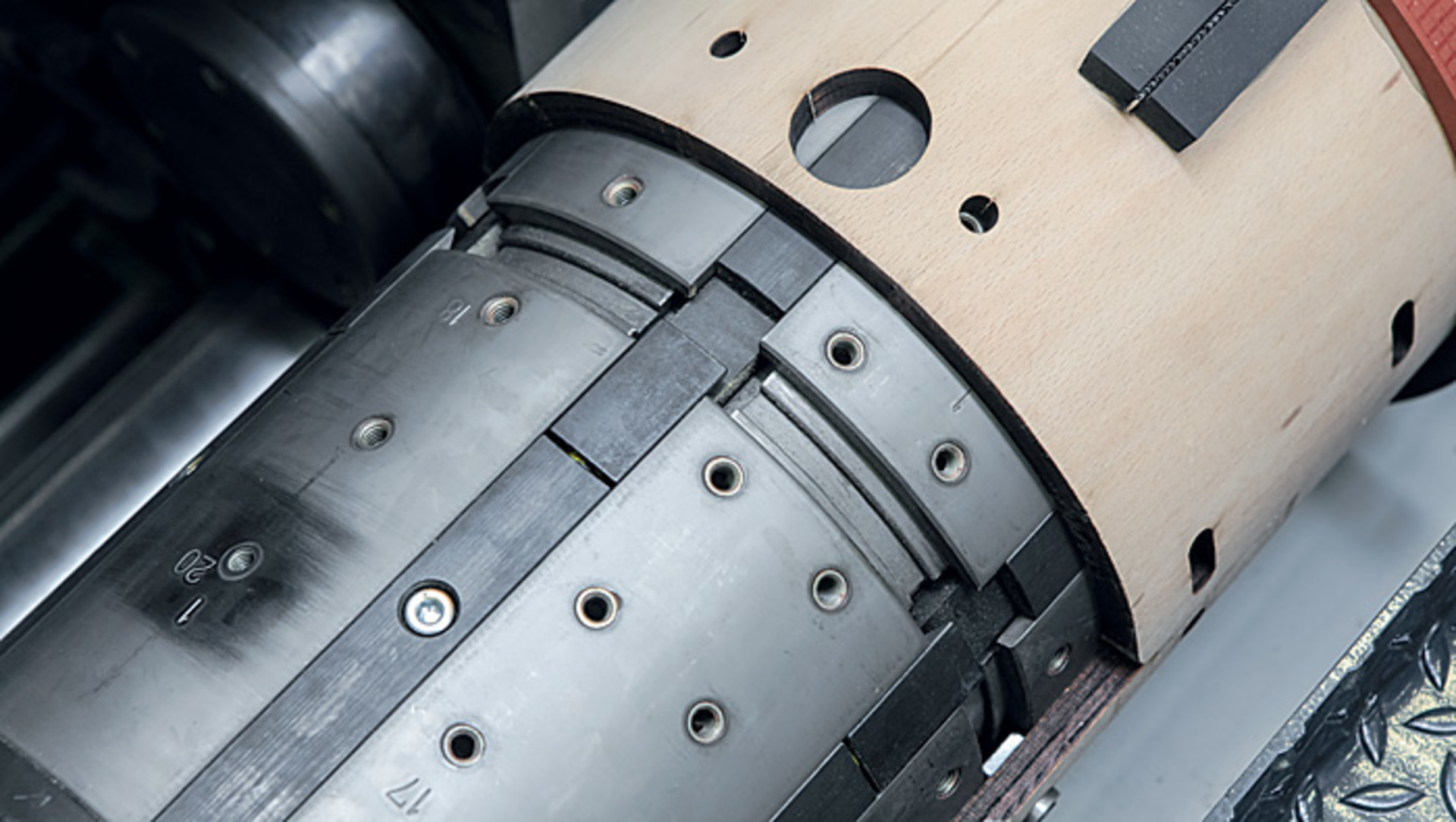

Ultra-quick mounting of the printing dies

Fixed Top Flexo

• Smart Plate Mounting: 3 positions : easy and safe - BOBST patent
• Order change during the run - Rapidset system
• Automatic printing plate tensioning
• Carbon fiber doctor blade chambers

Ultra-quick mounting of the die-cutting tools

Top Rotary Die-Cutter

• Posilock® system
• Variable anvil speed
• Automatic anvil grinding

Highly automated Slotter

Slotter - 4 pairs of shafts

• Prescoring, rear slot, scoring, front slot
• Double scoring profile
• Low maintenance costs

Automated lap cutting with independent drive

• Automated glue lap extension
• Waste free lap cutting
• Set-up through MPC4

Accurate and consistent folding

Folder-Gluer - Multi-T folding section

• Consistent gap by means of motorized gauge rollers
• Progressive folding at high speed with Multi-T belts
• Lower conveying belts with independent motorization on right and left side
• Fluid Folding ®

Perfect counting at rated speed

Top Counter

• Synchronized resquaring of boxes

Easy Drive

MPC4 : Unique man-machine interface

• Full control of your machine, the operator sets the box on the screen
• Step-by-step process monitoring
• Simple and intuitive set-ups
• Color touch screens with graphic mode, no text
• BOBST patent

Increased reliability and improved maintenance

MMPC : Maintenance Management & Productivity Control

• Visualizing and monitoring the state of the machine
• Production data
• Preventive maintenance
• Maintenance guide, online documentation
• Low energy cost per manufactured box and reduced installed power
