FFG 8.20 EXPERTLINE - Flexo folder gluer

Processed materials (1)
Corrugated board		1.2 to 8 mm .04 to .3 in
Corrugated flute type		A, B, C, D, E, AB, AC, BC, EB, EF
Capability
Sheet size width		625 to 2180 mm 24.6 to 85.8 in
Speed		24000 b/h
Printing
Printing size	max	2000 x 760 mm 78.7 x 29.9 in
Print cylinder circumference		900 mm 35.4 in
Number of printing units		2 to 6

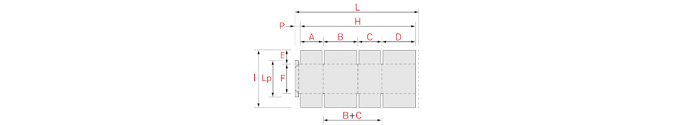

Sheet sizes
Sheet length "L"		625 to 2180 mm 24.6 to 85.8 in
Total length of panels "H"		600 to 2100 mm 23.6 to 82.7 in
Sheet width "l"		250 to 830 mm 9.8 to 32.7 in
Small panel "A=C"		90 to 810 mm 3.5 to 31.9 in
Large panel "B=D"		110 to 850 mm 4.3 to 33.5 in
Half-box "B+C"		300 to 1050 mm 11.8 to 41.3 in
Slotting length "E"	max	300 mm 11.8 in
Box height "F" (2)		75 to 510 mm 3.0 to 20.1 in
Lap width "P"		25 to 45 mm 1.0 to 1.8 in
Unfolded sheet		625 to 1200 mm 24.6 to 47.2 in
Dimensions & weight
Length (2)		29.7 m 97.4 ft
Width (2)		6.6 m 21.7 ft
Height (2)		3.1 m 10.2 ft
Installation
Electrical connected load (2)		222 kVA
Air compressor capacity (2)		131 m3/h

(1) Depending on material properties

(2) Depending on material properties and line configuration
