FFG 924 NT - HG - Flexo folder gluer

Processed materials (1)
Corrugated board		1.2 to 10 mm .04 to .4 in
Corrugated flute type		A, B, C, D, E, F, AB, AC, BC, EB, EF, Double, Single
Capability
Speed		20000 b/h
Printing
Printing size	max	2400 x 860 mm 94.5 x 33.9 in
Print cylinder circumference		1200 mm 47.2 in
Number of printing units	max	9

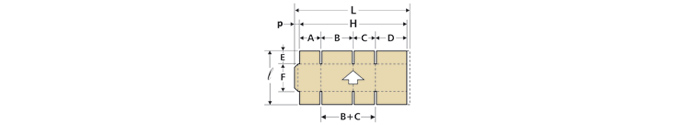

Sheet sizes
Sheet length "L"		600 to 2490 mm 23.7 to 98.0 in
Total length of panels "H"		700 to 2400 mm 27.6 to 94.5 in
Sheet width "l"		255 to 920 mm 10.0 to 36.2 in
Small panel "A=C"		100 to 1080 mm 4.0 to 42.5 in
Large panel "B=D"		120 to 1080 mm 4.8 to 42.5 in
Half-box "B+C"		350 to 1200 mm 13.8 to 47.2 in
Slotting length "E" (2)	max	350 mm 13.8 in
Box height "F" (2)		100 to 800 mm 4.0 to 31.5 in
Lap width "P"	max	45 mm 1.7 in
Unfolded sheet		600 to 1600 mm 23.7 to 63.0 in
Dimensions & weight
Length (2)		29.5 m 96.8 ft
Width (2)		8.4 m 27.6 ft
Height (2)		3.9 m 12.8 ft
Installation
Electrical connected load (2)		330 kVA
Air compressor capacity (2)		232 m3/h

(1) Depending on material properties

(2) Depending on material properties and line configuration
